Model 型号 |

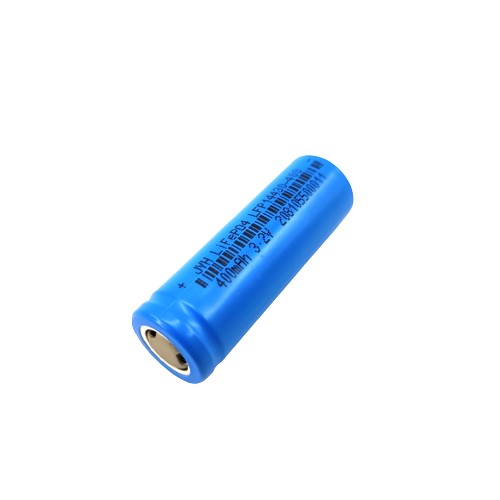

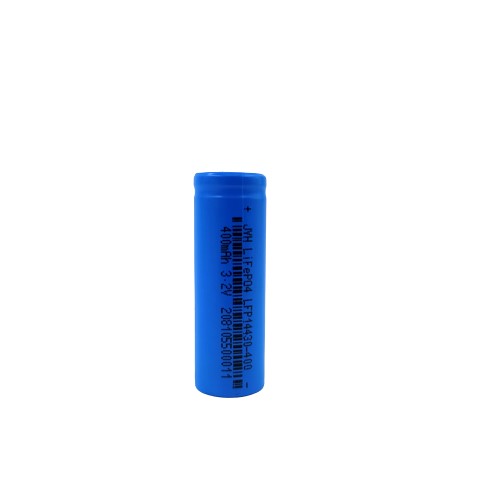

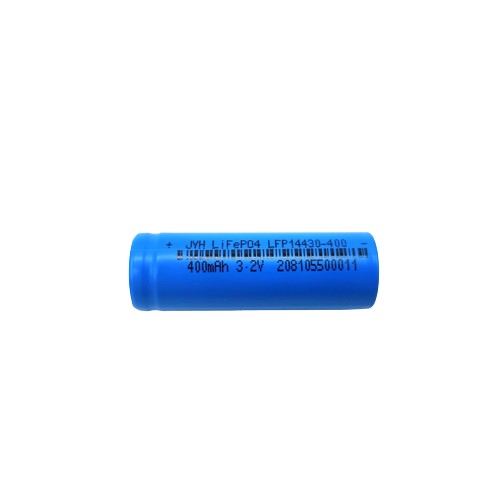

LFP14430-400 |
|
IEC Designation IEC命名 |
IFpR15/44 |
|
Nominal Voltage 标称电压 |
3.2V |
|
Nominal Capacity 标称容量 |
400mAh |
|
Typical Capacity 典型容量 |
420mAh after standard charge and standard discharge 420mAh标准充电和放电条件下 |
|
Minimum Capacity 最低容量 |
380mAh after standard charge and standard discharge 380mAh标准充电和放电条件下 |
|
Standard Charge 标准充电 |
Constant current at 200mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤4mA 200mA恒流充电至3.65V，转恒压3.65V充电至电流≤4mA |
|
Fast Charge 快速充电 |
Constant current at 400mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤4mA 400mA恒流充电至3.65V，转恒压3.65V充电至电流≤4mA |
|
Standard Discharge 标准放电 |
80mA to 2.0V 80mA放电至2.0V |
|
Fast Discharge 快速放电 |
400mA to 2.0V 400mA放电至2.0V |
|
Maximum Continuous Charge Current 最大连续充电电流 |
400mA |
|
Maximum Continuous Discharge Current 最大连续放电电流 |
1200mA |
|
Operating Temperature 操作温度 |
Charge充电 0℃ to 45℃ Discharge放电 -20℃ to 60℃ |
|
Storage Temperature 储存温度 |
<1 year小于1年 -20℃ to 25℃ <3 months小于3个月 -20℃ to 40℃ <30days小于30天 -20℃ to 50℃ |
|
Typical Weight 典型重量 |
16g |
