Model 型号 |

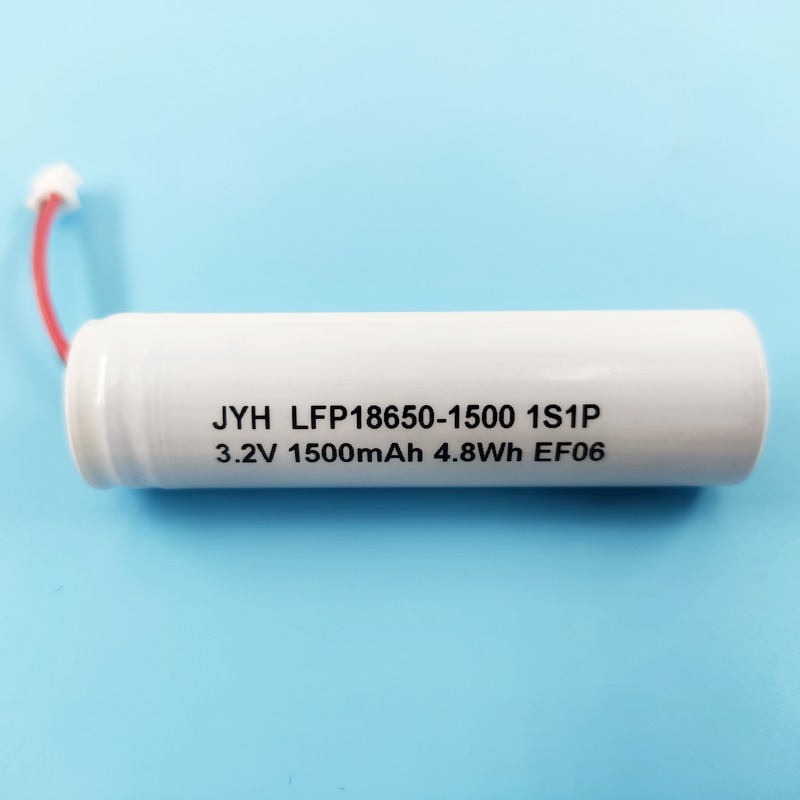

LFP18650-1500 1S1P |
|
IEC Designation IEC命名 |
1IFpR19/66 |
|
Nominal Voltage 标称电压 |
3.2V |
|
Nominal Capacity 标称容量 |
1500mAh |
|
Typical Capacity 典型容量 |
1500mAh after standard charge and standard discharge 1500mAh标准充电和放电条件下 |
|
Minimum Capacity 最低容量 |
1420mAh after standard charge and standard discharge 1420mAh标准充电和放电条件下 |
|
Standard Charge 标准充电 |
Constant current at 300mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤30mA 300mA恒流充电至3.65V，转恒压3.65V充电至电流 ≤30mA |
|
Fast Charge 快速充电 |
Constant current at 750mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤30mA 750mA恒流充电至3.65V，转恒压 3.65V充电至电流 ≤30mA |
|
Standard Discharge 标准放电 |
300mA to 2.5V 300mA放电至2.5V |
|
Fast Discharge 快速放电 |
750mA to 2.5V 750mA放电至2.5V |
|
Maximum Continuous Charge Current 最大连续充电电流 |
750mA |
|
Maximum Continuous Discharge Current 最大连续放电电流 |
1500mA |
|
Operating Temperature 操作温度 |
Charge 0℃ to 45℃ Discharge -20℃ to 60℃ |
|
Storage Temperature 储存温度 |
<1 year小于1年 -20℃ to 25℃ <3 months小于3个月 -20℃ to 40℃ <30days小于30天 -20℃ to 50℃ |
|
Typical Weight 典型重量 |
42g |
|
PCM Electrical Characteristics 保护板电气性能 |
PCM Parameters are adjustable depends on different solutions |
|
Overcharge detection voltage 过充检测电压 |
3.90±0.025V |
|
Over-discharge detection voltage 过放检测电压 |
2.00±0.050V |
|
Overcurrent detection current 过流检测电流 |
3.2-6.5A Cut load, recover after charging 卸除负载, 充电激活 |
|
Short detection condition 短路检测条件 |
Exterior short circuit 外部短路 Cut load, recover after charging 卸除负载, 充电激活 |
