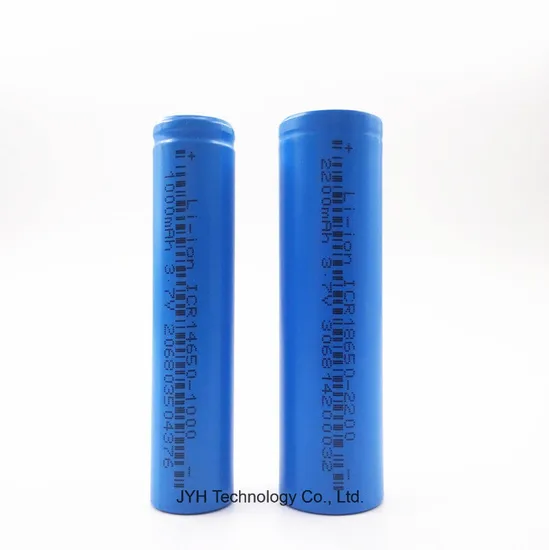

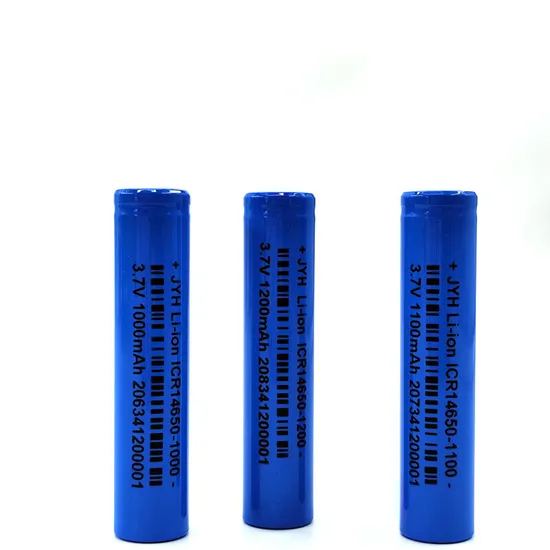

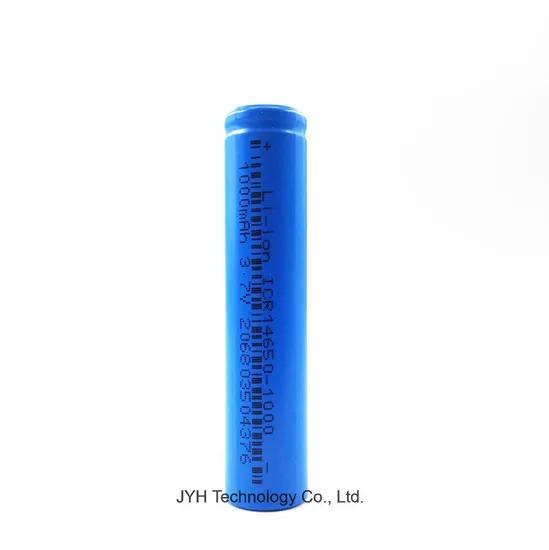

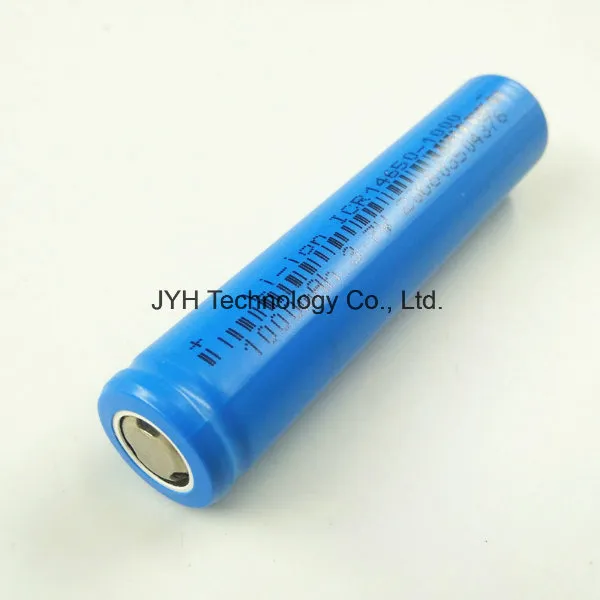

Jiangmen Factory 14650 3.7v Rechargeable Battery for GPS Device
Specification
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1000mAh |
| Typical Capacity | 1030mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 500mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 10mA |
| Fast Charge | Constant current at 1000mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 10mA |
| Standard Discharge | 500mA to 2.75V |
| Fast Discharge | 1000mA to 2.75V |
| Maximum Continuous Charge Current | 1000mA |
| Maximum Continuous Discharge Current | 2000mA |
| Operating Temperature | Charge 0°C to 45°C Discharge -20°C to 60°C |
| Dimensions | Diameter 14.5mm Height 65.5mm |
| Typical Weight | 25g |
Products Features
1, Real capacity
2, Cycle life more than 500 times
3, Rechargeable
4, UL test pass
Application
1, Electric shaver
2, Toothbrush
3, Other personal care products
