3.2V 18650 LiFePO4 Battery for UPS Power

Customization: Available
Type: Lithium-Ion Batteries
Usage: UPS, Electric Power, Lighting, Electric Bicycle
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
LFP18650 Battery UPS 18650 Battery 3.2V 18650 LiFePO4 Battery for UPS Power
Product Description

Basic Info.

Model NO.
LFP18650
Nominal Voltage
3.2V
Discharge Rate
Medium Discharge Rate
Shape
Cylindrical Battery
Electrolyte
Li-ion
Installation
Fixed
Rechargeable
Chargeable
Warranty
1 Year
Certificate
IEC62133, IEC62620, UL1642
PCM IC
Ablic, Ricoh
IEC 61960 Designation
Ifpr19/66
Transport Package
Carton Box
Specification
IFR19/66
Trademark
JYH
Origin
China
HS Code
85076000
Production Capacity
100K PCS/Day

Product Description

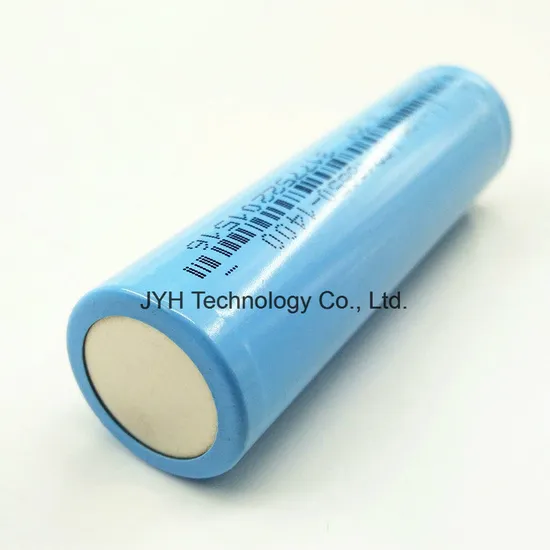

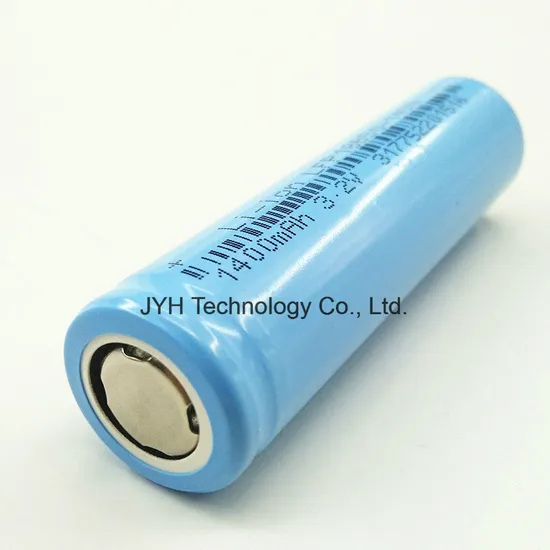

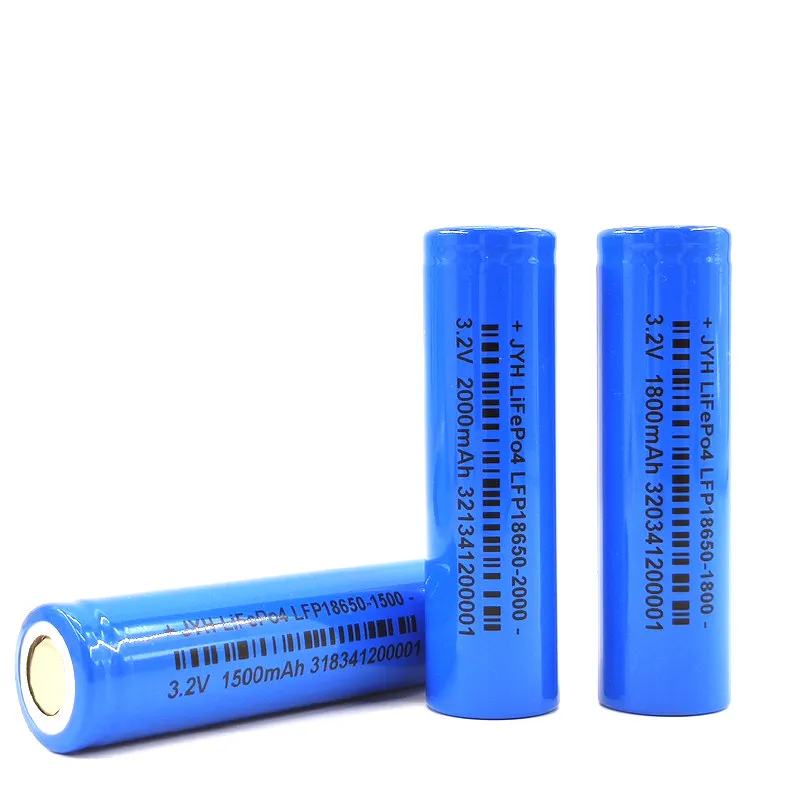

3.2V LFP18650-1500 LiFePO4 1500mAh battery for UPS
Specification
Nominal Voltage 3.2V
Nominal Capacity 1500mAh
Typical Capacity 1530mAh after standard charge and standard discharge
Standard Charge Constant current at 750mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤15mA
Fast Charge Constant current at 1500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤15mA
Standard Discharge 300mA to 2.0V
Fast Discharge 1500mA to 2.0V
Maximum Continuous Charge Current 1500mA
Maximum Continuous Discharge Current 4500mA
Operating Temperature Charge 0°C to 45°C
Discharge -20°C to 60°C
Dimensions Diameter 18.7mm
Height 65.5mm
Typical Weight 42g
3.2V 18650 LiFePO4 Battery for UPS Power
Design Standards:
IEC 62620:2014/AMD1:2023
IEC 62133-2:2017/AMD1:2021
Emergency Luminaires and Lamp controlgear: IEC 60598-2-22:2021, IEC 61347-2-7:2011+A1:2017+A2:2021, UL924

Self-contained emergency luminaires using a rechargeable battery as the emergency safety source shall comply with the requirements of Clause 23 of IEC 61347-2- 7: 2011 and Clause 23 of IEC 61347-2-7: 2011/ AMD2: 2021.

A.7 Lithium iron phosphate (LiFeP04), lithium nickel manganese cobalt oxide (Li(NiCoMn)O2), lithium titanate oxide (LTO) batteries
A.7.1 The cells shall conform to IEC 62620 and IEC 62133-2.
A.7.2 A battery shall conform to the following subclauses of IEC 62133-2:2017.

Battery packs are customized products, which is supposed to combine with cells in different configuration, in order to fit for your product. For any power solution, please feel free to contact us, together we work, the better solution we can achieve.

Scroll down the page or send me email for further discussion
Jack <mfr#jyh-battery. com>

Battery packs are customized products, which is supposed to combine with cells in different configuration, in order to fit for your product. For any power solution, please feel free to contact us, together we work, the better solution we can achieve.

Optional Accessories

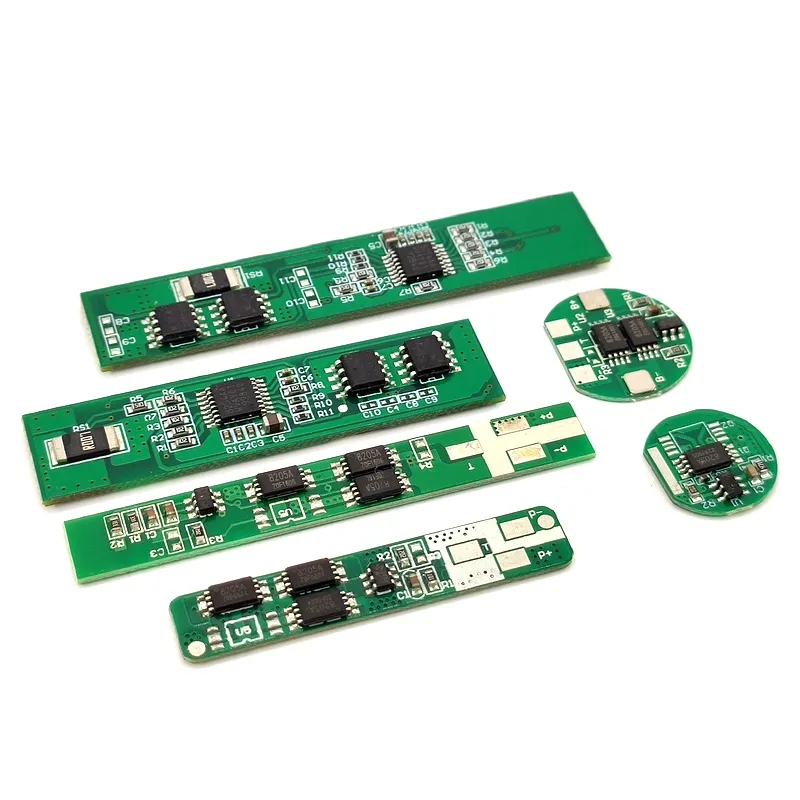

PCM, NTC, PTC, Fuse, Temperature Sensor
Connector, wires, tabs
Communication Protocol
etc.
