| Customization: | Available |
|---|---|
| Type: | Lithium-Ion Battery Pack |
| Connection Mode: | Series and Parallel |
| Quantity: | |
|---|---|

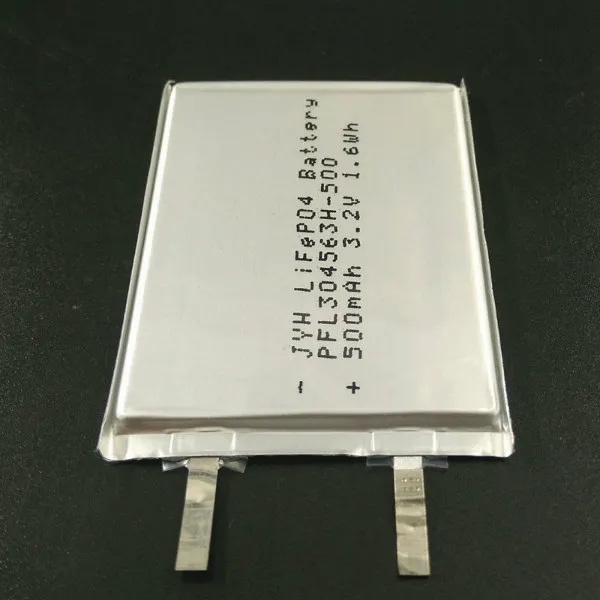

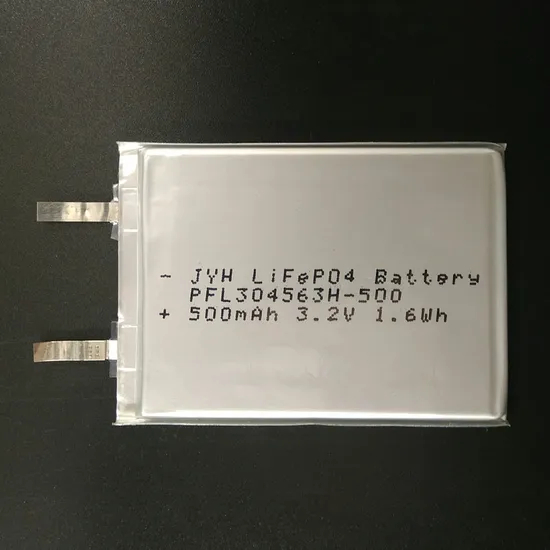

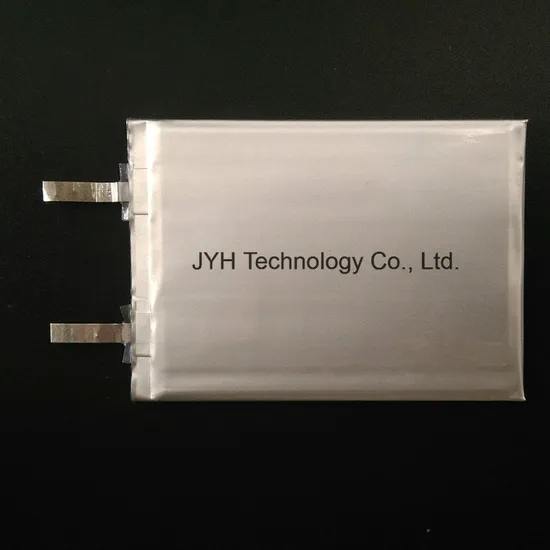

3.2V LiFePO4 Polymer battery for Solar Products
Cell Specification
| Nominal Voltage | 3.2V |
| Nominal Capacity | 500mAh |
| Typical Capacity | 530mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 100mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤ 5mA |
| Fast Charge | Constant current at 500mA charge to 2.0V, then constant voltage at 3.65V charge till current decline to ≤ 5mA |
| Standard Discharge | 100mA to 2.0V |
| Fast Discharge | 500mA to 20V |
| Maximum Continuous Charge Current | 500mA |
| Maximum Continuous Discharge Current | 500mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Cell Dimension | 45*63 |
| Cell Weight | 12g |
Battery Pack Configuration: 1S1P in stick shape (-) or customized

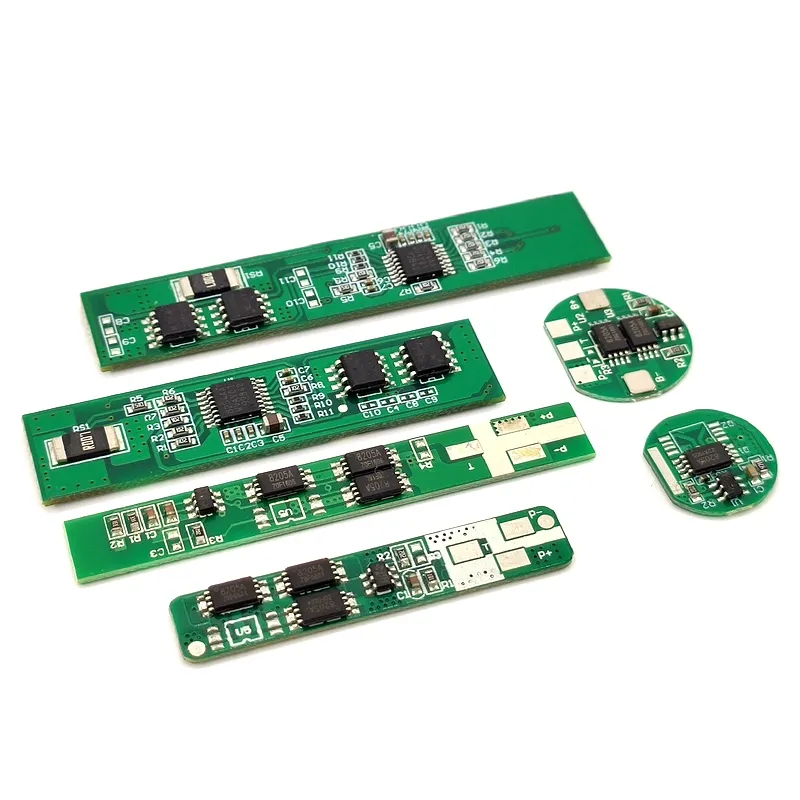

Accessories: Round PCM, cables and connector (Available JST/Molex/DC Jack
Application
1, Solar Blinker
2, Solar marker
3, Car Recorder, etc
Company
JYH Technology is ISO9001 manufacturer of rechargeable batteries. Our major business include:
1. Li-ion/LiFePO4 (polymer and cylindrical), NiMH and NiCd cell manufacturing
2. Custom battery packing with JYH rechargeable cells
3. Custom battery packing with cells like S*nyo, S*msung, L*, etc
Our factory covers an area of 30,000 sqm, and accommodate with over 500 people. Most of our batteries are exported to Europe and North America market directly, CB/UL are available. As 20-year energy solution provider, we are sure we can help you with suitable power solution.
