| Customization: | Available |
|---|---|
| Type: | Li-Polymer Battery |
| Nominal Voltage: | 3.7V |
| Quantity: | |
|---|---|
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1400mAh |
| Typical Capacity | 1440mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 700mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 14mA |
| Fast Charge | Constant current at 1400mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 14mA |
| Standard Discharge | 280mA to 2.75V |
| Fast Discharge | 1400mA to 2.75V |
| Maximum Continuous Charge Current | 1400mA |
| Maximum Continuous Discharge Current | 2800mA |
| Operating Temperature | Charge 0°C to 45°C Discharge -20°C to 60°C |
| Cell Dimension | Thickness: 78mm Width: 34mm Height: 50mm |
| Cell Weight | 18g |
 |  |

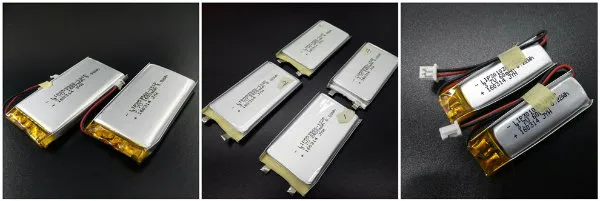

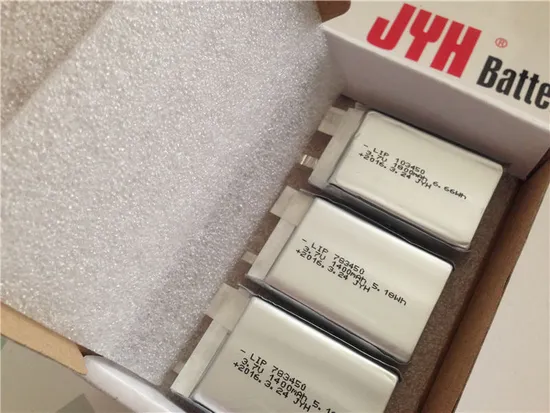

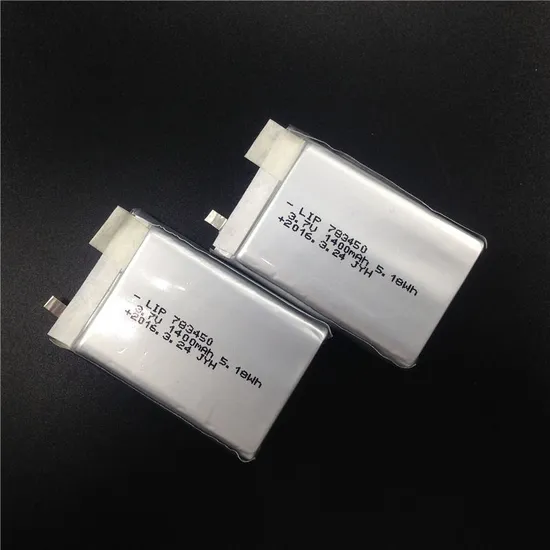

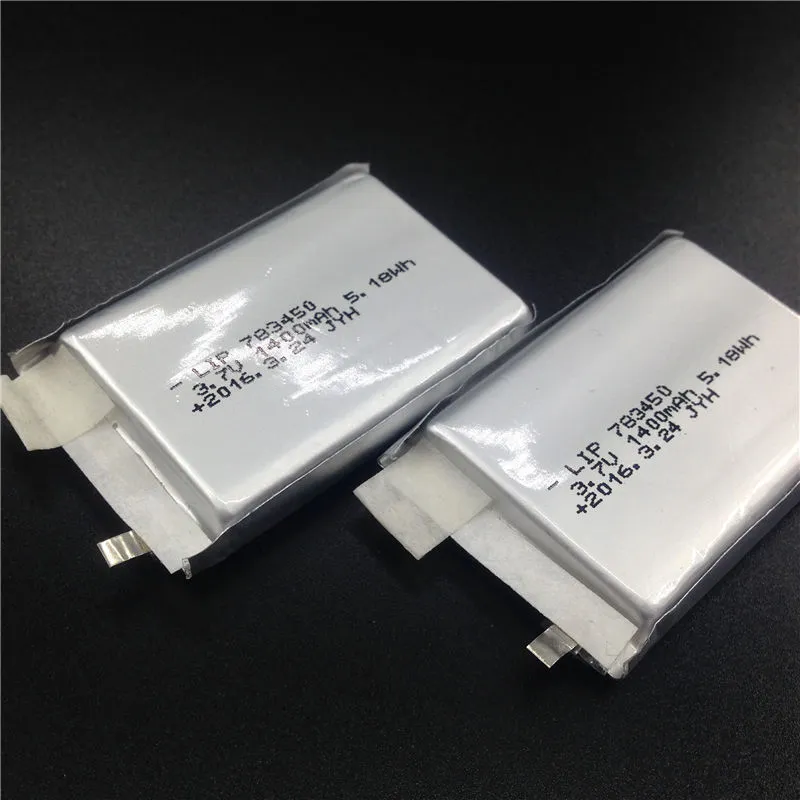

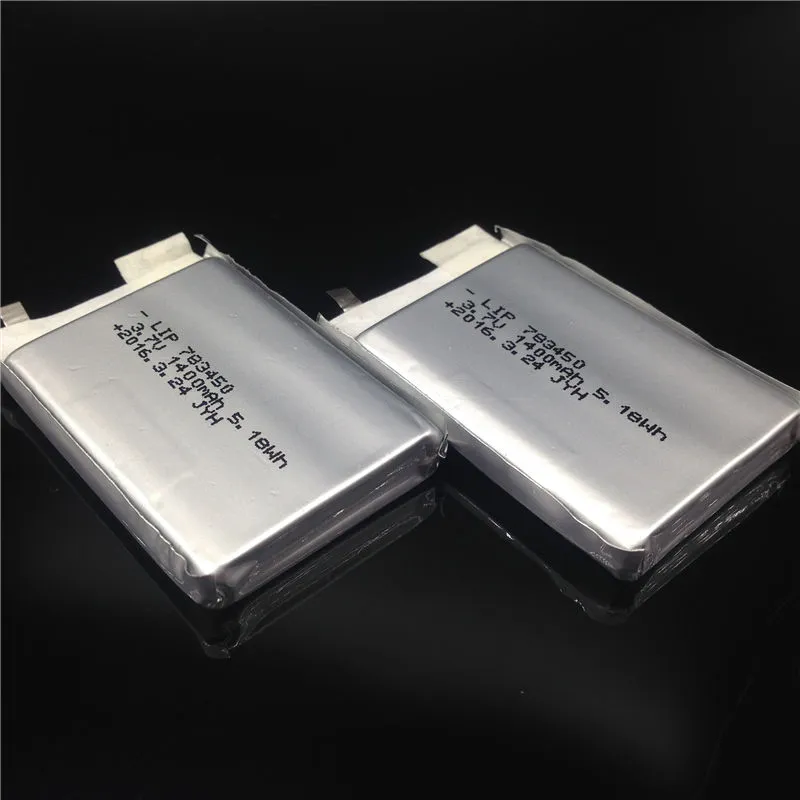

| Lithium polymer battery 783450-1400mAh 3.7V | |
Products advantage
1, Real Capacity
2, IEC Cycle life more than 500 times
3, Cd/Pb/Hg free
4, IEC62133, UL1642 test pass
Application
1, Car Recorder
2, Electric Fan
3, Other personal care products
4, etc. (please consult us for detail)
ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!
Optional Li-ion Packing:
1. Nickel tabs on negative and positive
2. Leads and connectors
3. PCM, NTC
4. Customized series and parallel connect

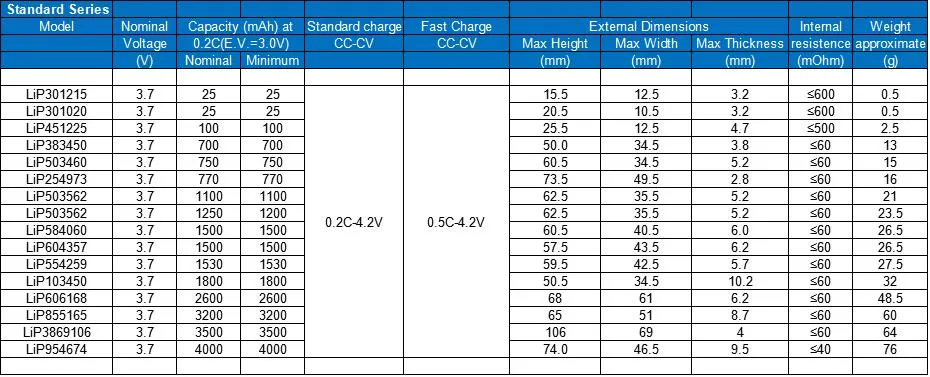

Li-Polymer Battery List:
Our certificates include UL, CB, KC etc. certificates, and UN38.8/MSDS/ROHS report.

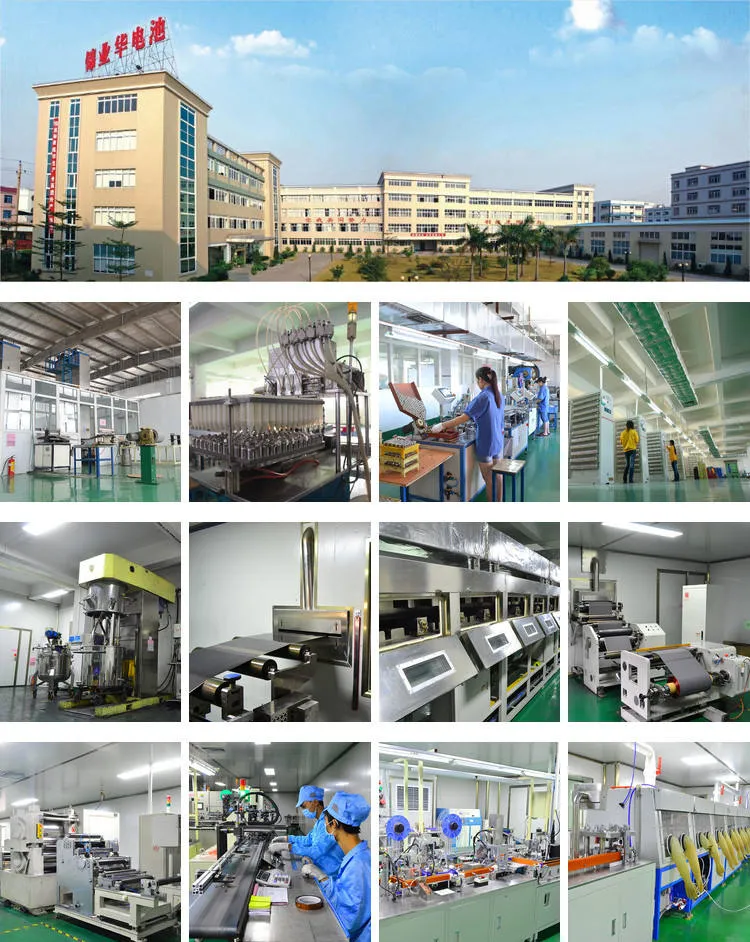

Our major business include:
1. Li-ion/LiFePO4 (polymer and cylindrical), NiMH and NiCd cell manufacturing
2. Custom battery packing with JYH rechargeable cells
3. Custom battery packing with cells like Sanyo, Samsung, LG, etc.
