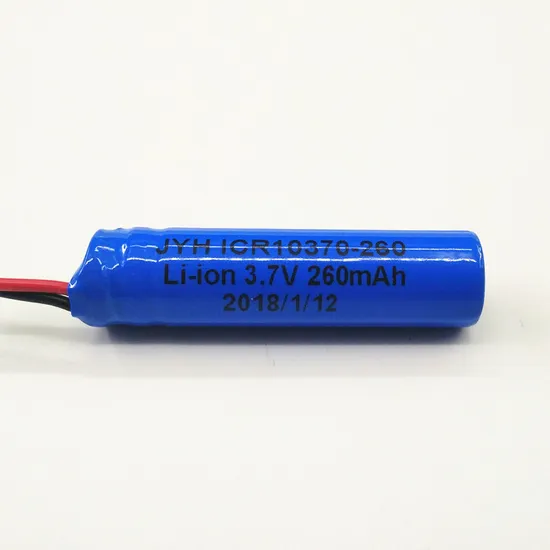

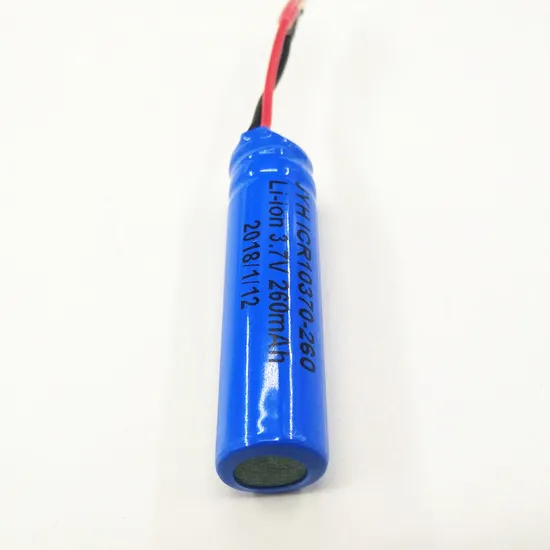

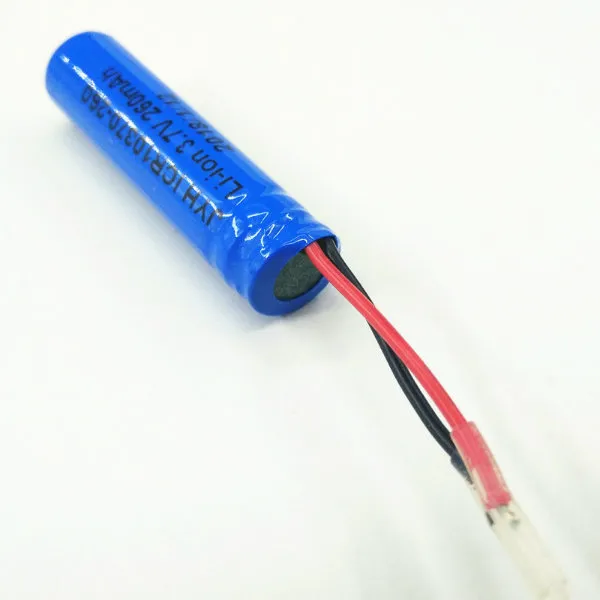

3.7V 10370 260mAh Rechargeable lithium ion Battery Specification | Nominal Voltage | 3.7V |
| Nominal Capacity | 260mAh |
| Typical Capacity | 300mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 130mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 2.6mA |
| Fast Charge | Constant current at 260mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 2.6mA |
| Standard Discharge | 52mA to 2.75V |
| Fast Discharge | 52mA to 2.75V |
| Maximum Continuous Charge Current | 260mA |
| Maximum Continuous Discharge Current | 520mA |
| Operating Temperature | Charge 0°C to 45°C
Discharge -20°C to 60°C |
| Dimensions | Diameter 10.5mm
Height 36-37.0mm |
| Typical Weight | 9g |
Products advantage
1, Real capacity
2, Cycle life more than 500 times
3, Rechargeable
4, UL test pass
Application
1, Electric shaver
2, Toothbrush
3, Other personal care products Battery packs are customized products, which is supposed to combine with cells in different configuration, in order to fit for your product. For any power solution, please feel free to contact us, together we work, the better solution we can achieve.
Scroll down the page or send me email for further discussion Jack
SALES5#JYH-BATTERY. COM
Application 1, LED
2, Electric Fan
3, Other personal care products
ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!
Optional Li-ion Packing:
1. Nickel tabs on negative and positive
2. Leads and connectors

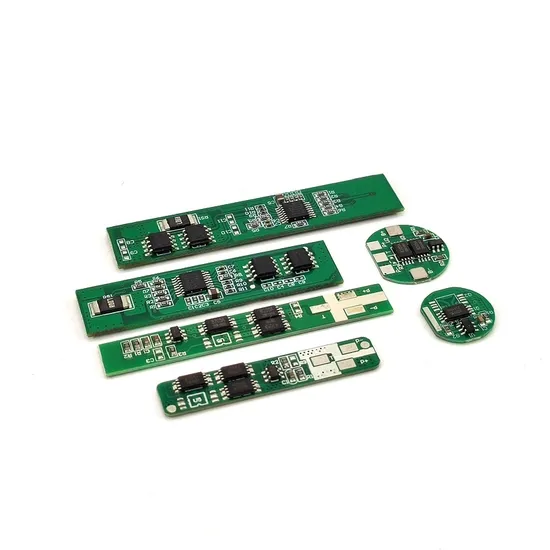

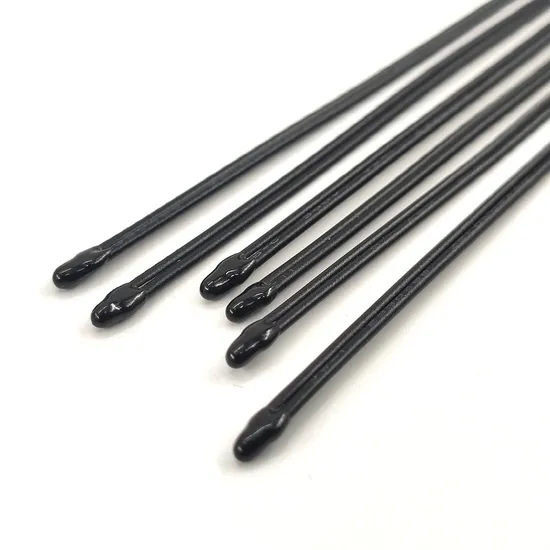

3. PCM, NTC
4. Customized series and parallel connection
5. etc
Company JYH Technology is ISO9001 manufacturer of rechargeable batteries. Our major business include:
1. Li-ion/LiFePO4 (polymer and cylindrical), NiMH and NiCd cell manufacturing
2. Custom battery packing with JYH rechargeable cells
3. Custom battery packing with cells like S*nyo, S*msung, L*, etc Our factory covers an area of 20,000 sqm, and accommodate with over 300 people. Most of our batteries are exported to Europe and North America market directly, CB, UL certificated for most models. As 20-year energy solution provider, we are sure we can help you with suitable power solution.
