| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | NCM |
| Quantity: | |
|---|---|

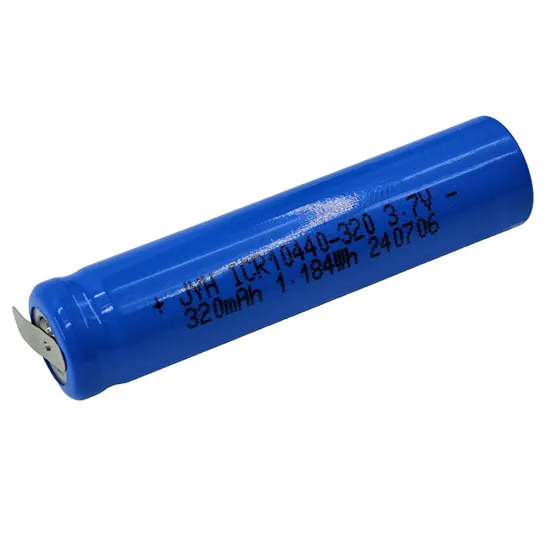

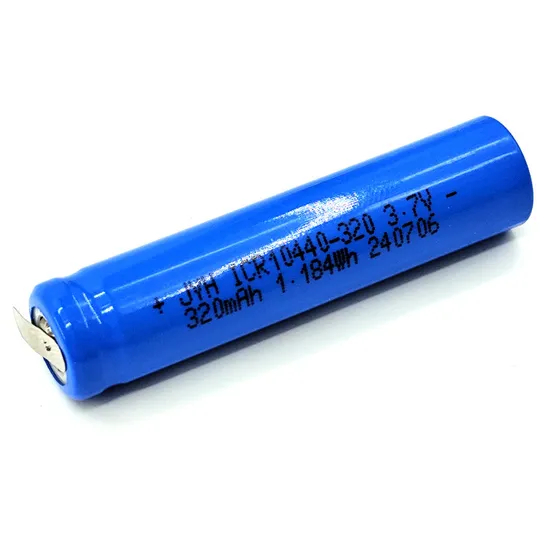

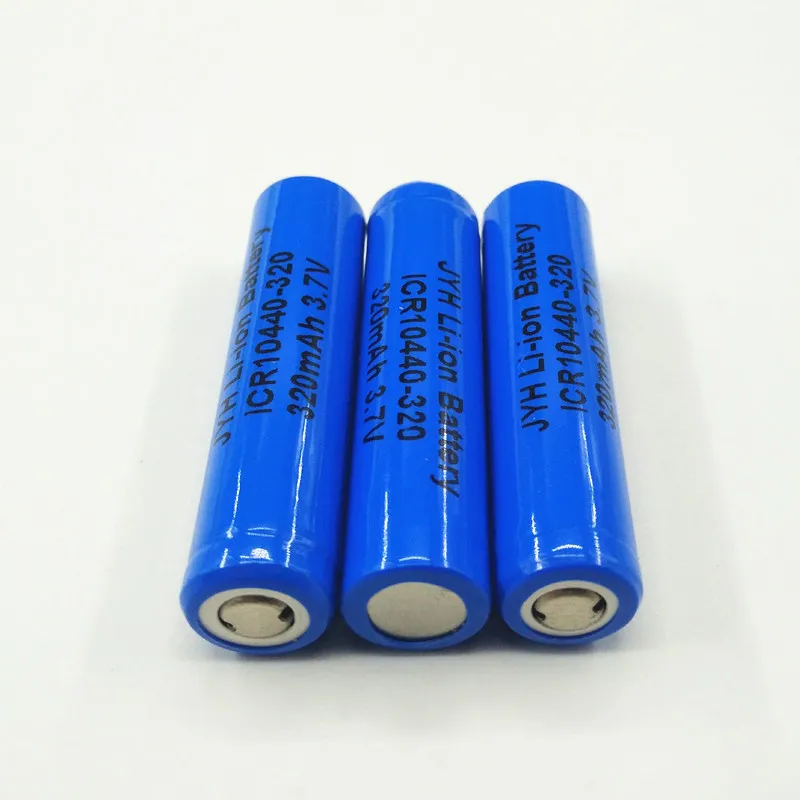

| Model Name | ICR10440-320 |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 320mAh |
| Typical Capacity | 335mAh after standard charge and standard discharge |
| Minimum Capacity | 305mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 100mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤2mA |
| Fast Charge | Constant current at 320mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤3.2mA |
| Standard Discharge | 64mA to 2.0V |
| Fast Discharge | 320mA to 2.0V |
| Maximum Continuous Charge Current | 64mA (0ºC to 10ºC) 160mA (10ºC to 20ºC) 320 mA (20ºC to 45ºC) |
| Maximum Continuous Discharge Current | 640mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Storage Temperature | <1 year -20ºC to 25ºC <3 months -20ºC to 40ºC <30days -20ºC to 50ºC |
| Typical Weight | 9g |
