| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | Sodium |
| Quantity: | |
|---|---|
Outdoor lighting, safety device; high latitude areas; freezor, etc
Battery Specification:

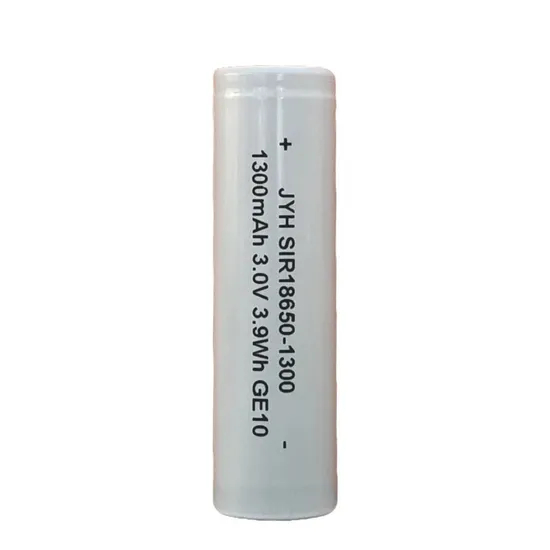

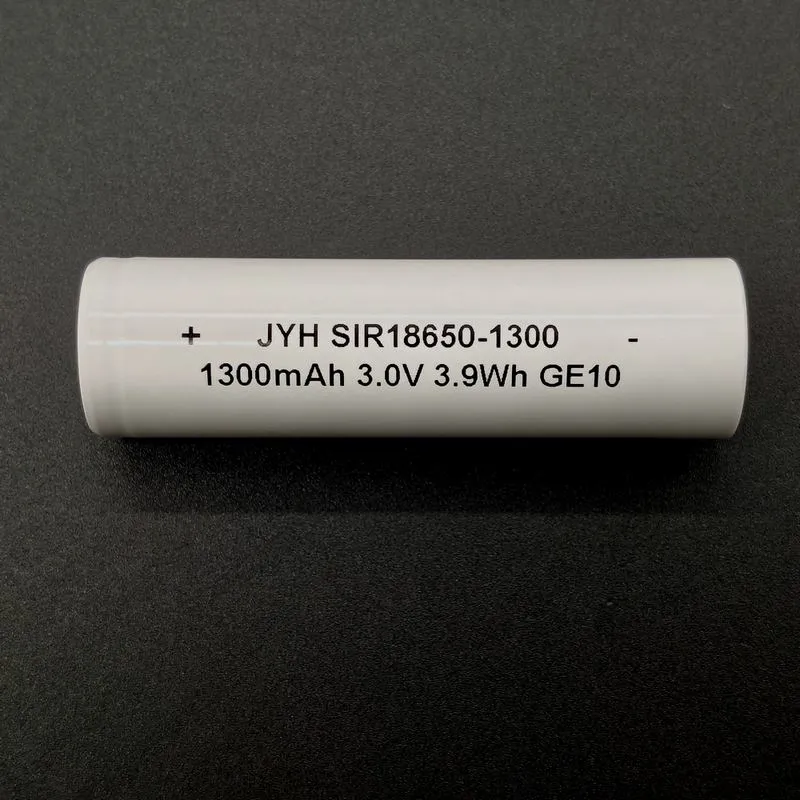

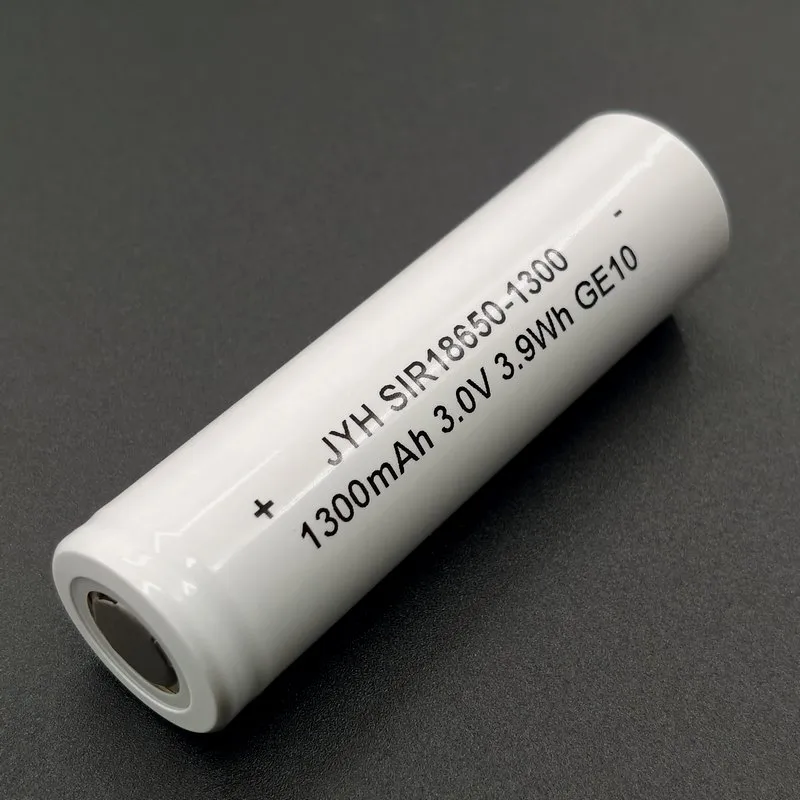

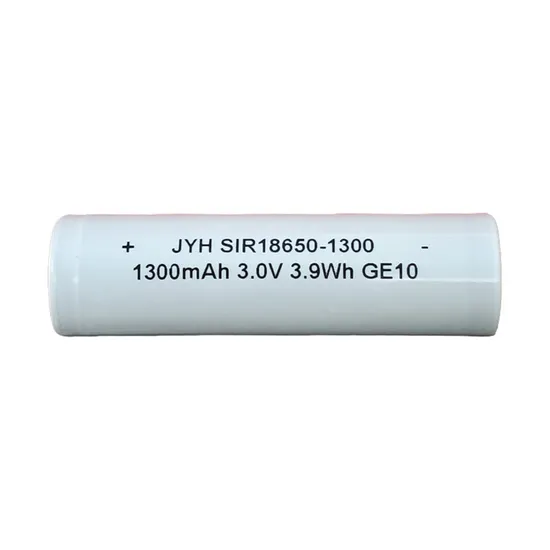

| Model | SIR18650-1300 |
| IEC Designation | IXR19/66 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 1300mAh |
| Typical Capacity | 1340mAh after standard charge and standard discharge |
| Minimum Capacity | 1250mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 650mA charge to 3.95V, then constant voltage at 3.95V charge till current decline to ≤26mA |
| Fast Charge | Constant current at 1300mA charge to 3.95V, then constant voltage at 3.95V charge till current decline to ≤26mA |
| Standard Discharge | 260mA to 1.5V |
| Fast Discharge | 1300mA to 1.5V |
| Maximum Continuous Charge Current/Voltage | 130mA to 3.65V (-10ºC to 0ºC) 650mA to 3.95V (0ºC to 15ºC) 1300mA to 3.95V (15ºC to 45ºC) 650mA to 3.95V (45ºC to 55ºC) |
| Maximum Continuous Discharge Current | 3900mA |
| Operating Temperature | Charge -10ºC to 55ºC Discharge -40ºC to 60ºC |
| Storage Temperature | <1 year -20ºC to 25ºC <3 months -20ºC to 40ºC <30days -20ºC to 50ºC |
| Typical Weight | 37g |
