SIR18650-1300
JYH

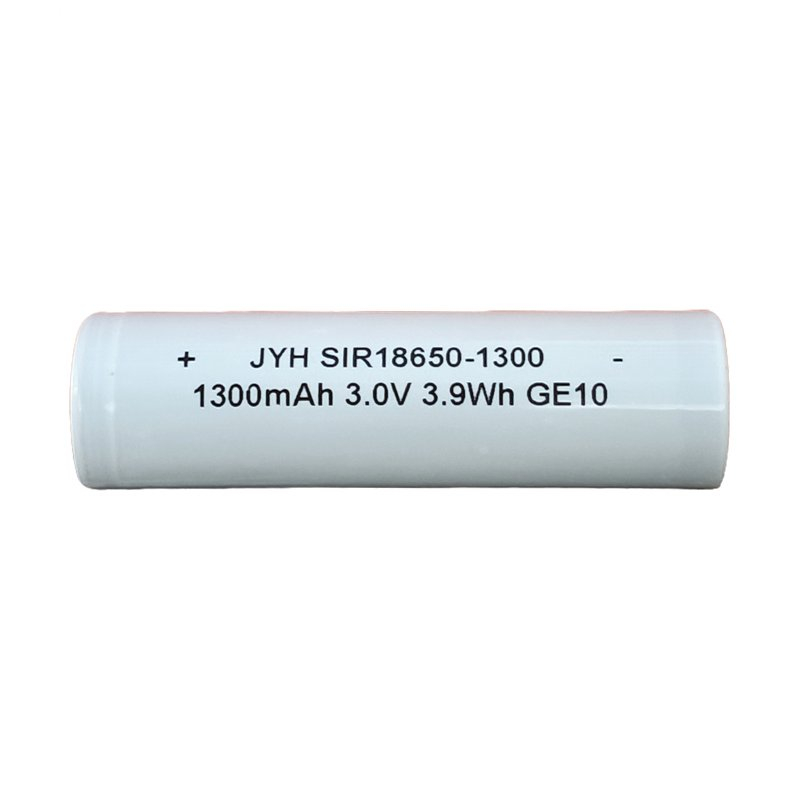

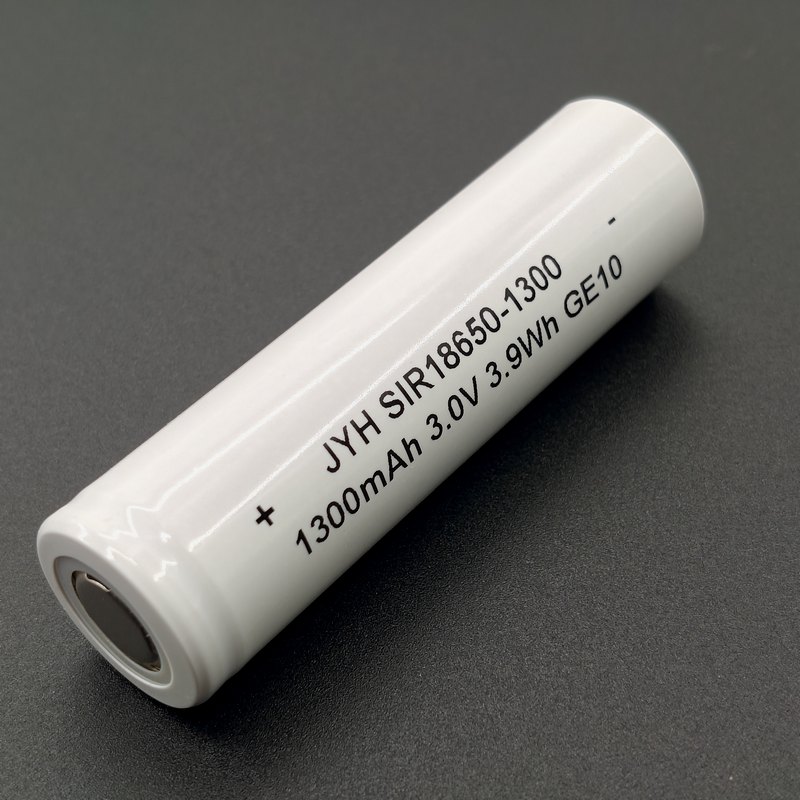

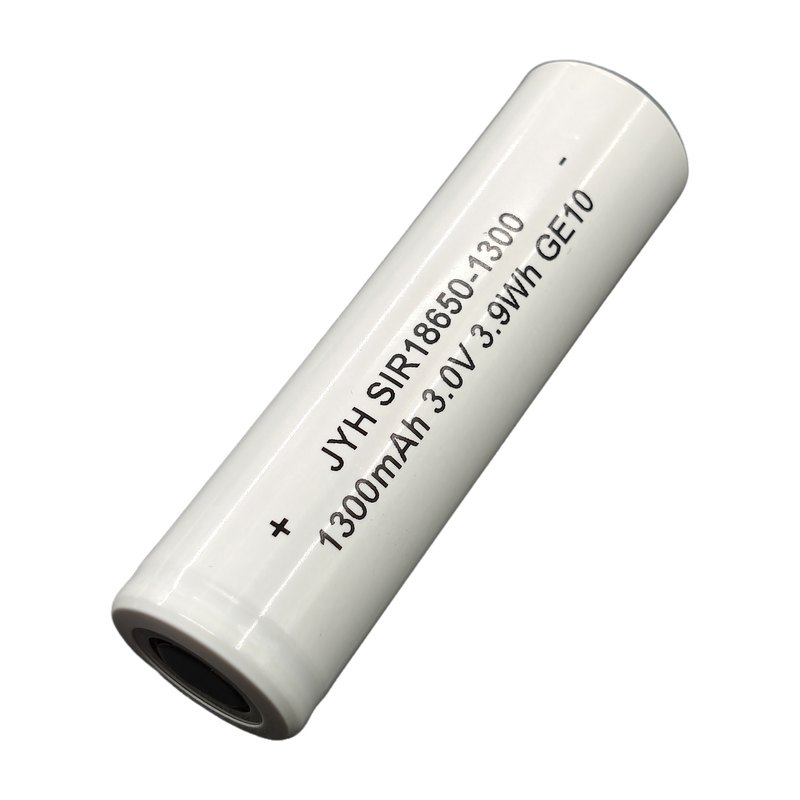

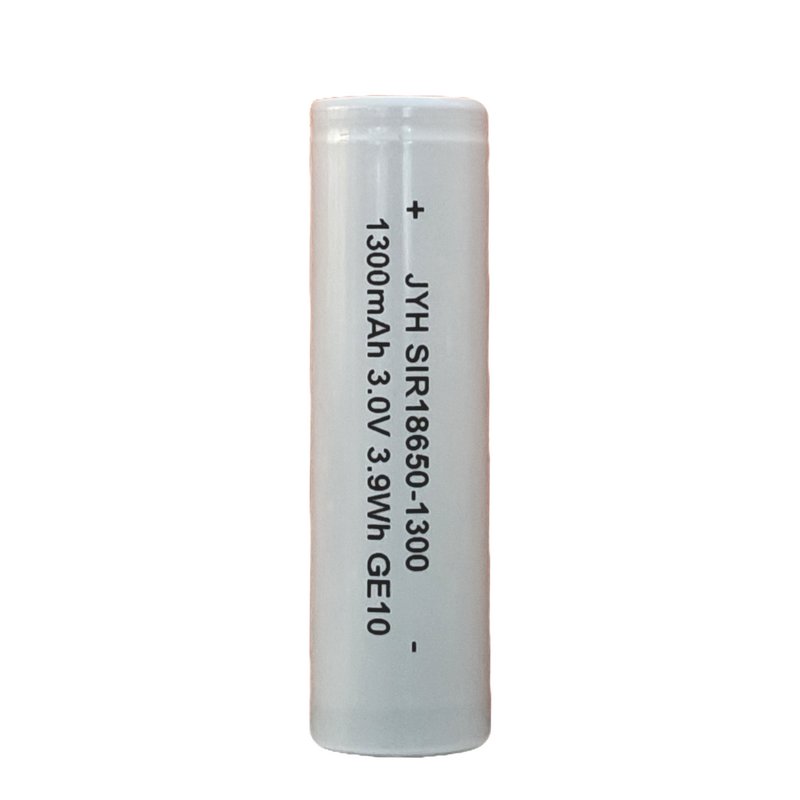

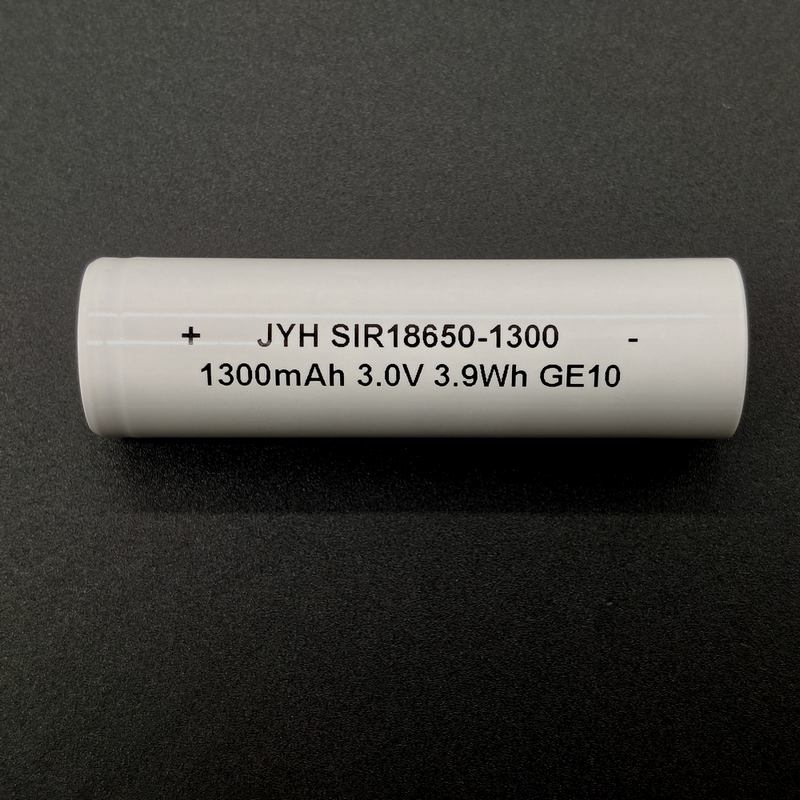

The SIR18650-1300 is a breakthrough 18650-format sodium-ion battery delivering 1300mAh capacity with inherent safety and extreme temperature resilience. Designed as a lithium alternative, it provides reliable power (-40℃ to 60℃) while using earth-abundant materials for supply chain security.
| Model | SIR18650-1300 |
| IEC Designation | IXR19/66 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 1300mAh |
| Typical Capacity | 1340mAh after standard charge and standard discharge |
| Minimum Capacity | 1250mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 650mA charge to 3.95V, then constant voltage at 3.95V charge till current decline to ≤26mA |
| Fast Charge | Constant current at 1300mA charge to 3.95V, then constant voltage at 3.95V charge till current decline to ≤26mA |
| Standard Discharge | 260mA to 1.5V |
| Fast Discharge | 1300mA to 1.5V |
| Maximum Continuous Charge Current/Voltage | 130mA to 3.65V (-10℃ to 0℃) 650mA to 3.95V (0℃ to 15℃) 1300mA to 3.95V (15℃ to 45℃) 650mA to 3.95V (45℃ to 55℃) |
| Maximum Continuous Discharge Current | 3900mA |
| Operating Temperature | Charge -10℃ to 55℃ Discharge -40℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 37g |
