| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | Ncm/Lco |
| Quantity: | |
|---|---|

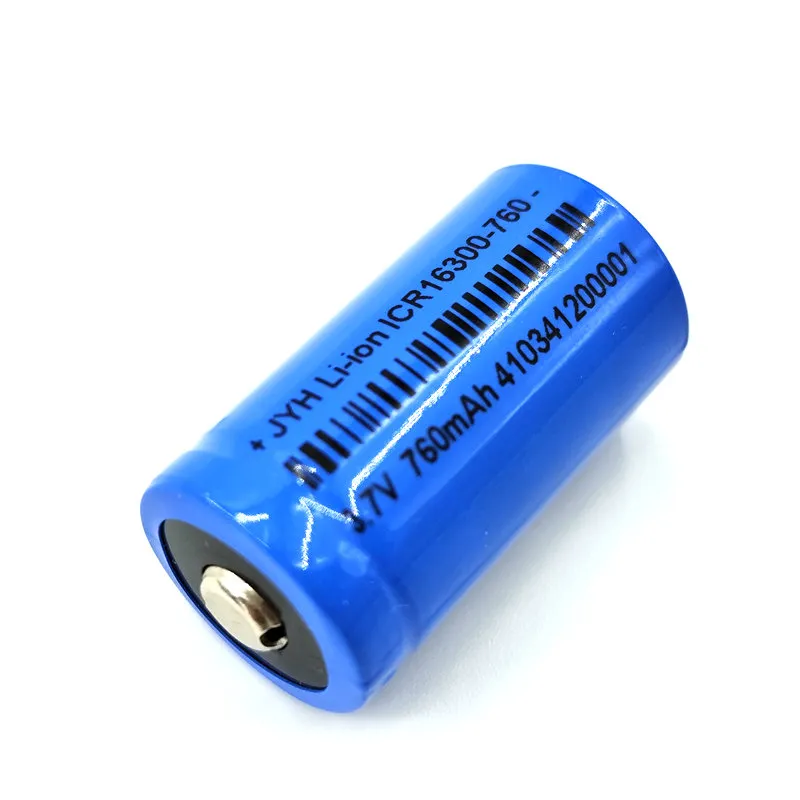

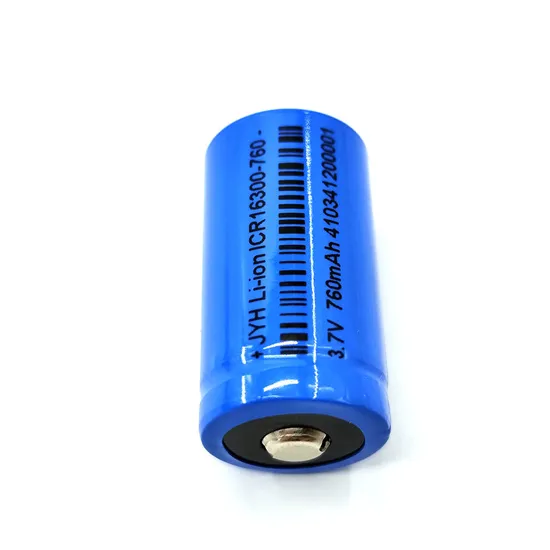

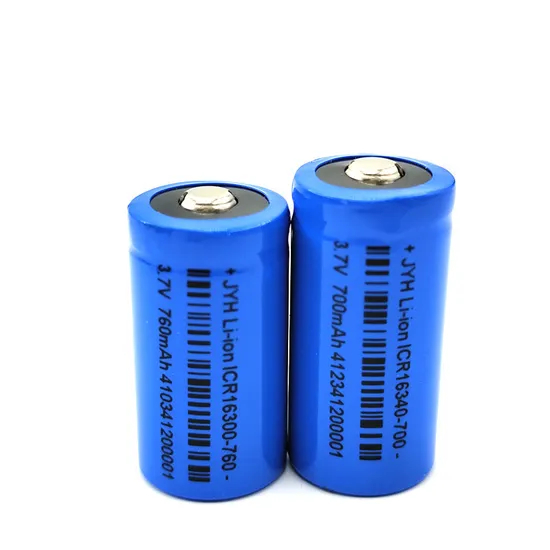

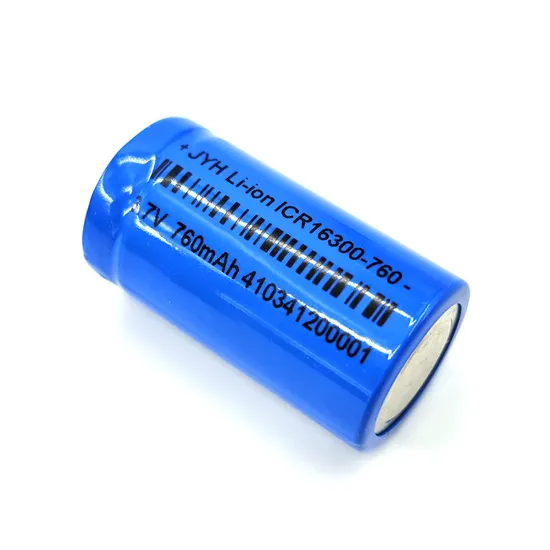

| Model Name | ICR16300-760 |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 760mAh |
| Typical Capacity | 785mAh after standard charge and standard discharge |
| Minimum Capacity | 740mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 380mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤7.6mA |
| Fast Charge | Constant current at 760mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤7.6mA |
| Standard Discharge | 152mA to 2.75V |
| Fast Discharge | 760mA to 2.75V |
| Maximum Continuous Charge Current | 760mA |
| Maximum Continuous Discharge Current | 1520mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Storage Temperature | <1 year -20ºC to 25ºC <3 months -20ºC to 40ºC <30days -20ºC to 50ºC |
| Typical Weight | 17g |
