| Customization: | Available |
|---|---|
| Type: | Lithium-Ion Battery Pack |
| Connection Mode: | Series Connection |
| Quantity: | |
|---|---|

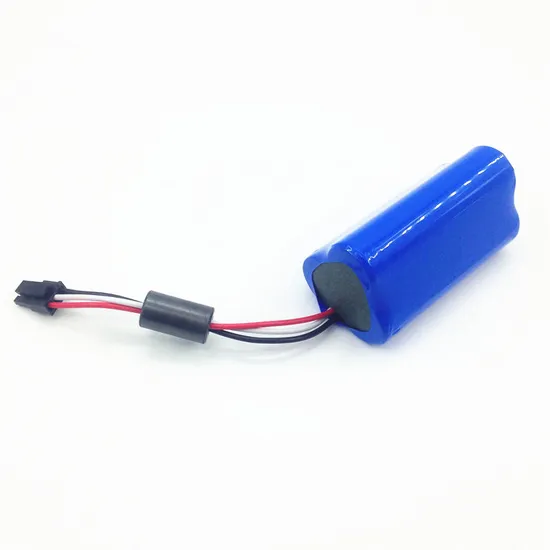

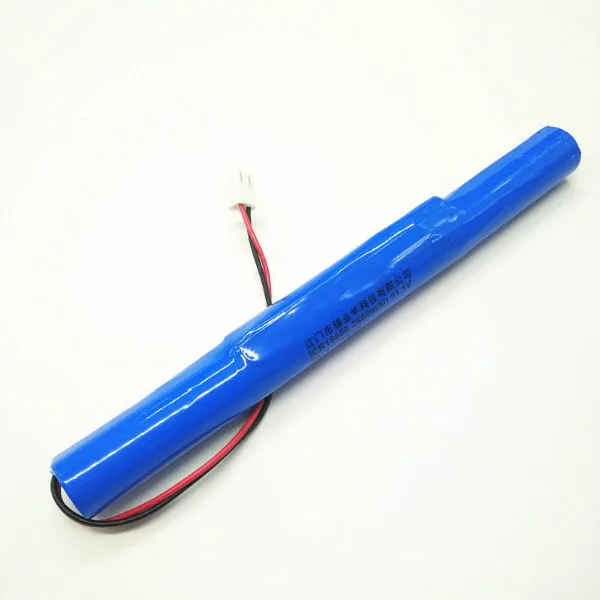

18650 CUSTOM BATTERY PACK
Specification
| Nominal Voltage | 11.1V |
| Nominal Capacity | 2600mAh |
| Typical Capacity | 2600mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 1300mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 26mA |
| Fast Charge | Constant current at 2600mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 26mA |
| Standard Discharge | 520mA to 2.75V |
| Fast Discharge | 2600mA to 2.75V |
| Maximum Continuous Charge Current | 2600mA |
| Maximum Continuous Discharge Current | 5200mA |
| Operating Temperature | Charge 0°C to 45°C Discharge -20°C to 60°C |
| Cell Dimension | Diameter 18.5mm Height 65.5mm |
| 18650 Cell Weight | 45g |
Products advantage
1, Real capacity
2, Cycle life more than 500 times
3, Rechargeable
4, UL test pass
Application
1, Lighting
2, Electric Fan
3, Other personal care products
ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!
Optional Li-ion Packing:
1. Nickel tabs on negative and positive
2. Leads and connectors
3. PCM, NTC
4. Customized series and parallel connect
