| Customization: | Available |
|---|---|
| Type: | Lithium-Polymer Battery Pack |
| Connection Mode: | Series and Parallel |
| Quantity: | |
|---|---|

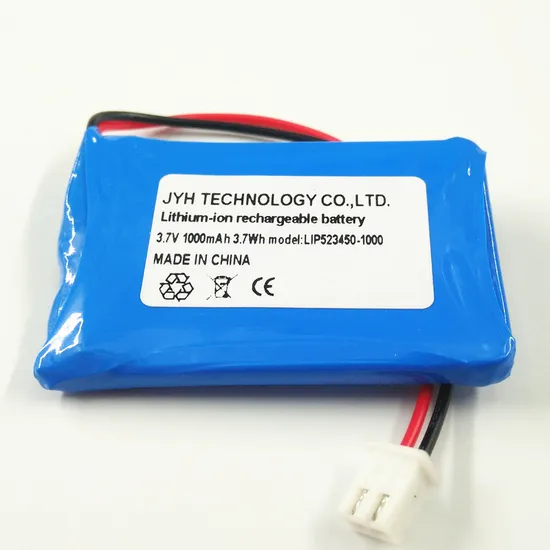

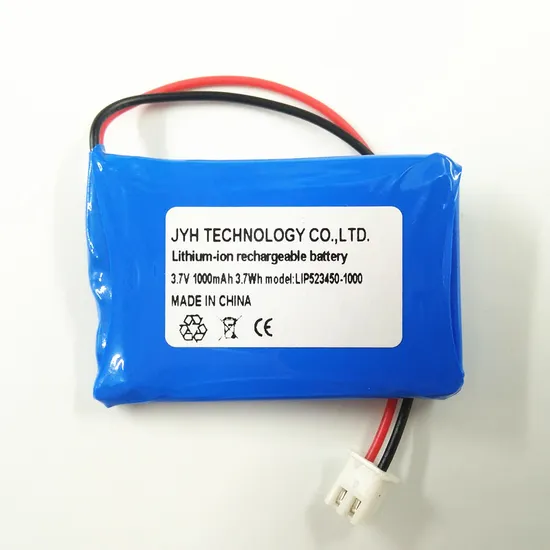

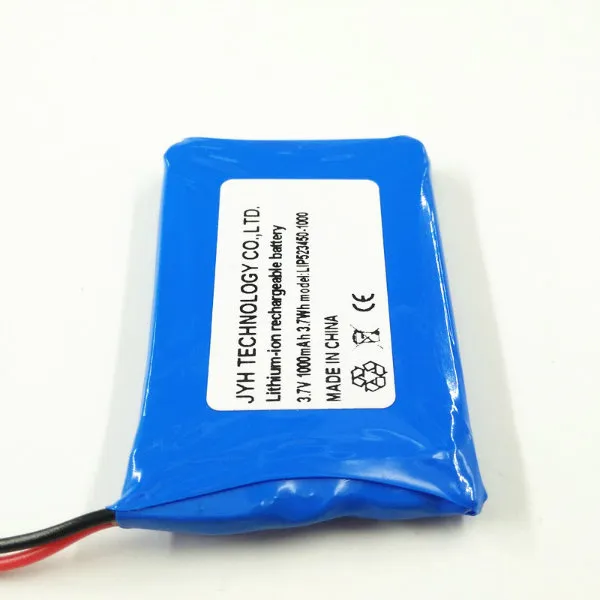

LIP 523450-1000MAH Li-Polymer battery (3.7V 1000mAh, 3.7Wh)
Cell Specification
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1000mAh |
| Typical Capacity | 1050mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 500mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 10mA |
| Fast Charge | Constant current at 1000mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 10mA |
| Standard Discharge | 200mA to 2.75V |
| Fast Discharge | 1000mA to 2.75V |
| Maximum Continuous Charge Current | 1000mA |
| Maximum Continuous Discharge Current | 2000mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Cell Dimension | 52*34*50 |
| Cell Weight | 18g |
Battery Pack Configuration: 1S1P in stick shape (-) or customized

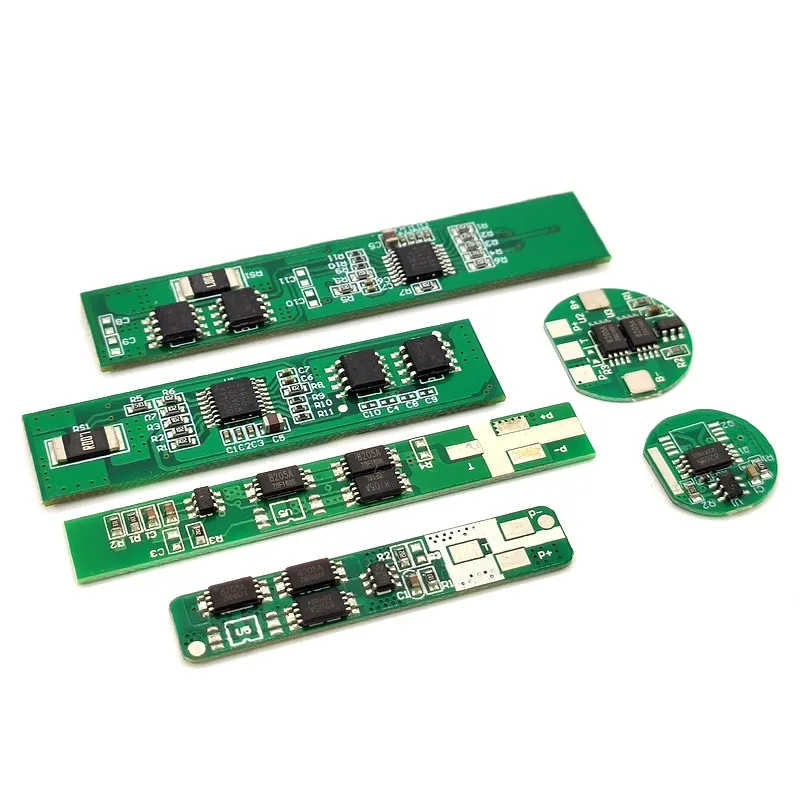

Accessories: Round PCM, cables and connector (Available JST/Molex/DC Jack, etc)
Application
1, LED
2, Electric Fan
3, Other personal care products
ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!
Optional Li-ion Packing:
1. Nickel tabs on negative and positive
2. Leads and connectors
3. PCM, NTC
4. Customized series and parallel connection
5. etc
Company
JYH Technology is ISO9001 manufacturer of rechargeable batteries. Our major business include:
1. Li-ion/LiFePO4 (polymer and cylindrical), NiMH and NiCd cell manufacturing
2. Custom battery packing with JYH rechargeable cells
3. Custom battery packing with cells like Sanyo, Samsung, LG, etc

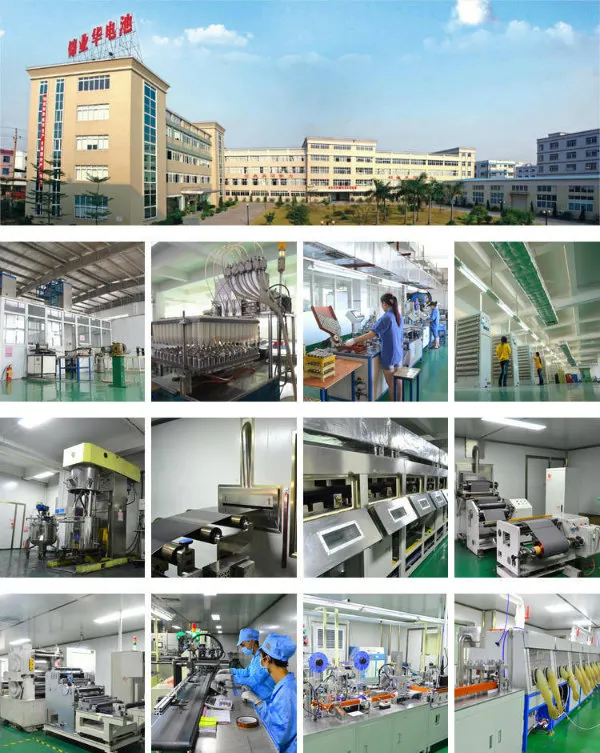

Our factory covers an area of 20,000 sqm, and accommodate with over 300 people. Most of our batteries are exported to Europe and North America market directly, CB, UL certificated for most models. As 20-year energy solution provider, we are sure we can help you with suitable power solution.
