| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | LFP |
| Quantity: | |
|---|---|

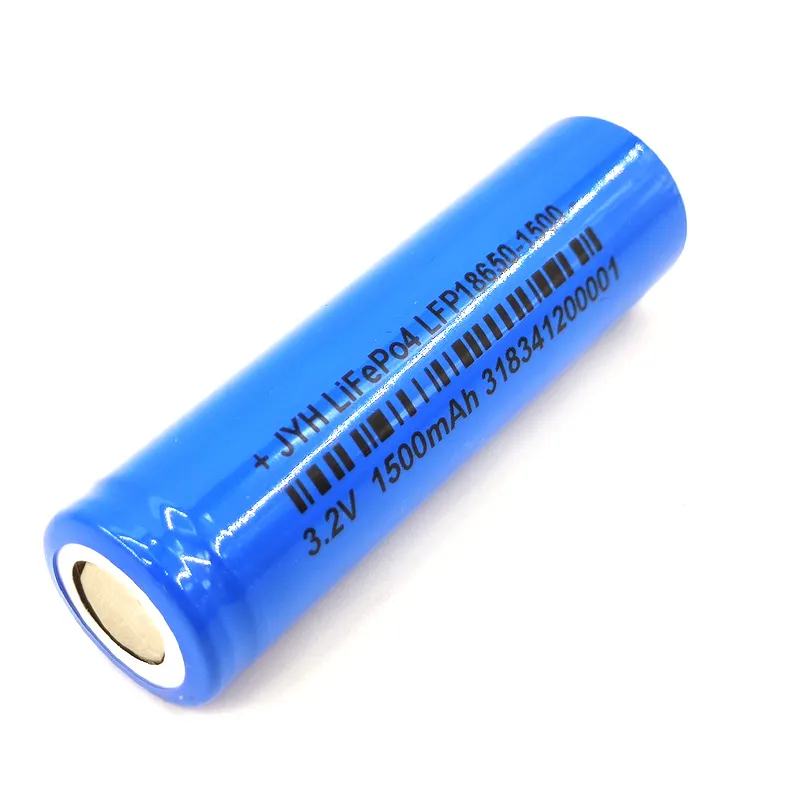

| Model Name | LFP18650-1500 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 1500mAh |
| Typical Capacity | 1550mAh after standard charge and standard discharge |
| Minimum Capacity | 1450mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 750mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤15mA |
| Fast Charge | Constant current at 1500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤15mA |
| Standard Discharge | 300mA to 2.0V |
| Fast Discharge | 1500mA to 2.0V |
| Maximum Continuous Charge Current | 750mA (0~15ºC) 1500mA (15~25ºC) 4500mA (25~45ºC) |
| Maximum Continuous Discharge Current | 15000mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Storage Temperature | <1 year -20ºC to 25ºC <3 months -20ºC to 35ºC <30days -20ºC to 45ºC |
| Typical Weight | 38g |
