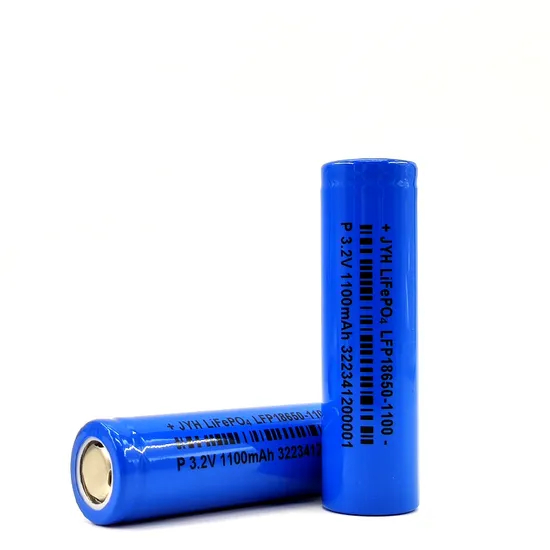

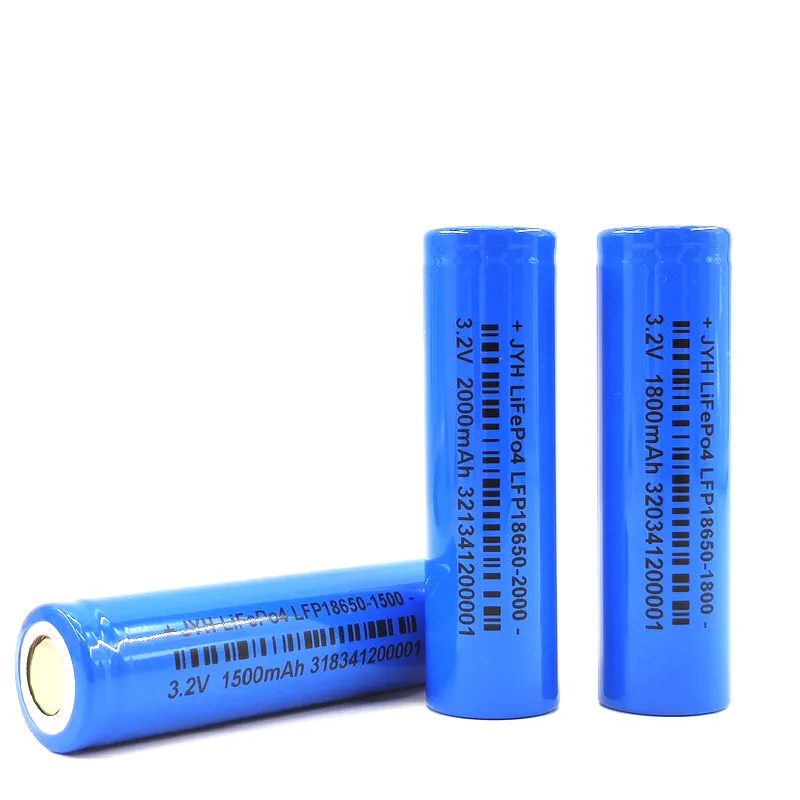

Cold Weather LFP 18650 LiFePO4 Battery

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Quantity:




Inquire Add to Basket

Cold Weather Battery Cold Weather LFP 18650 LiFePO4 Battery Cold Weather 18650 Battery

Product Description

Basic Info.

Model NO.

LFP18650L-1500

Rechargeable

Yes

Size

Small

Certificate

UL1642

PCM IC

Ablic, Ricoh

OEM/ODM

Yes

IEC 61960 Designation

Ifpr19/66

Transport Package

Un3480

Specification

LFP18650-1500

Trademark

JYH

Origin

China

HS Code

85076000

Production Capacity

50K Per Day

Product Description

Product Features:
Lithium - iron - phosphate (LiFePO4) batteries, renowned for their high safety profiles, face significant hurdles in high - latitude regions and other low - temperature application scenarios. The prevalent industry approach to tackle low - temperature charging involves the addition of heating packs to battery packs. However, this solution invariably results in a more intricate product circuit design. Not only does it complicate the manufacturing process, but it also substantially increases power consumption, leading to higher operational costs and potential inefficiencies in the overall system.

At JYH, we are proud to introduce our innovative low - temperature LiFePO4 batteries. Through years of intensive research and development, we have successfully overcome the long - standing issue of low - temperature charging efficiency for LiFePO4 batteries. Cold weather batteries are designed to withstand low temperatures and maintain power.

Our cutting - edge technology not only improves the charging efficiency at low temperatures but also significantly enhances the safety aspects during the charging process.
We believe that our low - temperature LiFePO4 batteries have the potential to revolutionize applications in cold - storage facilities, polar exploration equipment, and other industries operating in frigid environments.

Application : Emergency Light, Exit sign, ELU, Solar Light, Personal Care, Medical Devices, Backup Power....

Battery Specification:

Model	LFP18650-1500
IEC Designation	IFpR19/66
Nominal Voltage	3.2V
Nominal Capacity	1500mAh
Typical Capacity	1550mAh after standard charge and standard discharge
Minimum Capacity	1450mAh after standard charge and standard discharge
Standard Charge	Constant current at 750mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤15mA
Fast Charge	Constant current at 1500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤15mA
Standard Discharge	300mA to 2.0V
Fast Discharge	1500mA to 2.0V
Maximum Continuous Charge Current	1500mA (should be adjusted according to the temperature)
Maximum Continuous Discharge Current	4500mA
Operating Temperature	Charge -20ºC to 45ºC Discharge -40ºC to 60ºC
Storage Temperature	<1 year -20ºC to 25ºC <3 months -20ºC to 40ºC <30days -20ºC to 50ºC
Typical Weight	38g

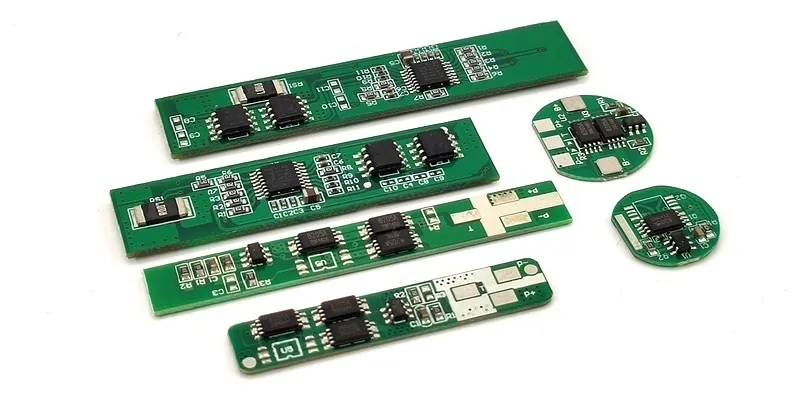

PCM Electrical Characteristics	PCM Parameters are adjustable depends on different solutions
Overcharge detection voltage	Depends
Over-discharge detection voltage	Depends
Overcurrent detection current	Depends
Short detection condition	Depends
PTC	Depends
NTC	Depends

Battery packs are customized products, which is supposed to combine with cells in different configuration, in order to fit for your product. For any power solution, please feel free to contact us, together we work, the better solution we can achieve.

Scroll down the page or send me email for further discussion
Jack <mfr#jyh-battery. com>
