| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | LFP |
| Quantity: | |
|---|---|

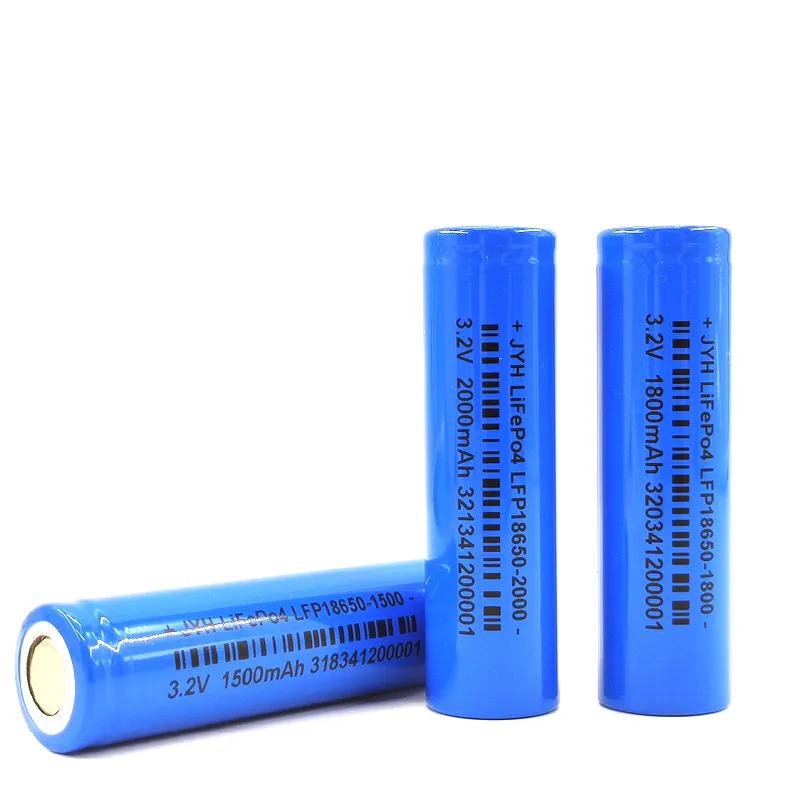

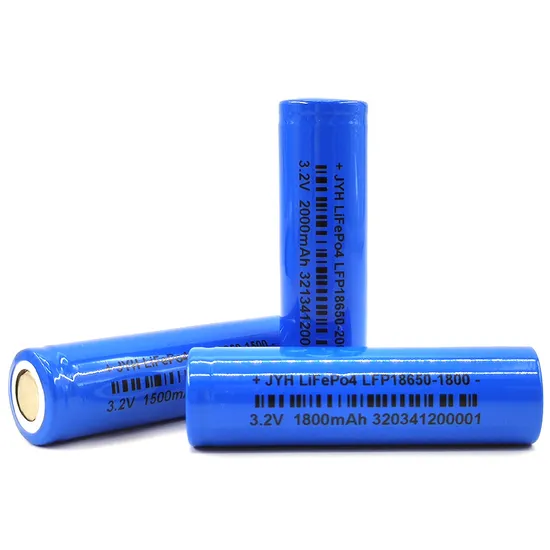

Design Standards: | Model | LFP18650-2000 |
| IEC Designation | IFpR19/66 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 2000mAh |
| Typical Capacity | 2050mAh after standard charge and standard discharge |
| Minimum Capacity | 1950mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 100mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤20mA |
| Fast Charge | Constant current at 2000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤20mA |
| Standard Discharge | 400mA to 3.65V |
| Fast Discharge | 2000mA to 3.65V |
| Maximum Continuous Charge Current | 0~10ºC 400mA 10~20ºC 1000 mA 20~60ºC 2000 mA |
| Maximum Continuous Discharge Current | 6000mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Storage Temperature | <1 year -20ºC to 25ºC <3 months -20ºC to 35ºC <30days -20ºC to 45ºC |
| Typical Weight | 45g |

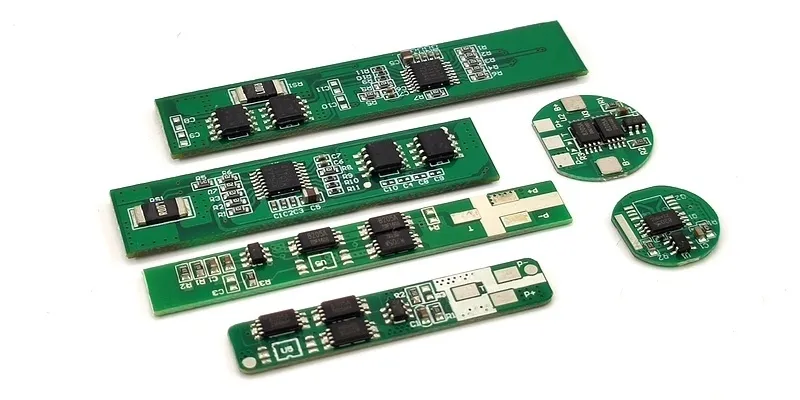

| PCM Electrical Characteristics | PCM Parameters are adjustable depends on different solutions |
| Overcharge detection voltage | / |
| Over-discharge detection voltage | / |
| Overcurrent detection current | / |
| Short detection condition | / |
| PTC | / |
| NTC | / |
