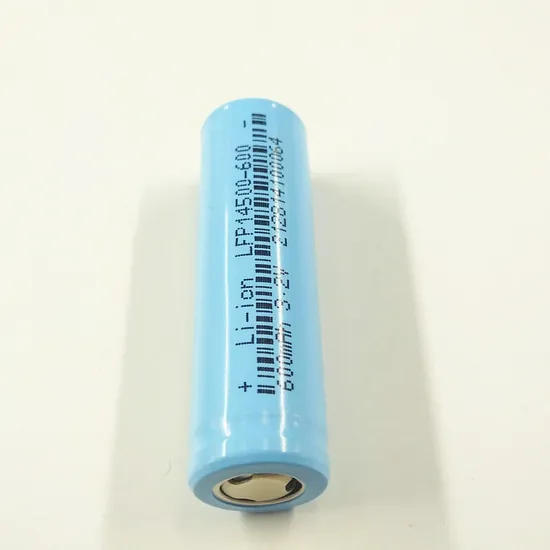

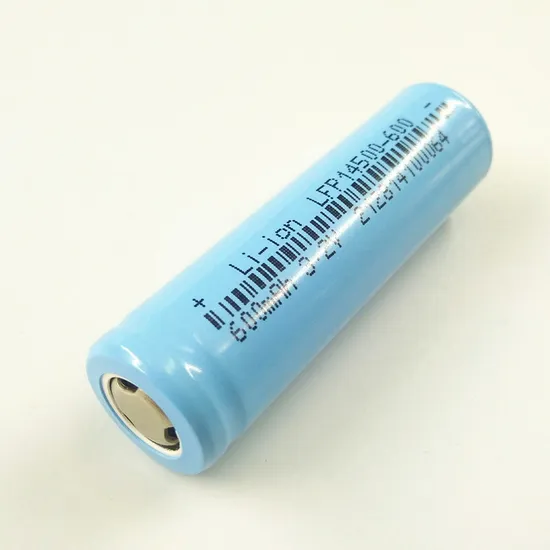

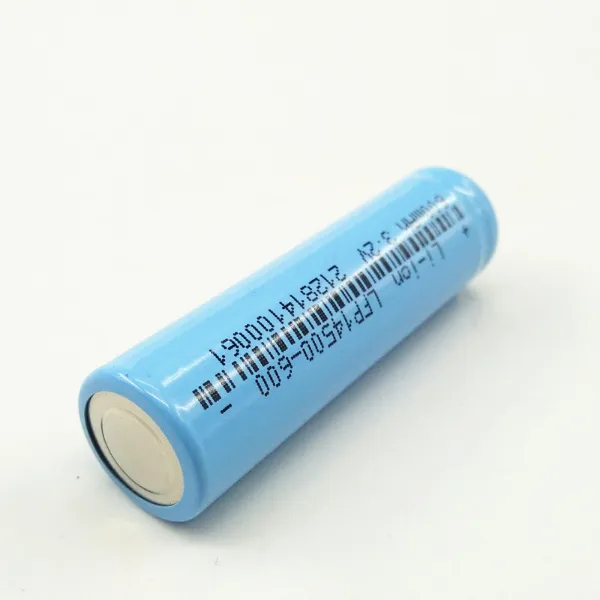

IEC EN 62620 Lithium battery for electrical energy storage systems 14500 LiFePo4 Cell Specification | Nominal Voltage | 3.2V |
| Nominal Capacity | 600mAh |
| Typical Capacity | 630mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 300mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤6mA |
| Fast Charge | Constant current at 600mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤6mA |
| Standard Discharge | 120mA to 2.0V |
| Fast Discharge | 600mA to 2.0V |
| Maximum Continuous Charge Current | 600mA |
| Maximum Continuous Discharge Current | 1800mA |
| Operating Temperature | Charge 0°C to 45°C
Discharge -20°C to 60°C |
| Dimensions | Diameter 14.5mm
Height 50.5mm |
| Typical Weight | 16g |
Products advantage
1, Real capacity
2, Cycle life more than 1000 times
3, Rechargeable
Application
1, Electric shaver
2, UPS
3, Emergency lighting
ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!
Jack
Sales5#jyh-battery. COM
Battery packs are customized products, which is supposed to combine with cells in different configuration, in order to fit for your product. For any power solution, please feel free to contact us, together we work, the better solution we can achieve.
Scroll down the page or send me email for further discussion Jack
SALES5#JYH-BATTERY. COM Application 1, LED
2, Electric Fan
3, Other personal care products
ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!
Optional Li-ion Packing:
1. Nickel tabs on negative and positive
2. Leads and connectors
3. PCM, NTC
4. Customized series and parallel connection
5. etc

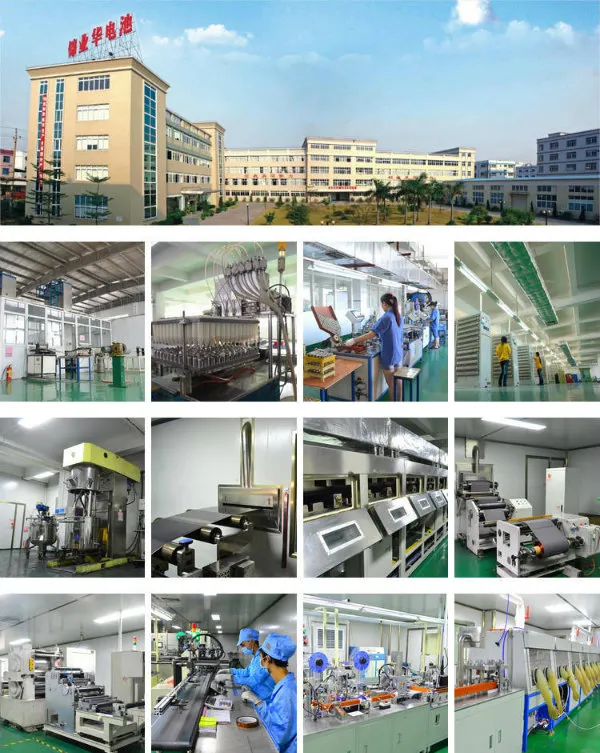

Company JYH Technology is ISO9001 manufacturer of rechargeable batteries. Our major business include:
1. Li-ion/LiFePO4 (polymer and cylindrical), NiMH and NiCd cell manufacturing
2. Custom battery packing with JYH rechargeable cells
3. Custom battery packing with cells like Sanyo, Samsung, LG, etc Our factory covers an area of 30,000 sqm, and accommodate with over 500 people. Most of our batteries are exported to Europe and North America market directly, CB, UL certificated for most models. As 20-year energy solution provider, we are sure we can help you with suitable power solution.
