Choosing A Cold Weather LiFePO4 Battery for Your System

Sub-zero temperatures punish standard lithium batteries. Capacity drops, internal resistance climbs, and charge cycles that worked fine in mild weather suddenly stall out or trigger safety cutoffs. For engineers designing systems that operate in freezers, unheated enclosures, or outdoor installations across northern climates, picking the right LiFePO4 cell isn't a minor spec-sheet detail — it determines whether the whole system keeps running through winter.

This guide breaks down what separates cold-rated LiFePO4 cells from standard ones, compares the main variants available today, and walks through how to match battery specifications to your system's real operating conditions. Whether you're building a monitoring network, an emergency lighting system, or a logistics fleet, the right chemistry choice comes down to a few measurable factors: minimum charge temperature, capacity retention, and cycle life at low temperature.

What Makes a Cold Weather LiFePO4 Battery Different?

Standard LiFePO4 cells rely on electrolytes that thicken as temperatures fall, slowing ion movement and reducing usable capacity. Cold-rated cells solve this differently. According to JYH Technology (2026), cold-weather LiFePO4 cells use modified electrolyte formulations, specialized separators, and internal design changes that keep ion flow stable well below freezing, while standard cells lose capacity fast once temperatures drop.

This distinction matters because it changes what a battery can safely do, not just how long it lasts. A cell rated only for low-temperature discharge might power a device sitting in the cold, but attempting to charge it at the same temperature can cause lithium plating and permanent damage. Cells engineered for low-temperature charging avoid that failure mode entirely, which is why charge temperature and discharge temperature should always be evaluated as separate specifications.

Which LiFePO4 Variant Suits Your Application?

Three cold-rated variants dominate sub-zero deployments, each suited to a different operating profile.

Standard low-temperature LiFePO4 cells can discharge and charge at -20°C while retaining more than 80% of rated capacity, and they pass cycle life testing at that same temperature. Some models extend further, charging at -40°C without triggering safety risks and without requiring a heating element.

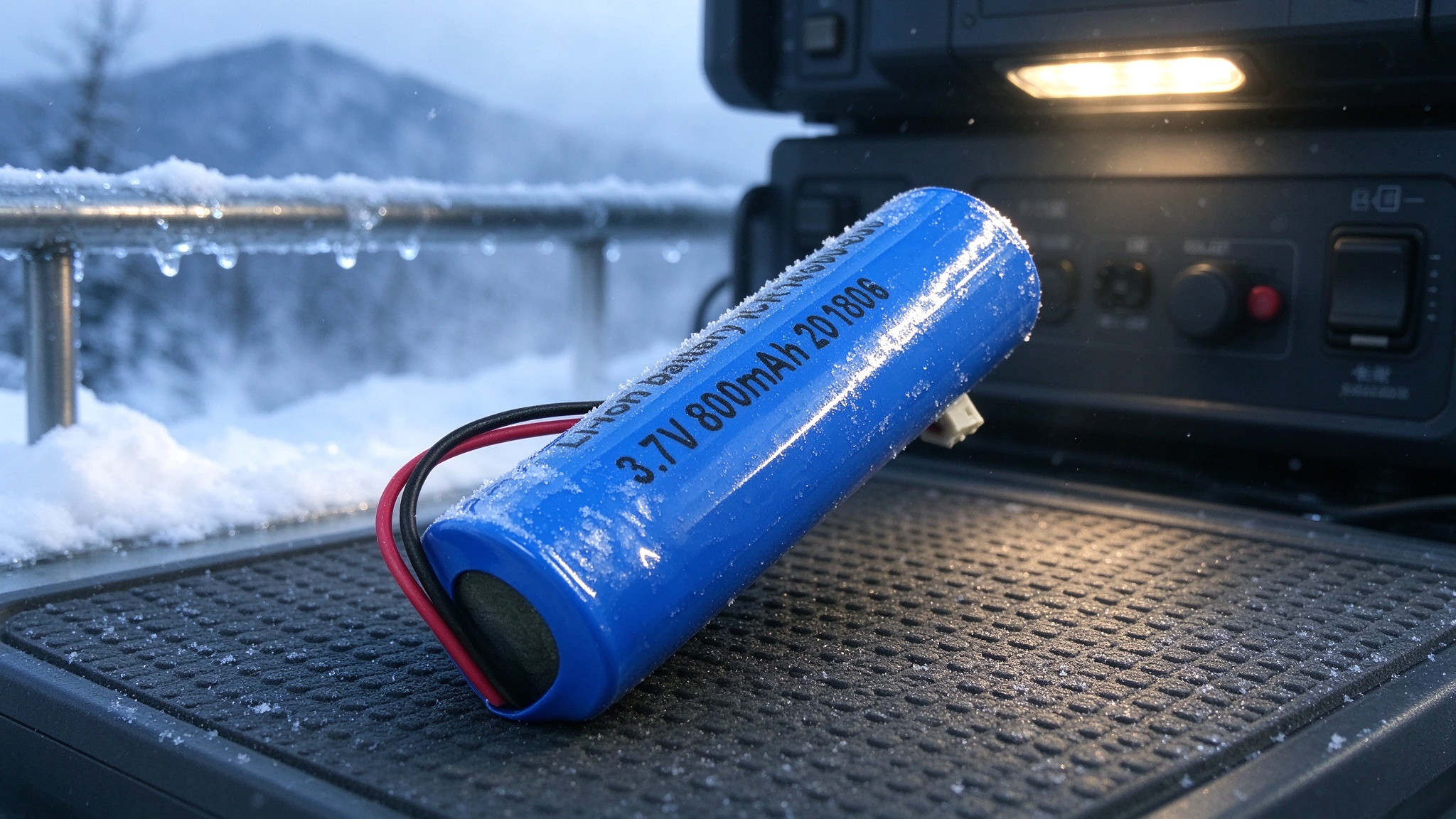

A refrigerated transport operation moving vaccines or perishable goods needs power that stays steady inside a trailer parked overnight in freezing weather — the kind of role a Cold Chain LiFePO4 battery is built to fill. Choose a standard low-temperature cell if your system runs down to -20°C without extreme cycling demands. Choose an LTO cell if your equipment must charge and discharge reliably at -40°C over a service life measured in tens of thousands of cycles.

UL924-compliant emergency lighting cells take a narrower approach, built specifically for life-safety systems. These cells charge safely at -30°C, hold more than 90% capacity when charging and discharging at -5°C, and pass 500 or more cycles under that condition — a spec set tuned for exit signs and emergency fixtures rather than general-purpose deployment.

Lithium titanate (LTO) cells sit at the extreme end. They deliver more than 10,000 cycles at 100% depth of discharge, pass cycle life testing at -40°C, and retain over 60% capacity when charging and discharging at that same temperature. No heating components are required in any of these three variants, which simplifies enclosure design and removes a common point of failure in remote installations.

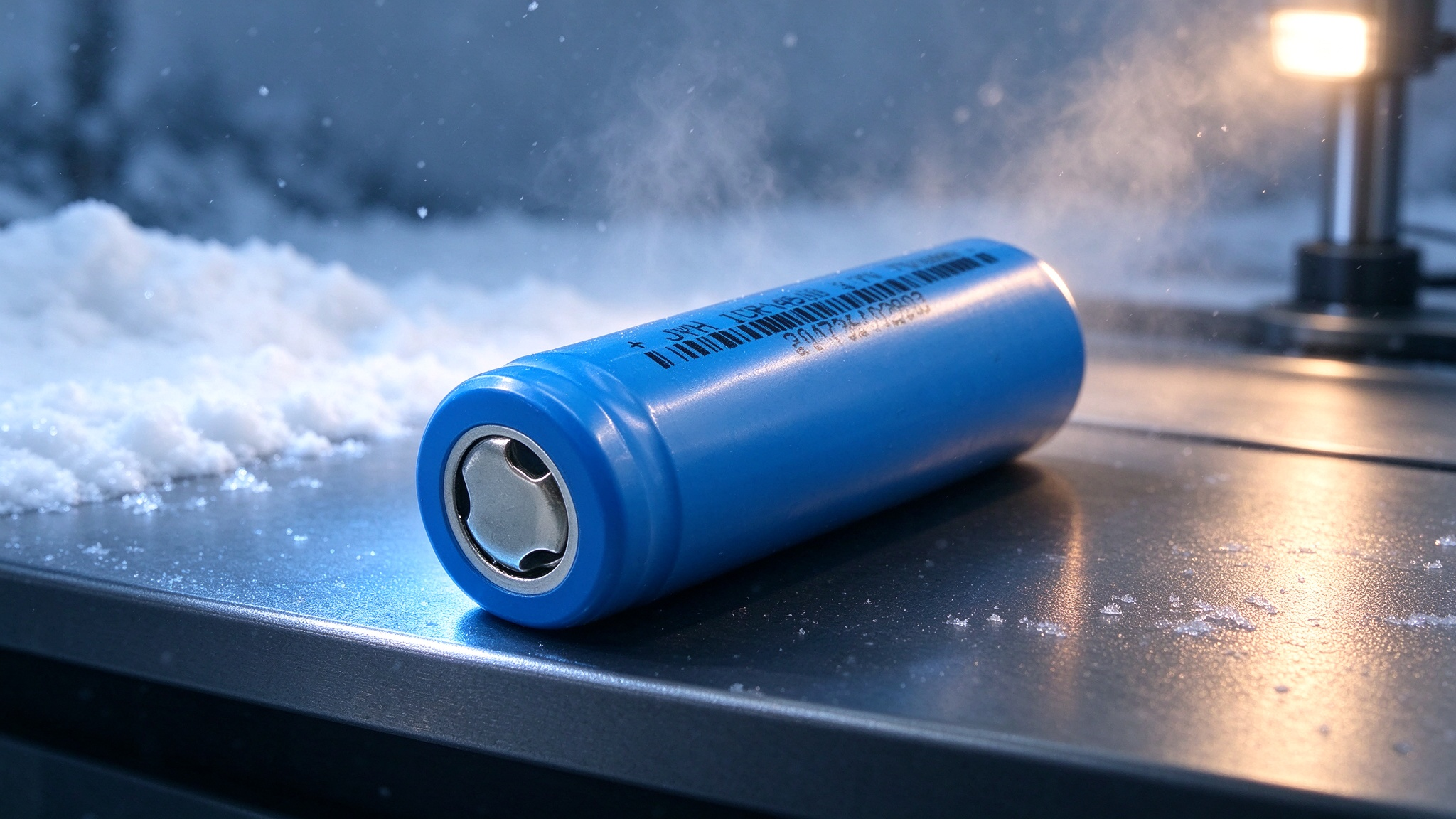

Pharmaceutical warehouses that track temperature continuously across multiple storage zones face a different problem: gaps in monitoring during winter transit can compromise an entire shipment. A Cold Chain low temperature LiFePO4 battery inside each data logger keeps that monitoring uninterrupted, even as trucks move between loading docks and unheated trailers.

Remote infrastructure presents its own version of this challenge. Weather stations, pipeline monitors, and unmanned sensor networks in Arctic or high-altitude locations depend on power that keeps transmitting through winter without draining extra energy on heating circuits. An Industrial sensors low temperature LiFePO4 battery handles that role by discharging reliably at low temperature without a heating element pulling from the same power budget the sensor needs to operate.

How Do the Specs Compare?

Data sourced from JYH Technology product specifications (jyh-battery.com, 2026).

How Do You Match Battery Specs to System Requirements?

Start with the coldest temperature your system will actually see during charging, not just storage or discharge. Many failures trace back to charging a cell below its rated threshold, even when the discharge spec looks sufficient. Next, check capacity retention at that temperature — a battery that "works" at -20°C but only delivers 50% of rated capacity may force a redesign of your power budget. Finally, weigh cycle life against your maintenance plan. A sensor network in a remote location that's expensive to service benefits from the extended cycle life of an LTO cell, even at a higher unit cost, because fewer site visits are needed over the system's lifetime.

Frequently Asked Questions

How much more does a cold-rated LiFePO4 battery cost compared to a standard cell?
Cold-rated cells typically carry a higher unit cost due to specialized electrolytes and separators, though the exact premium varies by manufacturer and order volume. Buyers should request a quote based on their specific capacity and temperature requirements.

How long does it take to source a cold weather LiFePO4 battery for a new design?
Lead times depend on whether the cell is a standard catalog item or requires custom sizing. Standard low-temperature and UL924-compliant models are typically available faster than custom LTO configurations built for specific enclosures.

What happens if a standard LiFePO4 battery is charged in freezing conditions by mistake?
Charging a non-cold-rated cell below its minimum threshold can cause lithium plating on the anode, leading to permanent capacity loss or, in severe cases, internal short circuits. This is why charge temperature rating should always be confirmed separately from discharge rating.

Are there alternatives to LiFePO4 for extreme cold environments?
Lithium titanate is often considered an alternative within the lithium family, offering better low-temperature charge performance and far longer cycle life, though typically at a lower energy density than standard LiFePO4 cells.

Who needs a cold-rated LiFePO4 battery versus a standard one?
Systems that operate, charge, or store batteries in unheated outdoor enclosures, refrigerated environments, or regions with sustained sub-zero winters need cold-rated cells. Indoor equipment in climate-controlled spaces generally does not.

Building a Reliable Cold Weather Power System

Selecting a battery for cold environments comes down to matching real operating temperatures — both charge and discharge — against verified specifications, rather than relying on general LiFePO4 marketing claims. Reviewing cycle life data, capacity retention figures, and safety certifications for the exact temperature range your system will face is the most reliable way to avoid field failures once winter arrives.

Quick answer:

Cold weather LiFePO4 batteries use modified electrolytes and separators to maintain capacity and safe charging below freezing, unlike standard cells that degrade quickly in cold conditions. Standard low-temperature LiFePO4 cells suit general use down to -20°C, UL924-compliant cells suit emergency lighting, and lithium titanate cells suit systems needing charge and discharge reliability at -40°C with extended cycle life.
