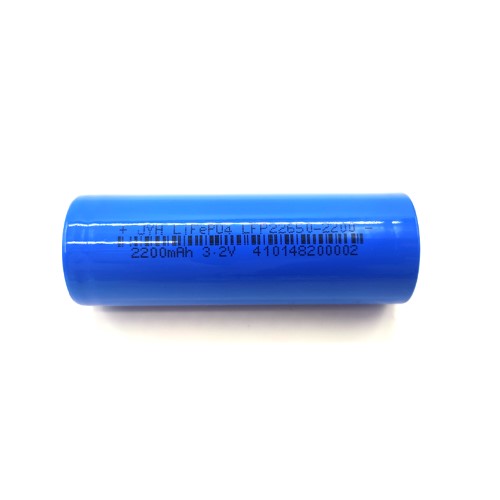

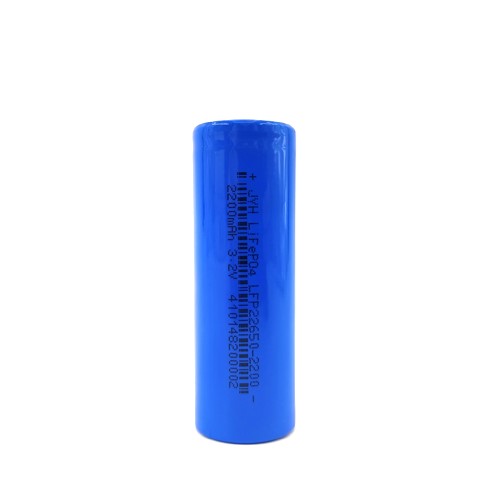

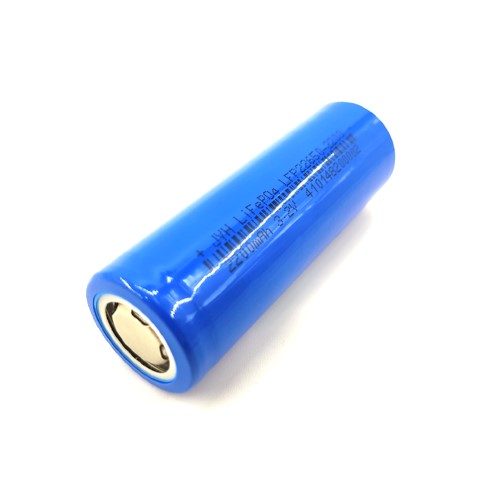

LFP22650-2200 High-Safety Lithium Iron Phosphate Battery

PRODUCT FEATURES

- LiFePO4 has a good performance in high temperature environment, long cycle life and safety.
- Based on latest requirement of IEC/EN 60598-2-22, Lithium battery should comply with IEC 62133-2 and IEC 62620, JYH LiFePO4 batteries can fully meet above standards.

CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- IEC 62620
- IEC 62133-2
- UN38.3
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LFP22650-2200

  • JYH

Previous:
Next:
lfp22650 lifepo4 battery emergency light 22650 battery elu lfp26650-2200 battery LFP22650 2200mAh lifepo4 battery IEC62620 lfp22650 battery evacuation lighting 22650 lifepo4 battery iec62133 22650 lifepo4 battery
Product Details
Product Description

The LFP22650-2200 is a premium lithium iron phosphate battery engineered for critical safety applications. With 2200mAh nominal capacity (2250mAh typical) and full compliance with IEC 62133-2/62620 standards, it delivers reliable power for emergency systems and medical equipment with exceptional thermal stability and 2000+ cycle life.

Model
LFP22650-2200
IEC61960 Designation
IFpR23/66
Nominal Voltage
3.2V
Nominal Capacity
2200mAh
Typical Capacity
2250mAh after standard charge and standard discharge
Minimum Capacity
2150mAh after standard charge and standard discharge
Standard Charge
Constant current at 1100mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤22mA
Fast Charge
Constant current at 2200mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤22mA
Standard Discharge
1100mA to 2.0V
Fast Discharge
2200mA to 2.0V
Maximum Continuous Charge Current
2200mA
Maximum Continuous Discharge Current
6600mA
Operating Temperature
Charge            0℃ to 45℃
Discharge   -20℃ to 60℃
Storage Temperature

<1 year         -20℃ to 25℃
<3 months  -20℃ to 40℃
<30days       -20℃ to 50℃
Typical Weight
65g



Applications:

▌ Life Safety Systems
• Emergency exit signage (Comly with IEC/EN 60598-2-22)
• Hospital backup power for critical care devices
• Elevator emergency lighting units (ELU)

▌ Renewable Energy
• Solar street light energy storage
• Off-grid power backup systems
• Smart meter backup power

▌ Medical Solutions
• Portable medical diagnostic equipment
• Patient monitoring devices
• Pharmaceutical refrigeration backup
