LFP26650L-3400 Ultra-Cold Lithium Iron Phosphate Battery

LFP26650-3400 Ultra-Cold Lithium Iron Phosphate Battery

Cold Weather Battery

Product Features

It is well known that normal lithium-ion batteries are not good at low-temperature environments, lithium precipitation will occur if inappropriate usage, which is very likely to have a decrease in both electric and safety performance.

In order to effectively improve this major deficiency, JYH has expended a great deal of research and development efforts, adjusted and optimized the formula of the battery cells. Through unremitting efforts, we have achieved remarkable results, enabling lithium iron phosphate batteries to excel in charging and discharging capabilities under sub-zero temperatures. These low-temperature batteries not only maintain functionality below zero degrees but also boast a discharge capacity approaching 90%.

Quantity:
Availability:





Inquire Add to Basket

Model:
LFP26650-3400
Brand:
JYH

Under low-temperature lifepo4 battery Low Temperature Charging Battery 26650 low temperature lifepo4 battery cold weather 26650 lifepo4 battery -20 degree charging lifepo4 battery -30 degree charging lifepo4 battery subzero energy storage lifepo4 battery military low-temp battery

Product Details

Product Description

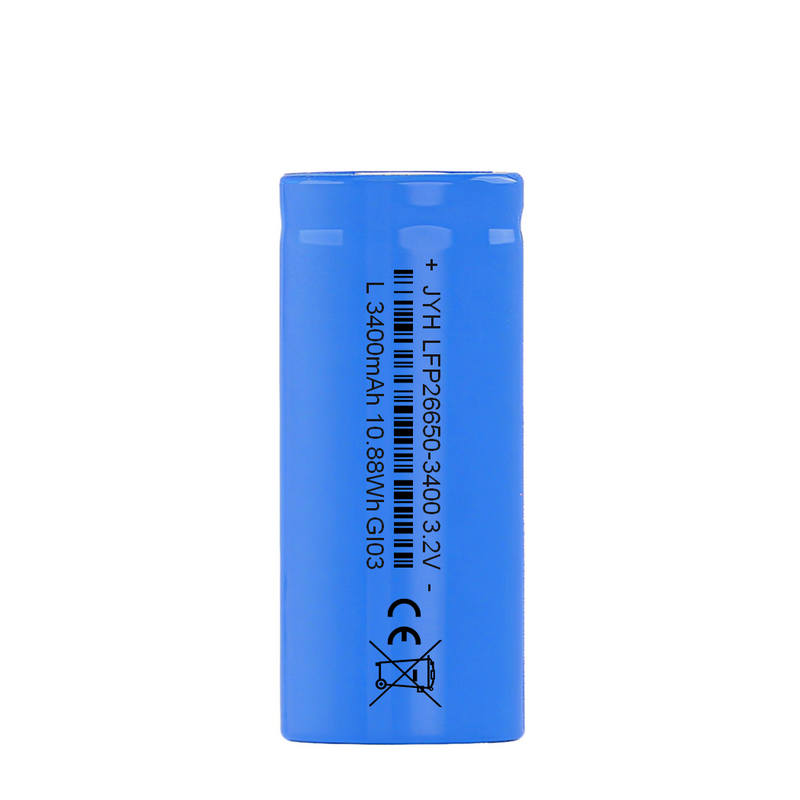

The cold weather LFP26650 battery represents the pinnacle of cold-weather energy technology, delivering 3400mAh nominal capacity (3500mAh typical) with unparalleled -40℃ to 60℃ operational range. Engineered for mission-critical applications, it maintains 90% discharge efficiency at -20℃ through proprietary electrode technology.

Model	LFP26650-3400 L Type
IEC Designation	IFpR27/66
Nominal Voltage	3.2V
Nominal Capacity	3400mAh
Typical Capacity	3500mAh after standard charge and standard discharge
Minimum Capacity	3300mAh after standard charge and standard discharge
Standard Charge	Constant current at 1700mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤33mA
Fast Charge	Constant current at 3400mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤32mA
Standard Discharge	680mA to 2.0V
Fast Discharge	3400mA to 2.0V
Maximum Continuous Charge Current	680mA (-20℃~0℃) 1700mA (0℃~15℃) 3400mA (15℃~45℃) 1700mA (45℃~60℃)
Maximum Continuous Discharge Current	10200mA
Operating Temperature	Charge -20℃ to 45℃ Discharge -40℃ to 60℃
Storage Temperature	<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃
Typical Weight	85g

Breakthrough Features:

Deep Cold Operation:
• Charges at -20℃ (3x better than industry standard)

Technical Dominance:

Parameter	LFP26650L-3400	Standard Batteries
Cold Charge Threshold	-20℃	0℃ (typical)
-20℃ Discharge Capacity	>80% retention	<50% retention
Cycle Life @-20℃	500 cycles	Not Support low temperature cycling

Critical Applications:

▌ Polar Operations
• Ice-cap seismic monitoring systems
• Antarctic drone power packs
• Arctic deep-sea exploration ROVs

▌ Defense Systems
• Cold-weather missile guidance systems
• High-altitude reconnaissance balloons
• Arctic base microgrid storage

▌ Industrial Solutions
• Cryogenic pharmaceutical transport
• Permafrost monitoring equipment
• Winterized wind turbine controls

Certifications:

• EU 2023/1542 & 2006/66/EC compliant
• UN38.3
• CE-RoHS-MSDS documentation
