| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | Ncm/Lco |
| Quantity: | |
|---|---|

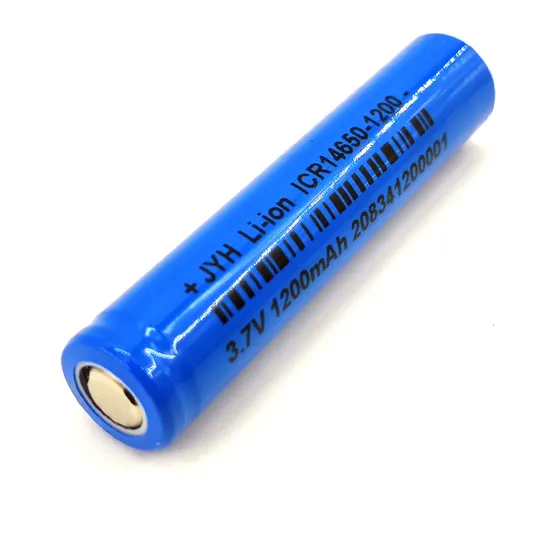

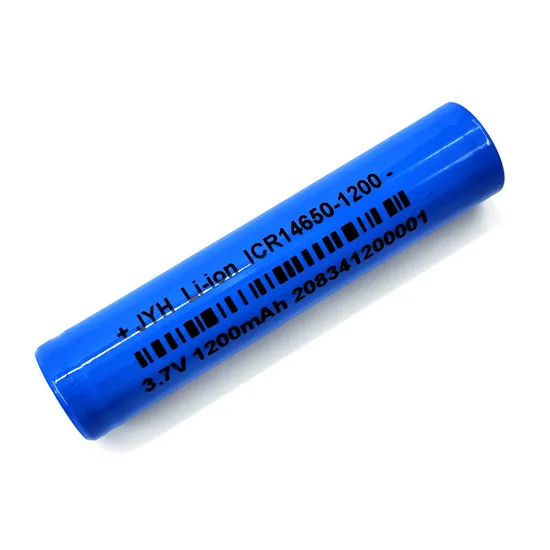

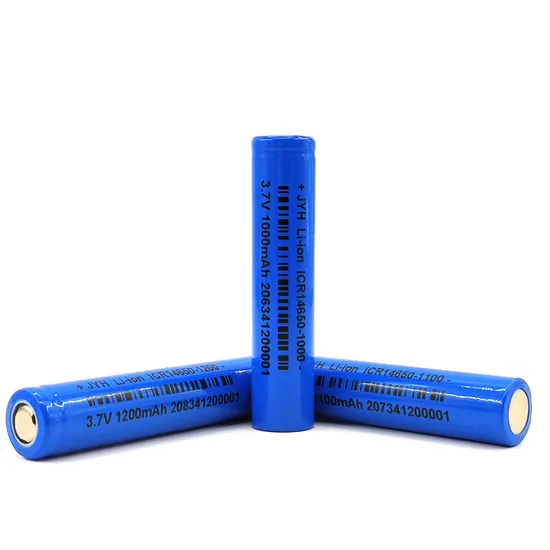

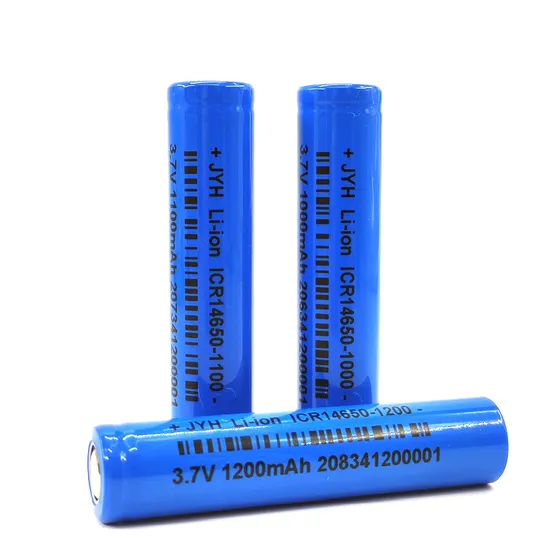

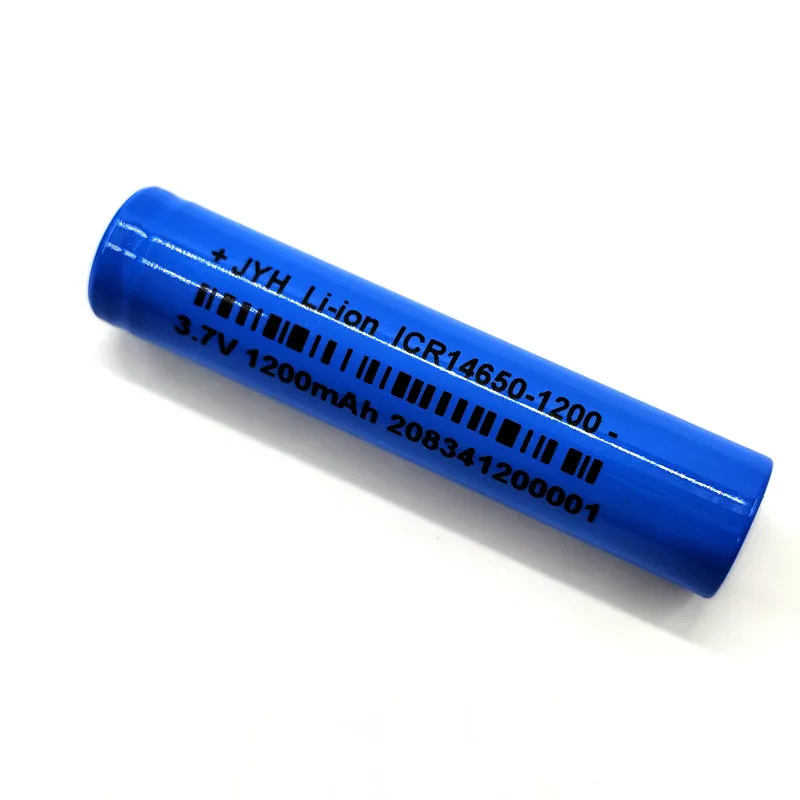

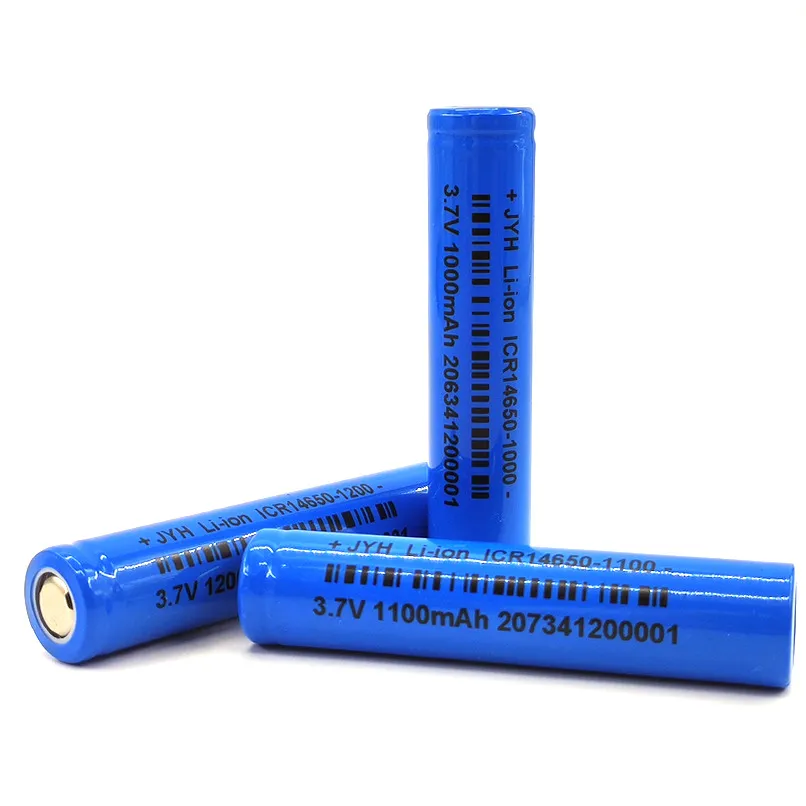

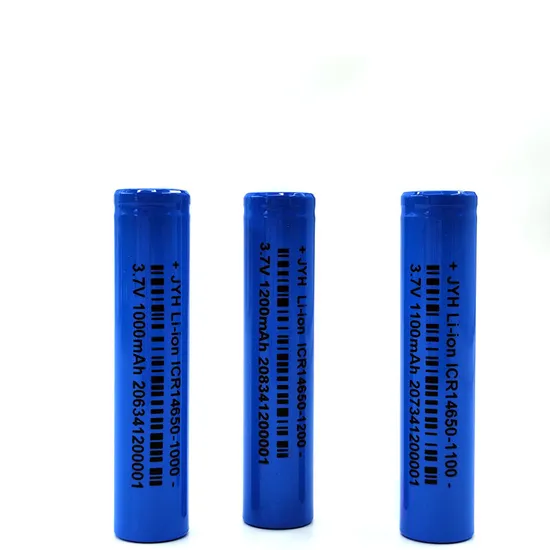

| Model Name | ICR14650-1200 |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1200mAh |
| Typical Capacity | 1250mAh after standard charge and standard discharge |
| Minimum Capacity | 1150mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 600mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤12mA |
| Fast Charge | Constant current at 1200mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤12mA |
| Standard Discharge | 240mA to 2.0V |
| Fast Discharge | 1200mA to 2.0V |
| Maximum Continuous Charge Current | 1200mA |
| Maximum Continuous Discharge Current | 2400mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Storage Temperature | <1 year -20ºC to 25ºC <3 months -20ºC to 40ºC <30days -20ºC to 50ºC |
| Typical Weight | 26g |
