Why Batteries Fail in The Cold And How To Fix It

Winter weather brings a unique set of challenges for portable electronics and heavy-duty equipment alike. You step outside on a freezing morning, and a fully charged device suddenly shuts down. This frustrating scenario happens constantly during the colder months, leaving people without power exactly when they need it most.

The root cause of this problem lies deep within the chemical structure of your power source. When the temperature drops below freezing, the internal reactions required to generate electricity slow down significantly. Internal resistance spikes, causing the available power to plummet and making it seem as though your energy has simply vanished into the frigid air.

Understanding the mechanics behind this failure is the first step toward finding a dependable solution for harsh environments. By exploring how specialized technology, such as a low temperature battery, is specifically designed to combat freezing conditions, you can make smarter choices for outdoor gear, emergency lighting, and solar storage. This guide explains why standard cells fail in the cold and how modern engineering can keep your systems running year-round.

The chemistry behind cold weather power loss

To understand why power systems struggle in cold climates, it helps to know how they generate electricity in the first place. Most modern rechargeable cells rely on a chemical reaction where ions move between an anode and a cathode through a liquid electrolyte. This continuous flow of ions creates the electrical current that powers your devices.

When the temperature drops, that liquid electrolyte begins to thicken. It becomes much more difficult for the ions to travel freely between the two sides of the cell. As a result, the internal resistance increases drastically. The system must work much harder to push the same amount of current through the thickened electrolyte, which causes a significant drop in voltage and available capacity.

For the end user, this chemical slowdown presents itself as a rapidly draining power gauge. A cell that operates perfectly at room temperature might only deliver half of its rated capacity when exposed to sub-zero conditions. If the voltage drops low enough, the device's built-in management system will completely shut down the power to protect the internal circuitry.

The dangers of standard cells in freezing conditions

Loss of power is not the only problem associated with cold weather operations. Attempting to charge standard lithium-ion cells at low temperatures can lead to severe permanent damage.

When you apply a charge to a standard cell in freezing conditions, the ions cannot insert themselves properly into the carbon anode. Instead of absorbing into the material, the lithium builds up on the surface of the anode, creating a metallic coating. This process is known as lithium plating.

Lithium plating permanently reduces the overall capacity of the cell. Worse, it can cause microscopic metal spikes, known as dendrites, to grow inside the casing. If these dendrites puncture the separator between the anode and cathode, they can create an internal short circuit. In order to solve the safe issue related to winter charging, engineers have had to develop entirely new chemical compositions designed specifically for extreme climates.

Finding the right low temperature battery

Standard electronics might fail in the snow, but critical infrastructure and emergency equipment cannot afford to lose power. To meet the demands of harsh winter environments, manufacturers like JYH Technology have engineered specialized energy storage solutions that perform flawlessly when the thermometer drops.

These advanced cells utilize modified electrolytes and highly optimized electrode designs. This allows the ions to flow smoothly even when temperatures fall well below freezing.

The benefits of a low temperature LiFePO4 battery

One of the most popular solutions for off-grid and industrial applications is the low temperature LiFePO4 battery. Lithium Iron Phosphate (LiFePO4) chemistry is already renowned for its exceptional safety profile and long lifespan. By tweaking the internal chemistry for cold climates, manufacturers have created a highly resilient power source.

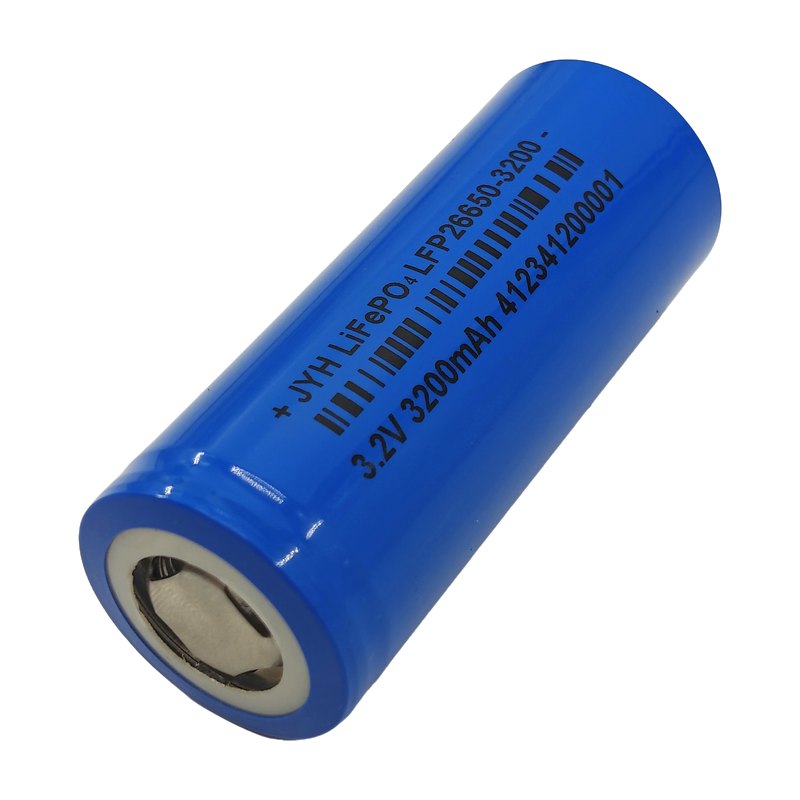

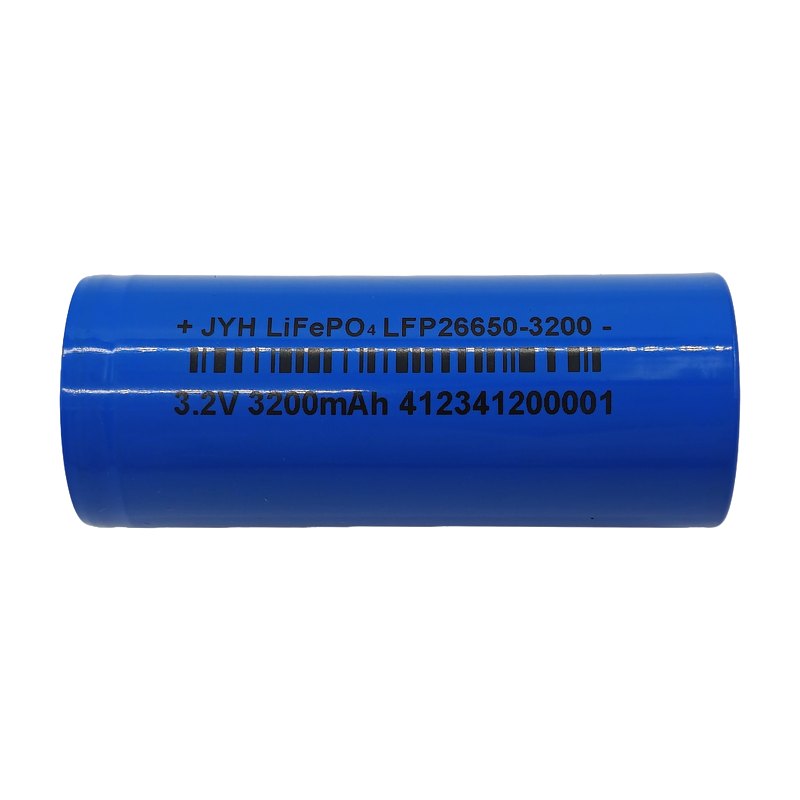

Advanced cold weather LiFePO4 models, such as those developed by JYH Technology, can safely charge and discharge in environments as cold as -20°C, retaining more than 80% of their total capacity. Some specialized versions can even accept a charge at -40°C without requiring external heating components. This makes them an ideal choice for outdoor solar lights, emergency exit signs, and off-grid power banks that sit exposed to the winter elements.

The power of a lithium titanate battery

For environments that experience extreme cold and require rapid charging cycles, a lithium titanate battery (LTO) offers unparalleled performance. Instead of using carbon on the anode, these cells utilize lithium titanate nanocrystals. This vastly increases the surface area of the anode, allowing electrons to enter and exit the material incredibly fast.

Because of this unique structural design, LTO technology completely eliminates the risk of lithium plating during cold weather charging. High-quality LTO cells can safely charge and discharge at -40°C while still delivering more than 60% of their rated capacity. Furthermore, they boast an incredibly long operational life, often exceeding 10,000 cycles at a 100% depth of discharge. While they generally have a lower energy density than LiFePO4 options, their extreme temperature tolerance makes them perfect for rugged industrial equipment and cold storage facilities.

Comparison of Battery Types in Low Temperature Conditions

How modern engineering helps solve the safe issue

Safety should always be the primary concern when selecting a power source for commercial or industrial applications. Traditional batteries exposed to harsh winters require complex heating mats and thermal management systems to prevent internal damage during charging. If those heating systems fail, the equipment is put at serious risk of internal shorting and thermal runaway.

By choosing a chemistry inherently designed for the cold, you bypass the need for external heating components entirely. Using a low temperature LiFePO4 battery or an LTO cell removes the risk of lithium plating and dendrite formation. This engineering approach helps effectively solve the safe issue, ensuring that emergency lights, medical devices, and outdoor sensors remain operational and secure regardless of the weather.

Power your next project with reliable cold weather tech

Freezing temperatures do not have to dictate the reliability of your equipment. While standard chemical reactions slow down and fail in the snow, modern advancements in energy storage have provided robust alternatives that thrive in extreme conditions.

If you are designing outdoor equipment or need a dependable energy source for emergency lighting in cold climates, upgrading to specialized cells is essential. Companies like JYH Technology offer comprehensive battery solutions tailored to withstand the harshest environments. Whether you need the high safety and strong capacity of a cold weather LiFePO4 cell or the extreme resilience of an LTO battery, selecting the right chemistry ensures your operations never freeze up. Reach out to a dedicated battery solutions provider today to find the perfect fit for your winter power needs.
