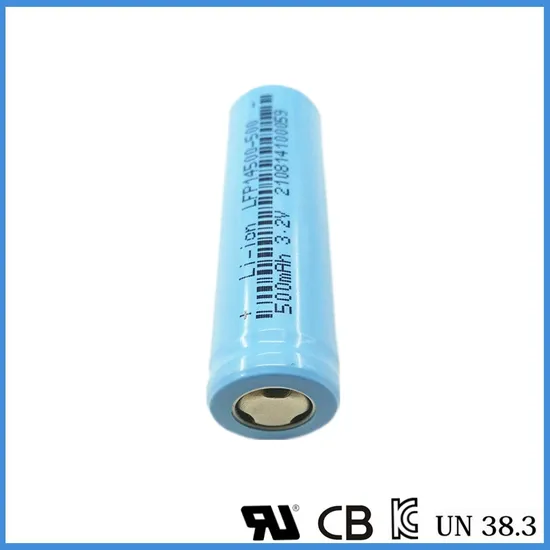

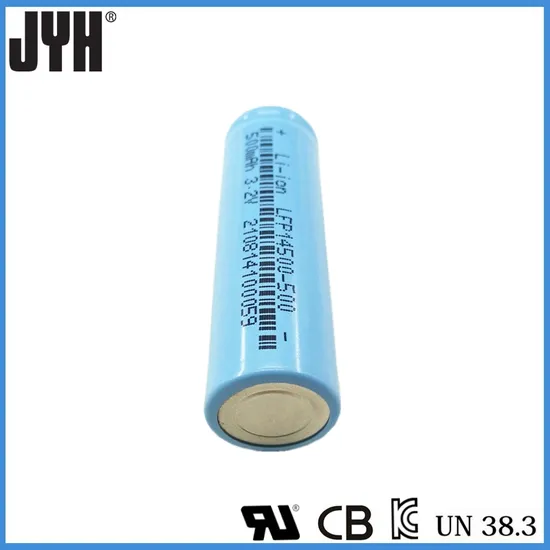

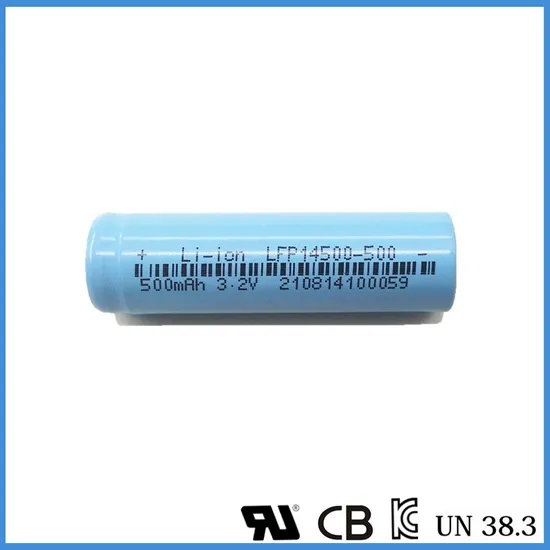

| Model | LFP14500-500 |
| Nominal Voltage | 3.2V |
| Typical Capacity | 520mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 250mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤5mA |
| Fast Charge | Constant current at 500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤ 5mA |
| Standard Discharge | 100mA to 2.0V. |
| Fast Discharge | 500mA to 2.0V. |
| Maximum Continuous Charge Current | 500mA |
| Maximum Continuous Discharge Current | 1500mA |
| Operating Temperature | Charge 0°C to 45°C
Discharge -20°C to 60°C |
| Dimensions | 14.5*49.5mm |
| Typical Weight | 17.5g |
|
|

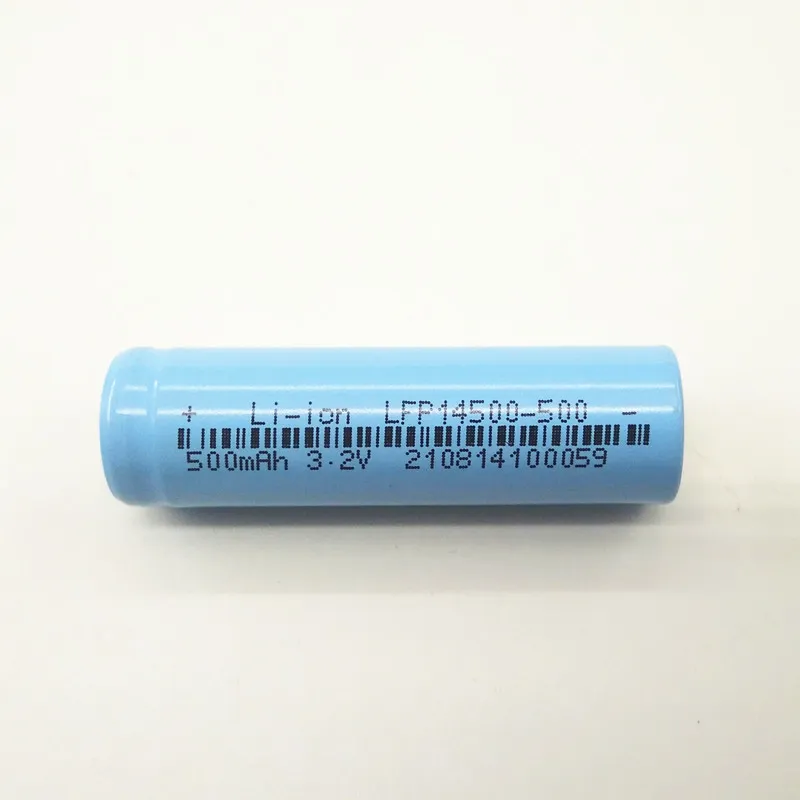

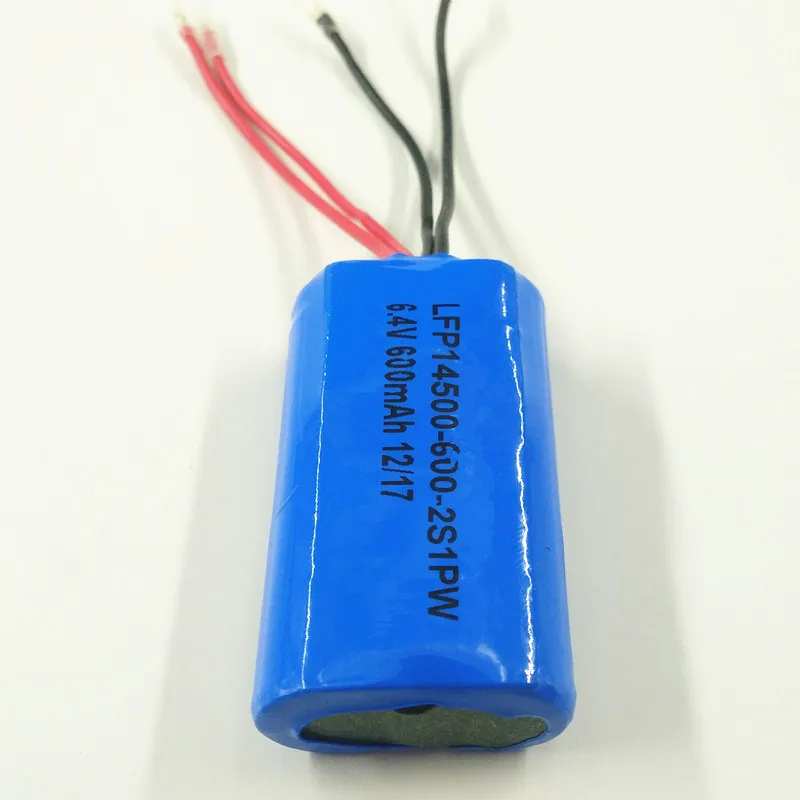

| LFP14500-500 Cell | LFP14500 battery Pack |
*With differnt configurations of parallel and series connection, we can customize various battery pack as per requirement. Please feel free to contact us for a suitable power solution. · Warranty As long as the cell is treated in accordance with this product specification, one year limited warranty against workmanship
and material defects is given. · High Safety High and stable performance & heat resistant. Top design and technology to prevent risk of explosion. The battery pack is impact proof and can sustain heavy external shocks. · Reliable Quality We have strict quality control and all products have to be tested. battery pack that guarantee our running distance and safe requirement are up-to standard. · OEM/ODM Welcome We can provide you with custom made service for battery pack sample order and testing. Battery can fit for emergency lights, Miner lights, outdoor lights
and other lighting goods. Medical devices, Solar/wind power station, Communicaton base station, Robot, Electric logistics vehicle, Electric drills,etc.
Our certificates include UL, CB, KC etc. certificates, and UN38.8/MSDS/ROHS report.

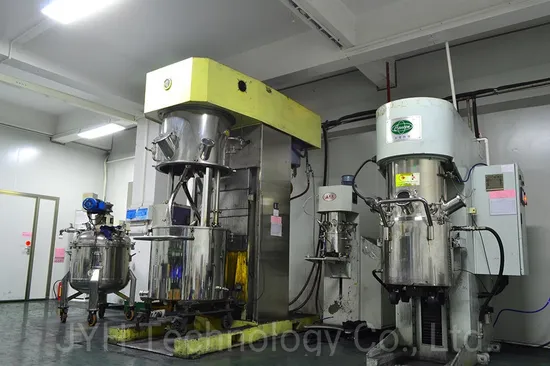

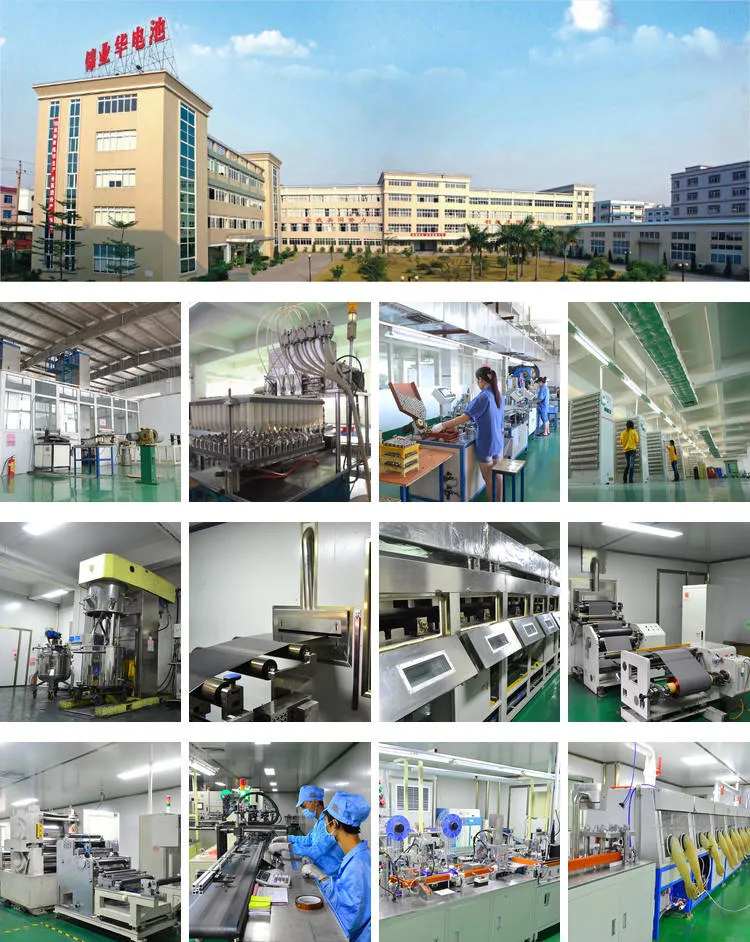

JYH Technology Co., Ltd.,specializes in the R&D, manufacture, sales and service of various rechargeable batteries.Established
in 1999, located in Jiangmen,Which is close to Shenzhen,Guangzhou and Zhongshan so that export is very convenient. In our ISO 9001:2015
- Certified factory, Which covers an area of 30,000 square meters, and accommodates over 500 employees, daily capacity 500,000 pieces.

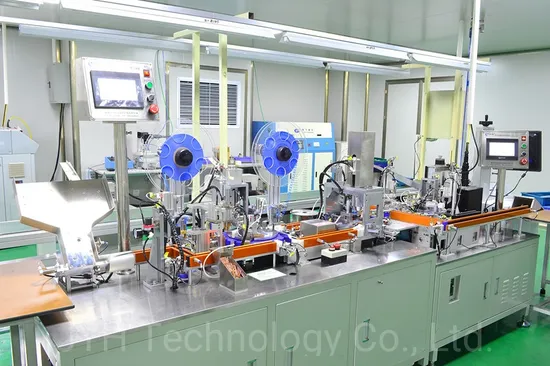

With professional technician team, experienced workers and advanced equipments, we are determined to provide you high-quality products.

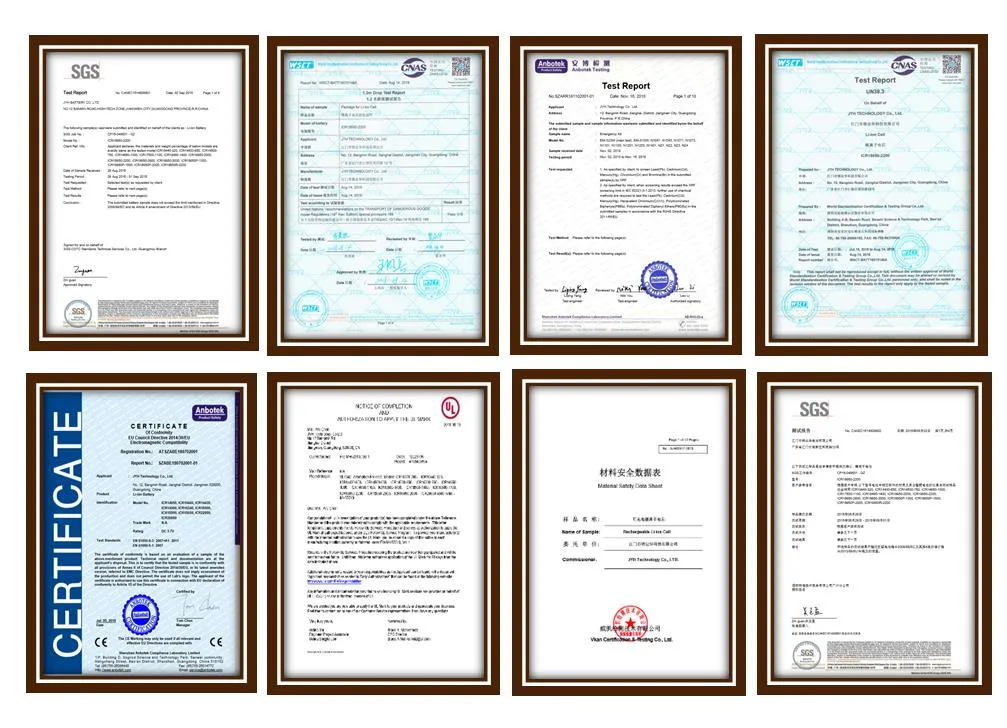

Certificates
Our Products acquire UL,CB,KC, etc. certificates ,and UN38.8/MSDS/ ROHS reports which are easy for battery transportation.
Customized Products
JYH also has established good partnerships with abroad enterprises on Customized/ OEM/ODM projects, so we can help you to expand your market. Welcome to take samples to test, more details please contact us.
Strict Quality Control
We always insist the trust and honest, Quality service is our principle, Satisfies all the customers is our tenet. JYH strictly follow the requirment of ISO9001 quality management system. Our advantage is that our own cells can ensure the quality of products, and which can be customized
LI-ION BATTERIES are regarded as dangerous goods during transportation. We have long-time cooperation with
shipping companies who are professional in Rechargeable cells/battery oversea transportation.
