It is well known that normal lithium-ion batteries are not good at low-temperature environments, lithium precipitation will occur if inappropriate usage, which is very likely to have a decrease in both electric and safety performance.
In order to effectively improve this major deficiency, JYH has expended a great deal of research and development efforts, adjusted and optimized the formula of the battery cells. Through unremitting efforts, we have successfully enabled lithium iron phosphate to have excellent performance for charging and discharging at sub-zero conditions. Low temperature batteries can not only be charged below zero degrees, but the discharge capacity can reach nearly 90%.
| Availability: | |
|---|---|
| Quantity: | |
LFP26650L-3000
JYH

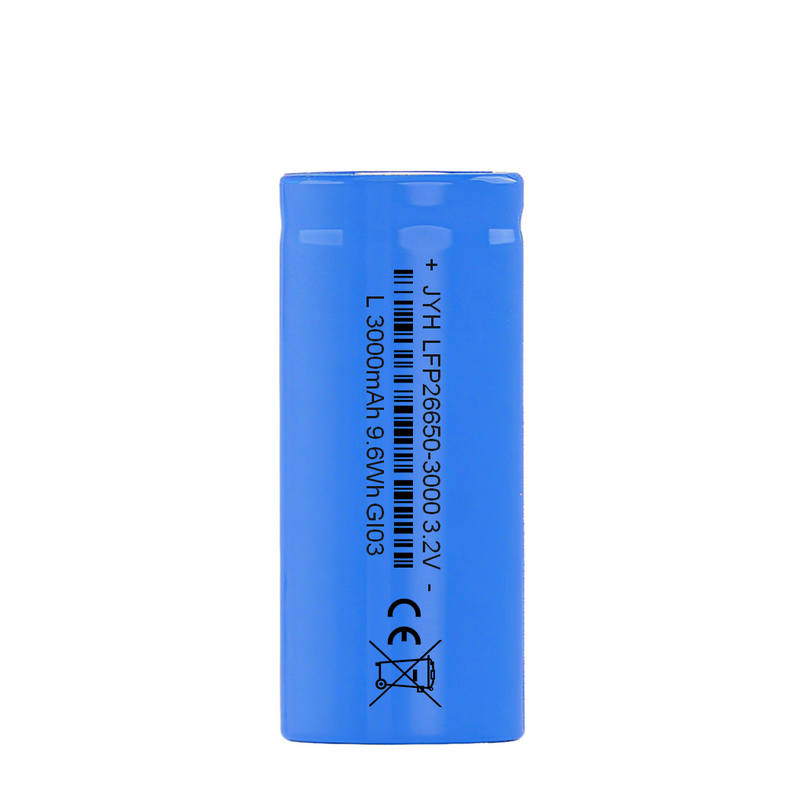

The Low Temperature LFP26650-3000 is a specialized lithium iron phosphate battery engineered for extreme cold environments, delivering 3000mAh nominal capacity (3100mAh typical) with unparalleled -40℃ to 60℃ operational range. Through advanced electrolyte formulation, it maintains 90% discharge capacity at -20℃, setting new standards for polar and high-altitude applications.
| Model | LFP26650-3000 L Type |
| IEC Designation | IFpR27/66 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 3000mAh |
| Typical Capacity | 3100mAh after standard charge and standard discharge |
| Minimum Capacity | 2900mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 1500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤30mA |
| Fast Charge | Constant current at 3000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤30mA |
| Standard Discharge | 600mA to 2.0V |
| Fast Discharge | 3000mA to 2.0V |
| Maximum Continuous Charge Current | 600mA (-20℃~0℃) 1500mA (0℃~15℃) 3000mA (15℃~45℃) 1500mA (45℃~60℃) |
| Maximum Continuous Discharge Current | 9000mA |
| Operating Temperature | Charge -20℃ to 45℃ Discharge -40℃ to 60℃ |
| Storage Temperature | <1 year-20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 82g |
Arctic-Grade Performance
Charges at -20℃ (industry breakthrough)
Discharges at -40℃ with >85% capacity retention
Extended Cycle Life
500+ cycles at -20℃
<5% capacity degradation per year
| Parameter | LFP26650L-3000 | Standard LiFePO4 |
|---|---|---|
| Low-Temp Charge | -20℃ | 0℃ (Short Term) |
| -30℃ Discharge Capacity | >60% | <40% |
| Cycle Life @-20℃ | 500 cycles | Not Support Low Temperature Cycling |
▌ Polar Operations
• Antarctic research station equipment
• Arctic oil/gas exploration devices
• Glacier monitoring systems
▌ Defense & Aerospace
• Cold-weather military communications
• High-altitude UAV power systems
• Satellite ground station backup
• UN38.3 Transportation Certified
• EU 2023/1542 Battery Regulation
• CE/RoHS Compliant
