LFP26650L-3200
JYH

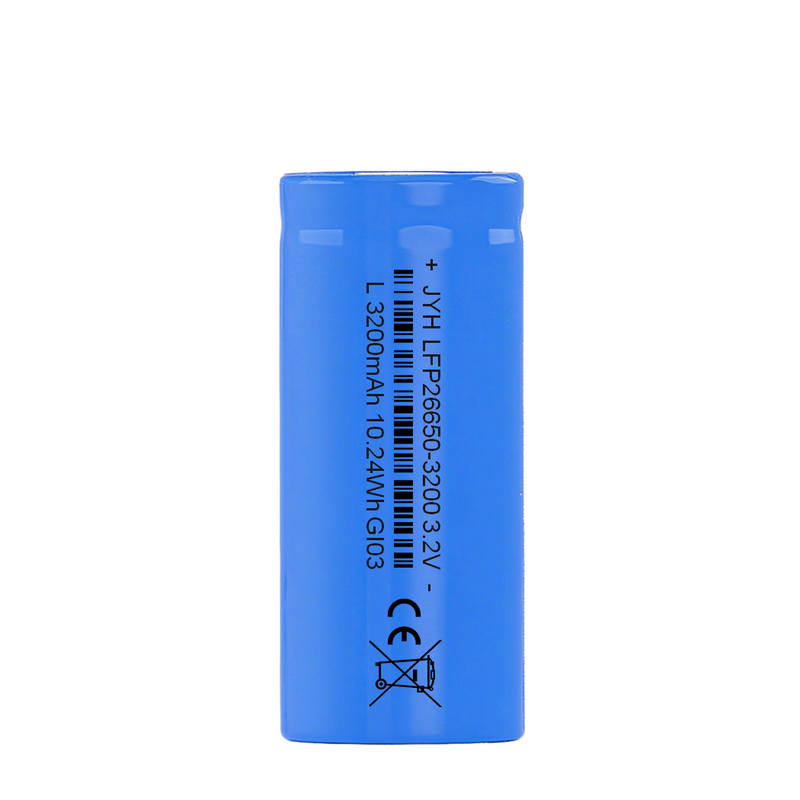

The low temperature LFP26650 is a breakthrough lithium iron phosphate battery engineered for extreme cold environments. Defying the limitations of conventional lithium batteries, it delivers stable discharge performance across an ultra-wide temperature range (-40°C to 60°C) with safe charging capability at subzero temperatures—no lithium plating risks.
| Model | LFP26650-3200 L Type |
| IEC Designation | IFpR27/66 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 3200mAh |
| Typical Capacity | 3300mAh after standard charge and standard discharge |
| Minimum Capacity | 3100mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 1600mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤32mA |
| Fast Charge | Constant current at 3200mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤32mA |
| Standard Discharge | 640mA to 2.0V |
| Fast Discharge | 3400mA to 2.0V |
| Maximum Continuous Charge Current | 640mA (-20℃~0℃) 1600mA (0℃~15℃) 3200mA (15℃~45℃) 1600mA (45℃~60℃) |
| Maximum Continuous Discharge Current | 9600mA |
| Operating Temperature | Charge -20℃ to 45℃ Discharge -40℃ to 60℃ |
| Storage Temperature | <1 year-20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 85g |
