| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | LFP |
| Quantity: | |
|---|---|

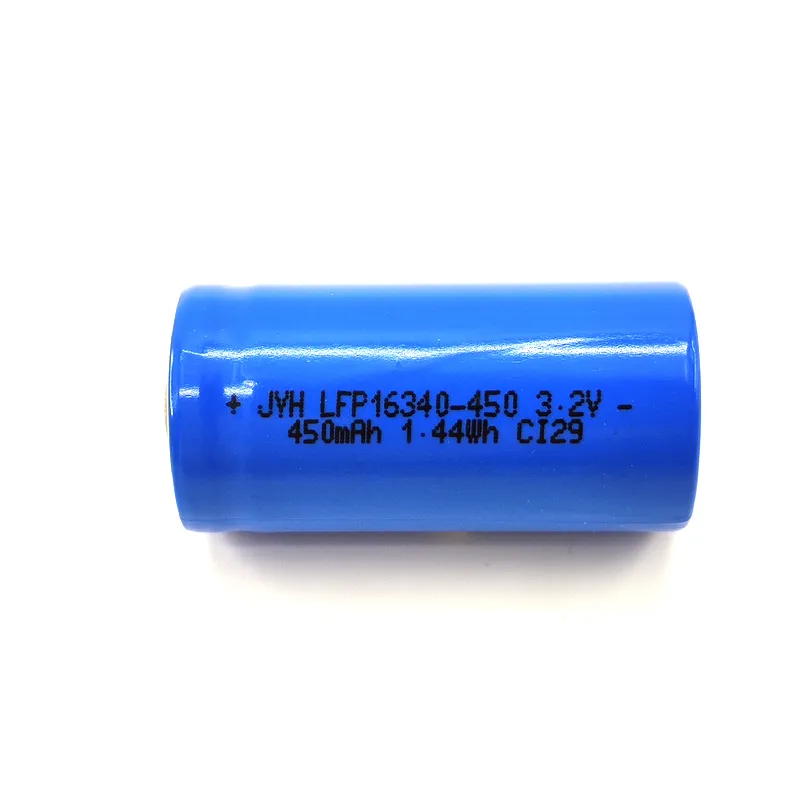

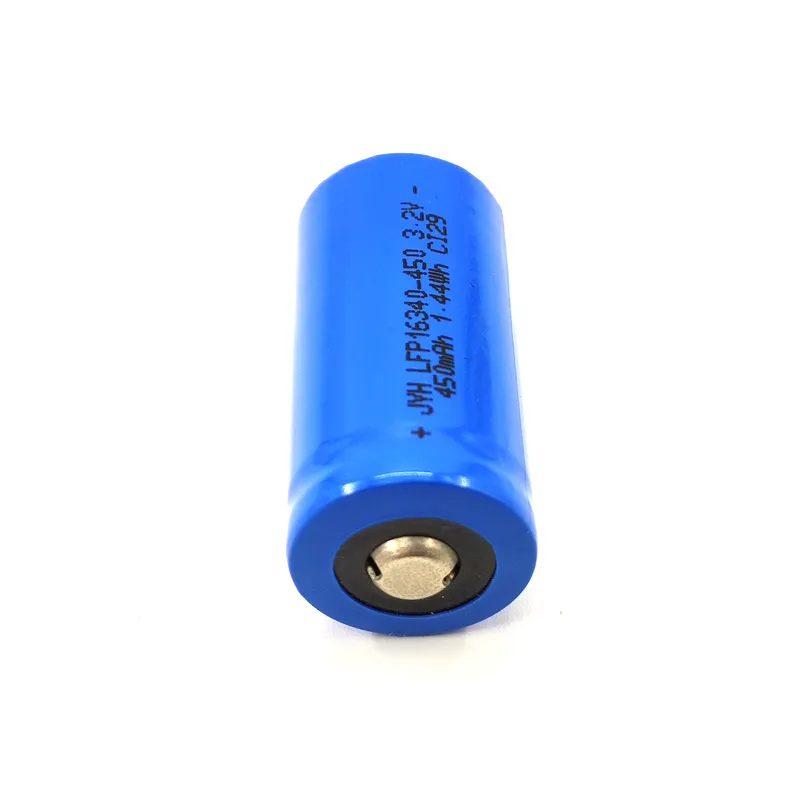

| Model Name | LFP16340-450 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 450mAh |
| Typical Capacity | 420mAh after standard charge and standard discharge |
| Minimum Capacity | 380mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 200mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤4mA |
| Fast Charge | Constant current at 400mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤4mA |
| Standard Discharge | 80mA to 2.0V |
| Fast Discharge | 400mA to 2.0V |
| Maximum Continuous Charge Current | 400mA |
| Maximum Continuous Discharge Current | 1200mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Storage Temperature | <1 year -20ºC to 25ºC <3 months -20ºC to 40ºC <30days -20ºC to 50ºC |
| Typical Weight | 20g |
