| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | LFP |
| Quantity: | |
|---|---|

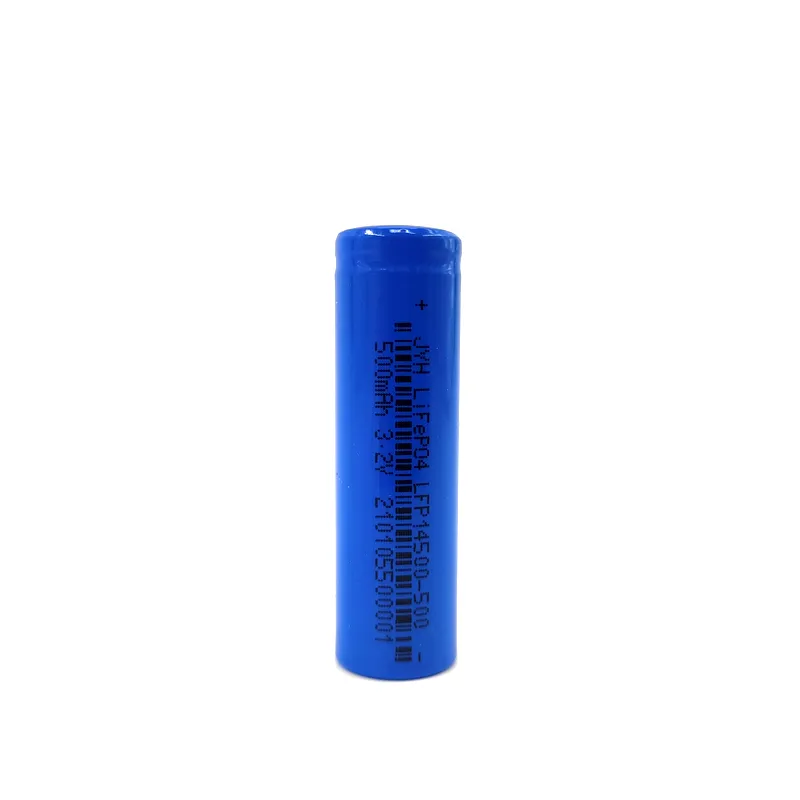

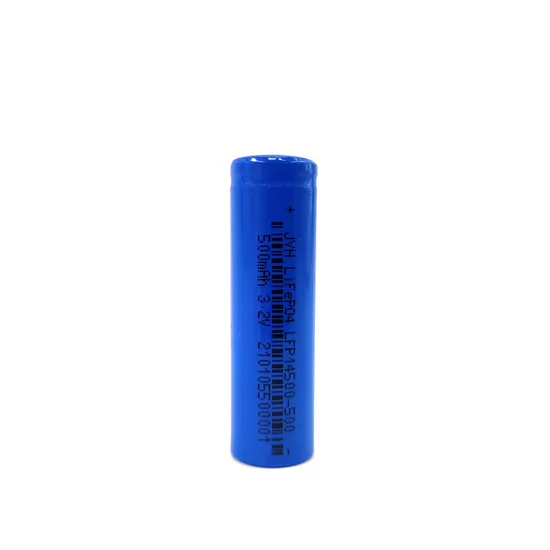

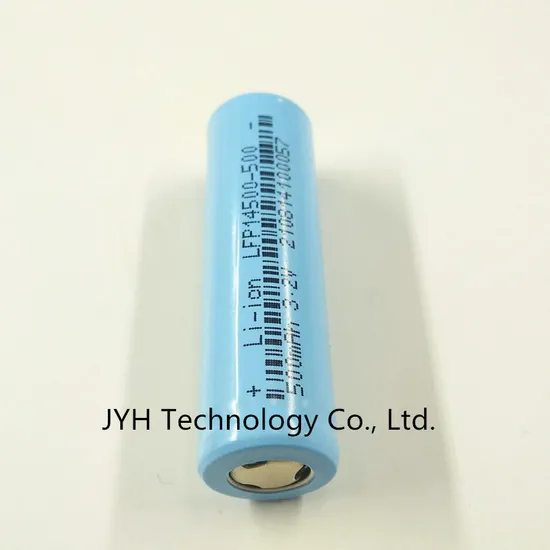

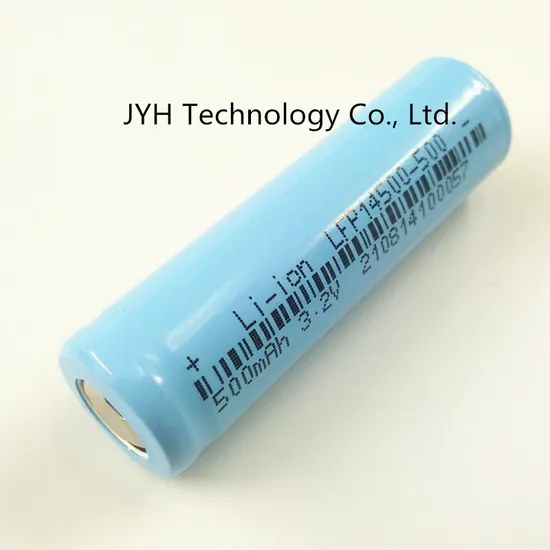

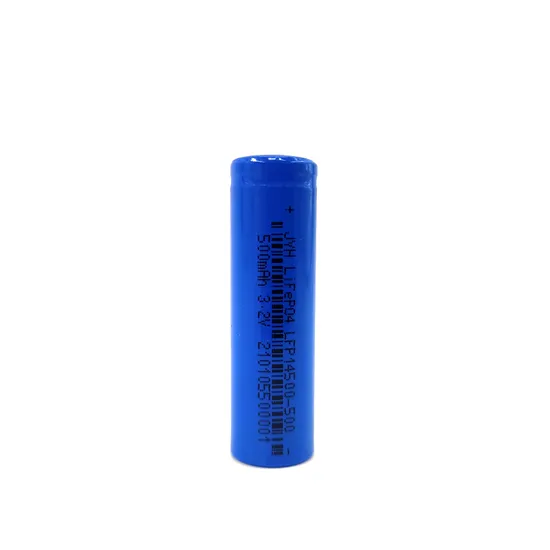

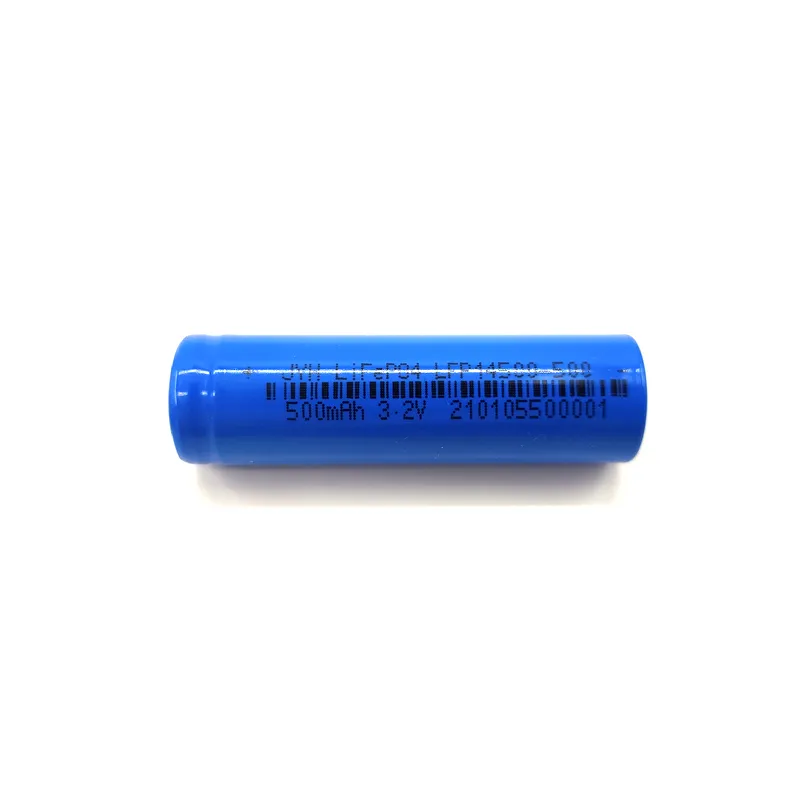

| Model Name | LFP14500-500 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 500mAh |
| Typical Capacity | 525mAh after standard charge and standard discharge |
| Minimum Capacity | 480mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 250mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤5mA |
| Fast Charge | Constant current at 500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤5mA |
| Standard Discharge | 100mA to 2.0V |
| Fast Discharge | 500mA to 2.0V |
| Maximum Continuous Charge Current | 500mA |
| Maximum Continuous Discharge Current | 1500mA |
| Operating Temperature | Charge 0ºC to 45ºC Discharge -20ºC to 60ºC |
| Storage Temperature | <1 year -20ºC to 25ºC <3 months -20ºC to 40ºC <30days -20ºC to 50ºC |
| Typical Weight | 17.5g |
