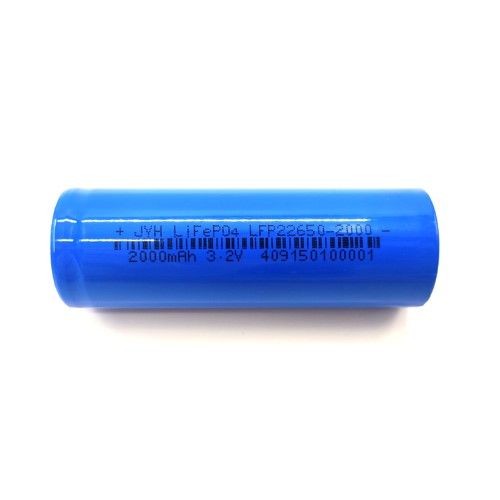

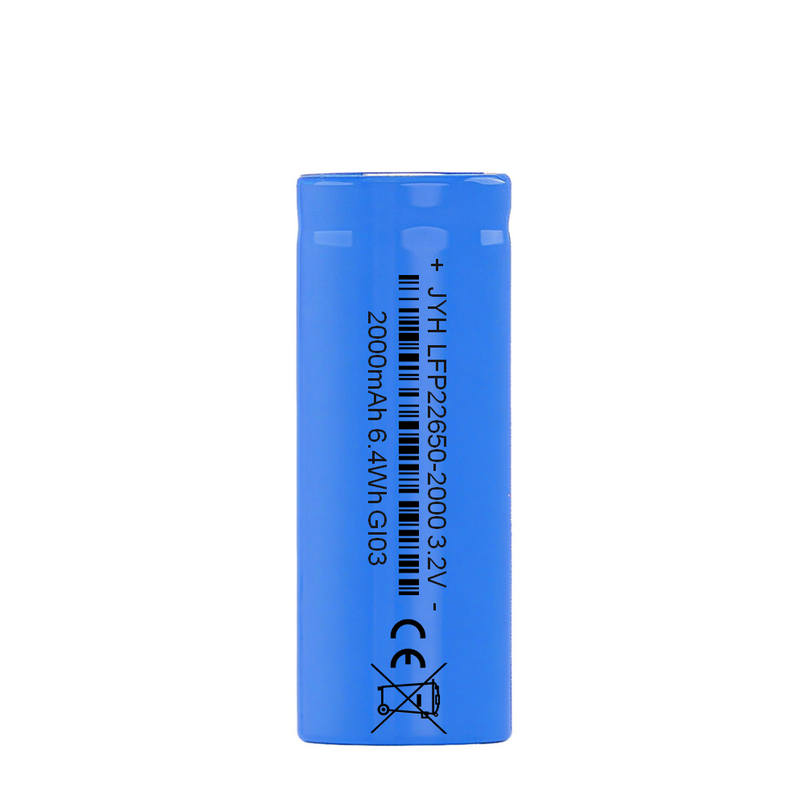

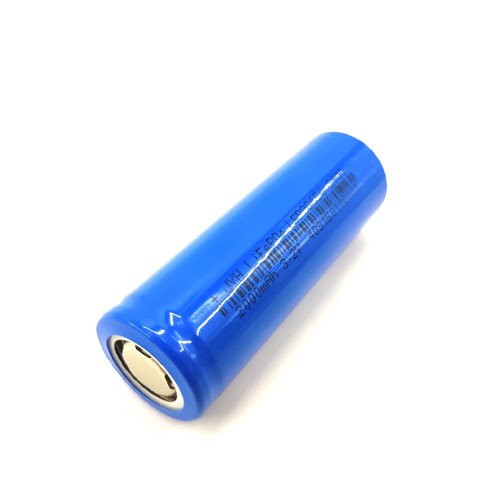

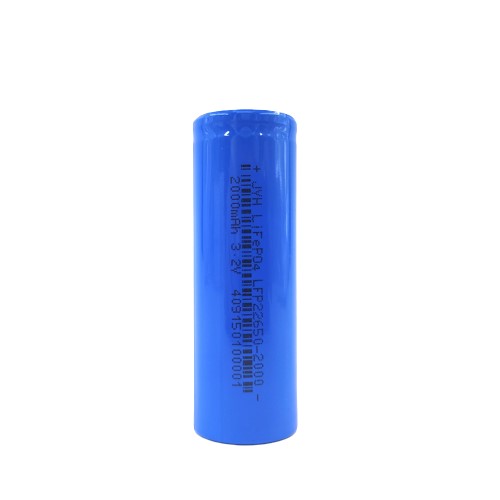

LFP22650-2000 Emergency Light Lithium Iron Phosphate Battery

Product Features

- LiFePO4 has a good performance in high temperature environment, long cycle life and safety.

- Based on latest requirement of IEC/EN 60598-2-22, Lithium battery should comply with IEC 62133-2 and IEC 62620, JYH LiFePO4 batteries can fully meet above standards.

CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- IEC 62620
- IEC 62133-2
- UN38.3
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LFP22650-2000

  • JYH

Previous:
Next:
emergency light 22650 battery emergency light LFP22650 battery emergency light 22650 lifepo4 battery exit light 22650 battery emergency lighting battery IEC-compliant battery
Product Details
Product Description

The LFP22650-2000 is a premium lithium iron phosphate battery designed for mission-critical applications requiring uncompromising safety and longevity. With 2000mAh nominal capacity (2080mAh typical) and exceptional thermal stability, it delivers reliable power for emergency systems, medical devices, and renewable energy storage through 2000+ deep cycles.

Model
LFP22650-2000
IEC61960 Designation
IFpR23/66
Nominal Voltage
3.2V
Nominal Capacity
2000mAh
Typical Capacity
2080mAh after standard charge and standard discharge
Minimum Capacity
1950mAh after standard charge and standard discharge
Standard Charge

Constant current at 1000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤20mA
Fast Charge
Constant current at 2000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤20mA
Standard Discharge
400mA to 2.0V
Fast Discharge
2000mA to 2.0V
Maximum Continuous Charge Current
2000mA
Maximum Continuous Discharge Current
6000mA
Operating Temperature
Charge             0℃ to 45℃
Discharge   -20℃ to 60℃
Storage Temperature
<1 year                  -20℃ to 25℃
<3 months           -20℃ to 40℃
<30days                -20℃ to 50℃
Typical Weight
62g


Certified Applications:

▌ Life Safety Systems
• Emergency exit lighting (EN60598 compliant)
• Elevator emergency power units (ELU)
• Fire alarm system backup

▌ Medical Solutions
• Portable diagnostic equipment
• Patient monitoring devices
• Medical refrigeration backup

▌ Renewable Energy
• Solar street light storage
• Off-grid power systems
• Smart grid backup

Global Certifications:

• (EU) 2023/1542 new battery regulation
• UN38.3 Transportation Safety
• MSDS Documentation Available
