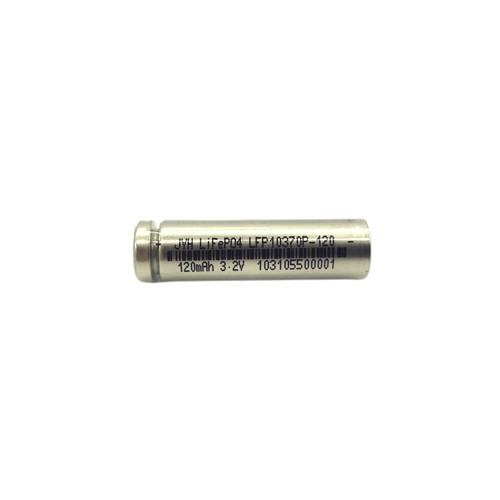

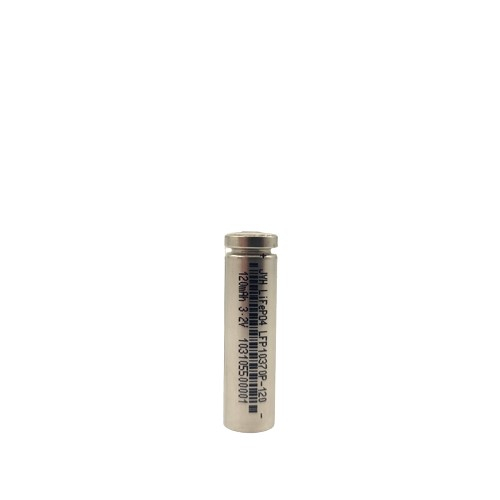

LFP10370-120
JYH
The LFP10370-120 is a groundbreaking lithium iron phosphate battery engineered for ultra-high rate applications, delivering 120mAh nominal capacity (130mAh typical) with exceptional 10C charge and 20C discharge capabilities. Weighing just 7g, this micro power cell sets new standards for rapid energy transfer in compact consumer electronics.
| Model | LFP10370-120 |
| IEC Designation | IFpR11/38 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 120mAh |
| Typical Capacity | 130mAh after standard charge and standard discharge |
| Minimum Capacity | 120mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 60mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤3mA |
| Fast Charge | Constant current at 1200mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤3mA |
| Standard Discharge | 120mA to 2.0V |
| Fast Discharge | 1200mA to 2.0V |
| Maximum Continuous Charge Current | 1200mA |
| Maximum Continuous Discharge Current | 2400mA |
| Operating Temperature | Charge 0℃ to 45℃ Discharge -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 7g |
