LFP18500-800
JYH

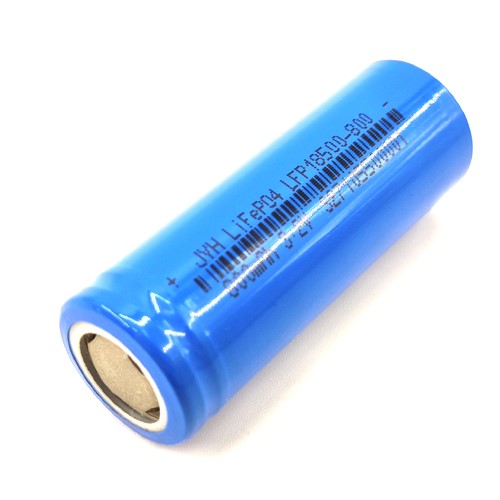

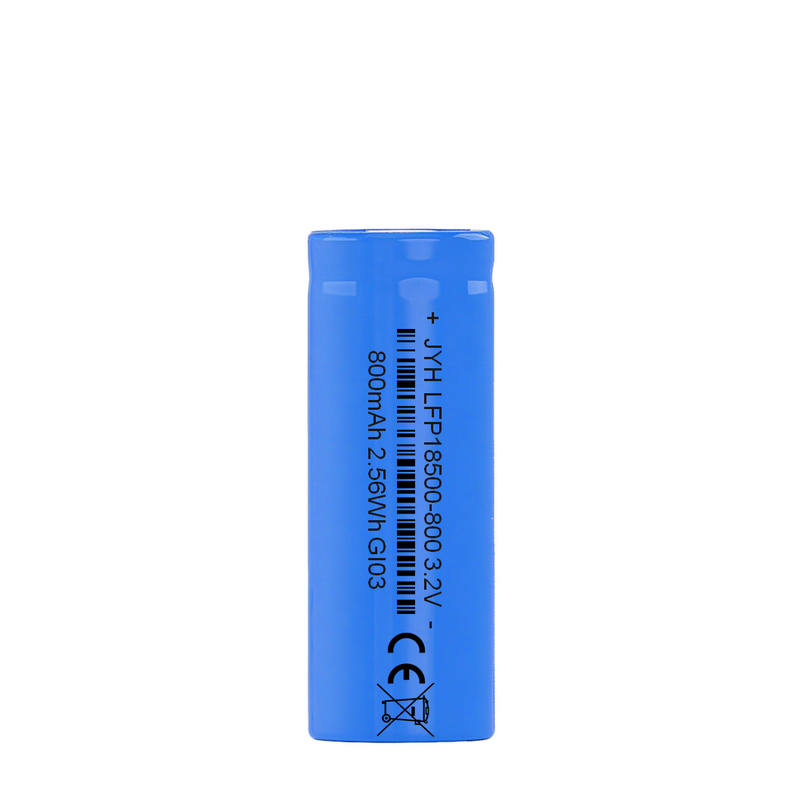

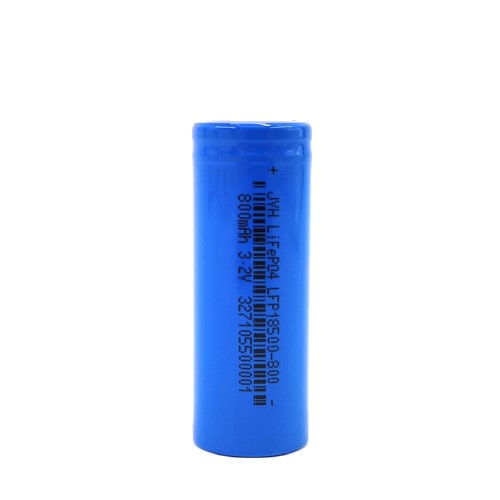

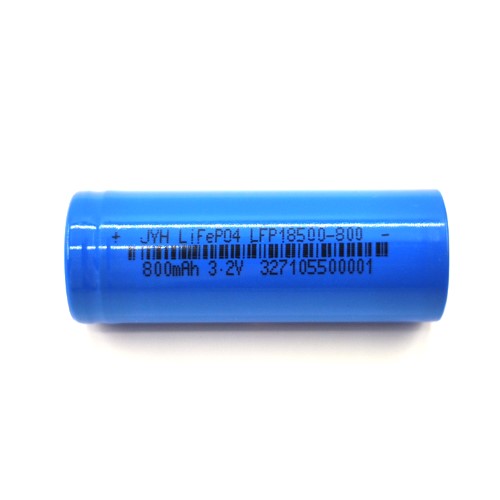

The LFP18500-800 is a premium lithium iron phosphate battery engineered for space-constrained safety applications. With 800mAh nominal capacity (840mAh typical) and full compliance with IEC 62133-2/62620 standards, this compact power solution delivers reliable performance for medical devices and emergency systems through 2000+ deep cycles.
| Model | LFP18500-800 |
| IEC Designation | IFpR19/50 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 800mAh |
| Typical Capacity | 840mAh after standard charge and standard discharge |
| Minimum Capacity | 770mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 400mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤8mA |
| Fast Charge | Constant current at 800mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤8mA |
| Standard Discharge | 160mA to 2.0V |
| Fast Discharge | 800mA to 2.0V |
| Maximum Continuous Charge Current | 800mA |
| Maximum Continuous Discharge Current | 2400mA |
| Operating Temperature | Charge 0℃ to 45℃ Discharge -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 26g |
