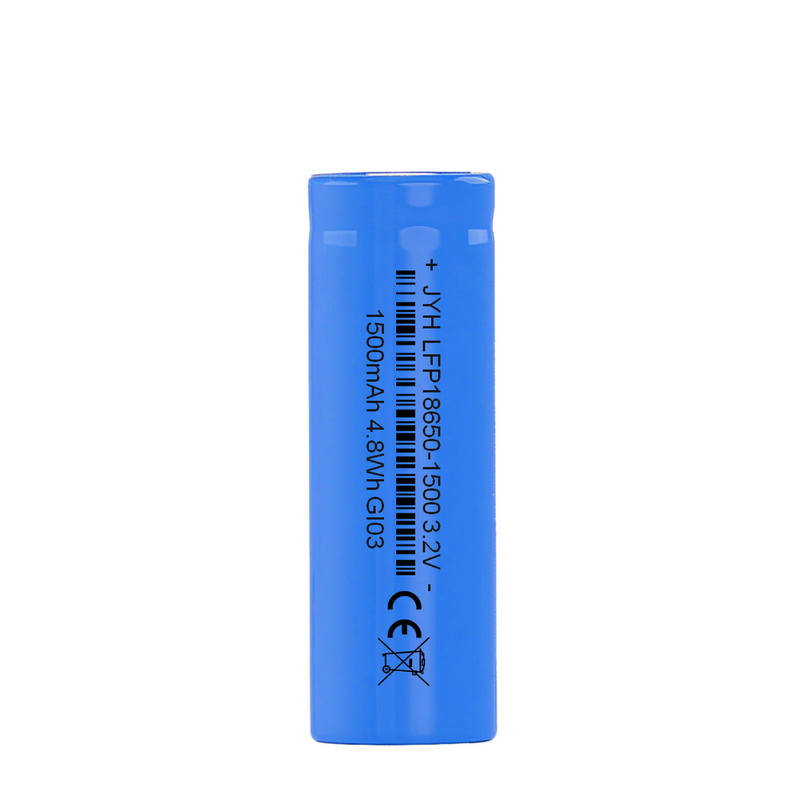

The LFP18650-1500 1S1P is a complete lithium iron phosphate battery pack featuring integrated PCM protection circuitry. Delivering 1500mAh nominal capacity with enhanced safety features, this ready-to-use power solution is designed for critical applications requiring reliable protected power in a single-cell configuration.
Model
| LFP18650-1500 1S1P |
| IEC Designation | 1IFpR19/66 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 1500mAh |
| Typical Capacity | 1500mAh after standard charge and standard discharge |
| Minimum Capacity | 1425mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 300mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤30mA |
| Fast Charge | Constant current at 300mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤30mA |
| Standard Discharge | 120mA to 2.5V |
| Fast Discharge | 300mA to 2.5V |
| Maximum Continuous Charge Current | 0~10℃ 120mA
10~20℃ 300 mA
20~60℃ 600 mA |
| Maximum Continuous Discharge Current | 600mA |
| Operating Temperature | Charge 0℃ to 60℃
Discharge -10℃ to 70℃ |
| Storage Temperature | <1 year-20℃ to 25℃
<3 months -20℃ to 40℃
<30days -20℃ to 50℃ |
| Typical Weight | 23g |

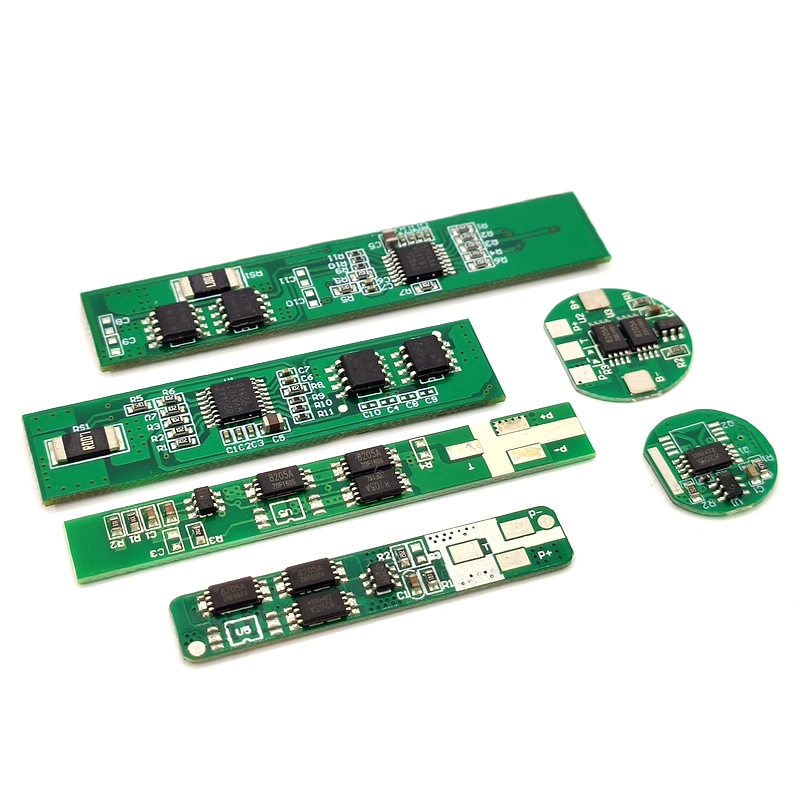

| PCM Electrical Characteristics | PCM Parameters are adjustable depends on different solutions |
| Overcharge detection voltage | 3.90±0.025V |
| Over-discharge detection voltage | 2.00±0.050V |
| Overcurrent detection current | 3.5-7.0A, Cut load, recover after charging |
| Short detection condition | Exterior short circuit
Cut load, recover after charging |
