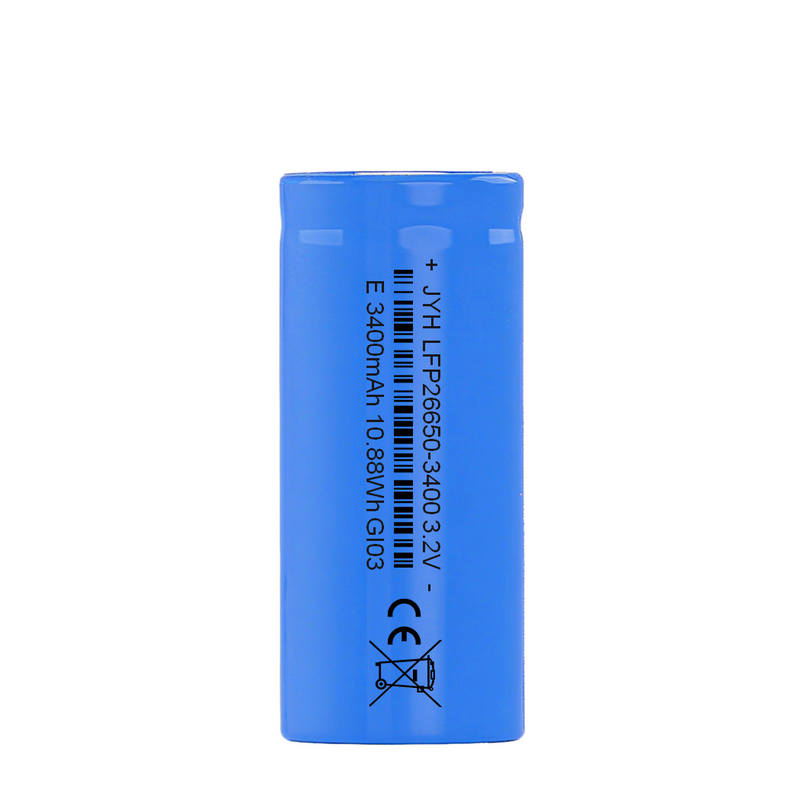

UL924 Compliant LiFePO4 Battery LFP26650-3400

Cold Weather Battery
Product Features

It is well known that normal lithium-ion batteries are not good at low-temperature environments, lithium precipitation will occur if inappropriate usage, which is very likely to have a decrease in both electric and safety performance.

In order to effectively improve this major deficiency, JYH has expended a great deal of research and development efforts, adjusted and optimized the formula of the battery cells. Through unremitting efforts, we have achieved remarkable results, enabling lithium iron phosphate batteries to excel in charging and discharging capabilities under sub-zero temperatures. These low temperature battery not only maintain functionality below zero degrees but also boast a discharge capacity approaching 90%.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LFP26650E-3400

  • JYH

Previous:
Next:
ul924 compliant lifepo4 battery ul924 compliant lifepo4 26650 battery ul924 compliant LFP26650 battery us emergency light battery -5C charging battery low temperature charge lifepo4 battery Cold Weather Battery minus temperature lifepo4 battery 3400mAh cold-weather battery
Product Details
Product Description

The low temperature LFP26650 is a breakthrough lithium iron phosphate battery engineered for cold environments. Defying the limitations of conventional lithium batteries, it delivers stable charge and discharge performance at -5°C with safe charging capability at subzero temperatures—no lithium plating risks.

ModelLFP26650-3400 E Type
IEC DesignationIFpR27/66
Nominal Voltage3.2V
Nominal Capacity3400mAh
Typical Capacity3500mAh after standard charge and standard discharge
Minimum Capacity3300mAh after standard charge and standard discharge
Standard ChargeConstant current at 1700mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤34mA
Fast ChargeConstant current at 3400mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤34mA
Standard Discharge680mA to 2.0V
Fast Discharge3400mA to 2.0V
Maximum Continuous Charge Current

680mA (0℃ to 10℃)

1700mA (10℃ to 20℃)

3400mA (20℃ to 60℃

Maximum Continuous Discharge Current10200mA
Charge and discharge Capacity at -5℃≥ 90% of initial capacity
Storage Temperature<1 year-20℃ to 25℃
<3 months -20℃ to 40℃
<30days -20℃ to 50℃
Typical Weight85g



Key Innovations:

  • Polar-Grade Performance:
    • Stable charging at -5℃ with proprietary anti-lithium-plating technology
    • Support lowest  -20℃ Charging

Technical Superiority:

Feature

JYH LFP26650

Conventional Batteries

Cold Charge Limit

-20℃ (long term)

0℃ (short term)

Cycle Life @-5℃

>500 cycles

<50 cycles (Risky)


Mission-Critical Applications:

▌ Extreme Environment Operations
• Ice road trucking telematics systems
• Antarctic research station backup power
• High-altitude UAVs for mountain rescue

▌ Defense & Aerospace
• Cold-weather tactical communications
• Satellite components in LEO conditions
• Arctic border surveillance equipment

▌ Industrial Cold Chain
• Cryogenic medical storage monitors
• Winterized oil/gas pipeline sensors
• Glacier monitoring station power

Certifications & Compliance:

• EU 2023/1542 Battery Regulation
• UN38.3 / CE / RoHS certified
• MSDS documentation available

• UL1642 and Conform to UL924
