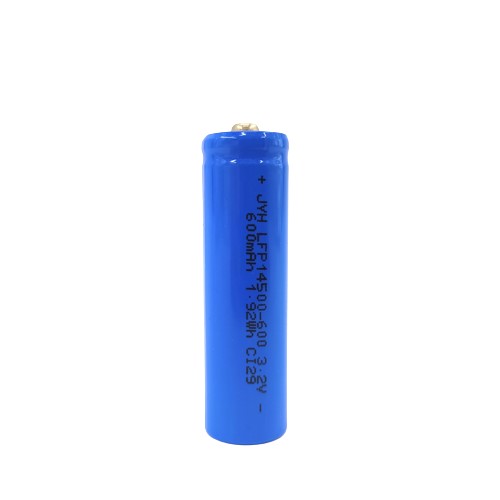

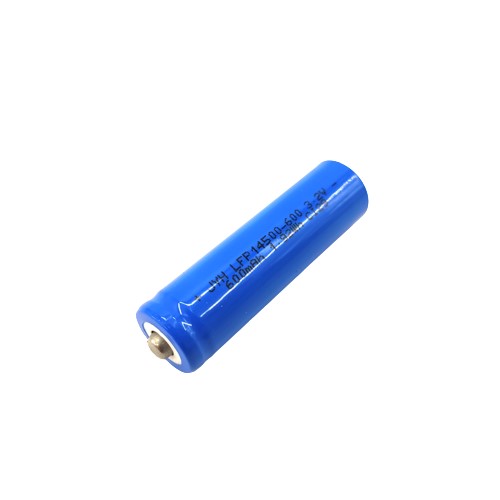

LFP14500-600 Button Top AA-Size Lithium Iron Phosphate Battery

Product Features

Cylindrical Li-FePO4 cell, AA size, Ø14mm, height 50mm, high top, consumer or solar light application

CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- IEC 62620
- IEC 62133-2
- UN38.3

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LFP14500B-600

  • JYH

Previous:
Next:
button top lifepo4 battery button top 14500 lifepo4 battery button top LFP14500 battery 600mAh button top lifepo4 battery 600mAh button top rechargeable battery
Product Details
Product Description

The LFP14500-600 is a button top iron phosphate battery in standard AA size (Ø14×50mm), delivering 600mAh nominal capacity with exceptional cycle life and thermal stability. Designed as a drop-in replacement for alkaline batteries in critical applications, it combines the safety of LiFePO4 chemistry with the convenience of standard AA form factor.


Model
LFP14500-600
IEC Designation
IFpR15/51
Nominal Voltage
3.2V
Nominal Capacity
600mAh
Minimum Capacity
580mAh after standard charge and standard discharge
Standard Charge
Constant current at 300mA charge to 3.65V, then constant
voltage at 3.65V charge till current decline to ≤6mA
Fast Charge
Constant current at 600mA charge to 3.65V, then constant
voltage at 3.65V charge till current decline to ≤6mA

Standard Discharge
120mA to 2.0V
Fast Discharge
600mA to 2.0V
Maximum Continuous Charge Current
600mA
Maximum Continuous Discharge Current
1800mA
Operating Temperature
Charge                    0℃ to 45℃
Discharge           -20℃ to 60℃
Storage Temperature
<1 year                 -20℃ to 25℃
<3 months          -20℃ to 40℃
<30days                 -20℃ to 50℃
Typical Weight
18g


Certified Applications:

▌ Emergency Lighting
• Exit signs and evacuation route markers
• Solar-powered safety lighting
• Elevator emergency power units

▌ Portable Electronics
• Solar garden lights
• Medical diagnostic devices
• IoT sensor networks

Global Certifications:

• IEC 62133-2
• EU 2023/1542 Battery Regulation
• UN38.3 / CE / RoHS
