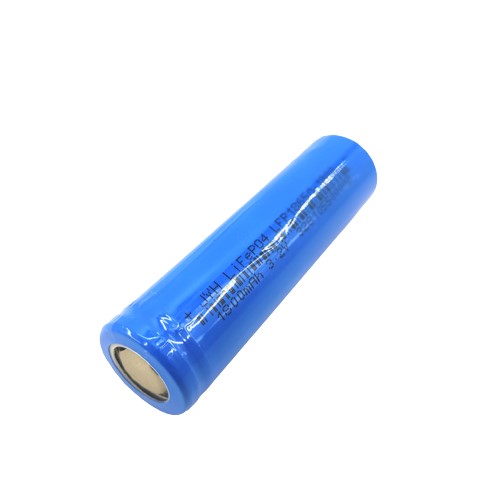

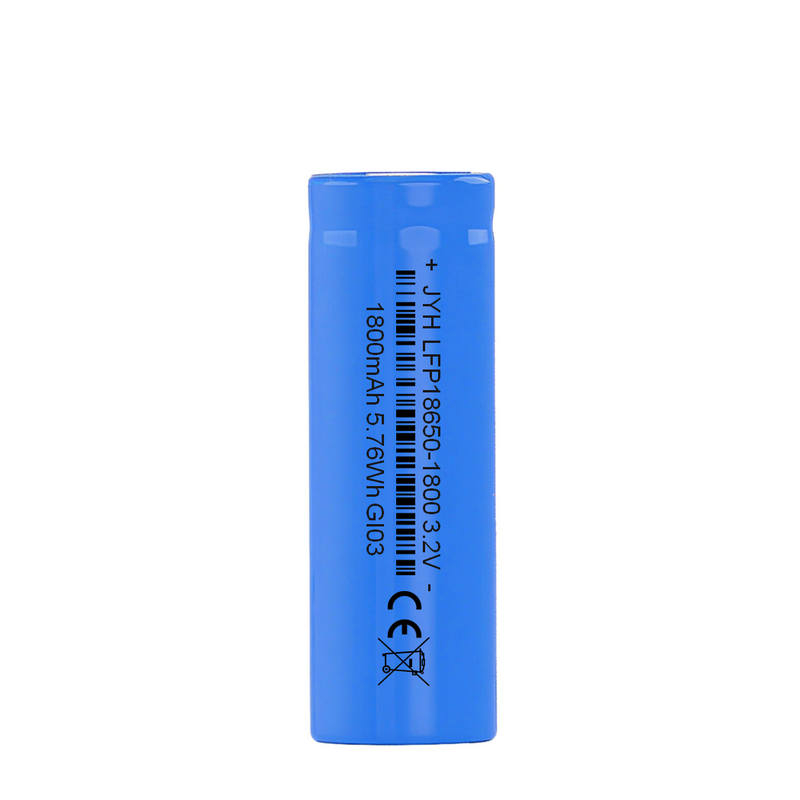

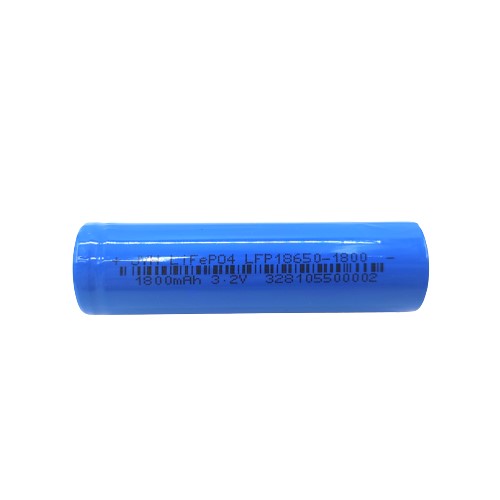

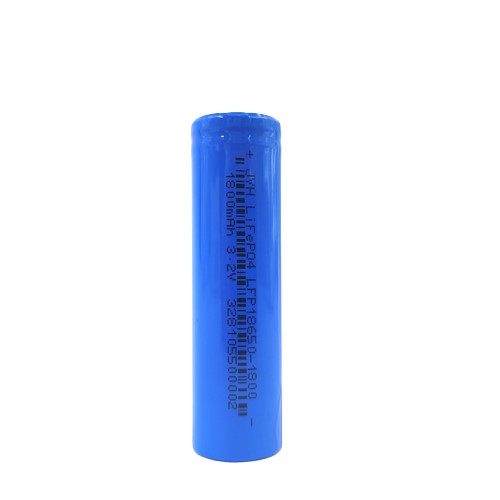

IEC 62133-2 LFP18650-1800 Lithium Iron Phosphate Battery

Product Features

LiFePO4 has a good performance in high temperature environment, long cycle life and safety.

CERTIFICATE OR REPORT:
ROHS Directive (2006/66/EC and its Article 4 amendment of Directive 2013/56/EU)
MSDS

APPLICATION: Emergency Light, ELU, Solar Light, Personal Care, Medical Devices, Roof, Backup Power....


Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LFP18650-1800

  • JYH

Previous:
Next:
LFP18650 emergency light battery high temperature lifepo4 18650 battery Emergency Light 18650 Battery emegency light LFP18650 battery emergency light 18650 lifepo4 battery LFP18650 1800mAh LiFePO4 battery high capacity LFP18650 1800mAh battery IEC62133 18650 lifepo4 battery IEC62620 18650 lifepo4 battery
Product Details
Product Description

The LFP18650-1800 is a premium lithium iron phosphate battery designed for critical applications requiring exceptional safety and reliability. With 1800mAh nominal capacity (1850mAh typical) and superior thermal stability, it delivers consistent performance for emergency systems, medical equipment, and renewable energy storage through 2000+ deep cycles.

Model
LFP18650-1800
IEC Designation
IFpR19/66
Nominal Voltage
3.2V
Nominal Capacity
1800mAh
Typical Capacity
1850mAh after standard charge and standard discharge
Minimum Capacity
1900mAh after standard charge and standard discharge
Standard Charge
Constant current at 900mA charge to 3.65V, then constant
voltage at 3.65V charge till current decline to ≤18mA
Fast Charge
Constant current at 1800mA charge to 3.65V, then constant
voltage at 3.65V charge till current decline to ≤18mA
Standard Discharge
360mA to 2.0V
Fast Discharge
1800mA to 2.0V
Maximum Continuous Charge Current
1800mA
Maximum Continuous Discharge Current
5400mA
Operating Temperature
Charge              0℃ to 45℃
Discharge    -20℃ to 60℃
Storage Temperature
<1 year           -20℃ to 25℃
<3 months    -20℃ to 40℃
<30days         -20℃ to 50℃
Typical Weight
42g


Certified Applications:

▌ Life-Safety Systems
• Emergency lighting (IEC EN 60598-2-22 compliant)
• Elevator backup power (ELU)
• Fire alarm system power

▌ Medical Solutions
• Portable diagnostic equipment
• Patient monitoring devices
• Medical refrigeration backup

▌ Renewable Energy
• Solar-powered street lights
• Off-grid energy storage
• Smart meter backup power

Global Certifications:

• (EU) 2023/1542
• UN38.3 Transportation Safety Certified
• IEC62133 Compliance
• MSDS Documentation Available
