LiFePO4 has a good performance in high temperature environment, when the temperature arrives at 60℃, the discharge capacity increases almost 10%, while cycle life performance better than at room temperature.
| Quantity: | |
|---|---|
LFP14500-600
JYH

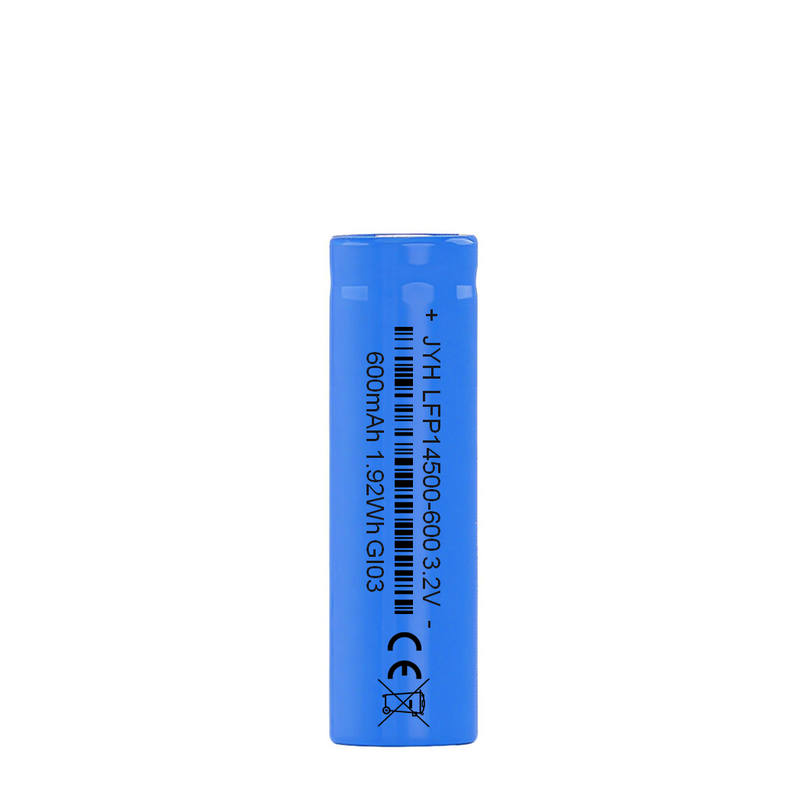

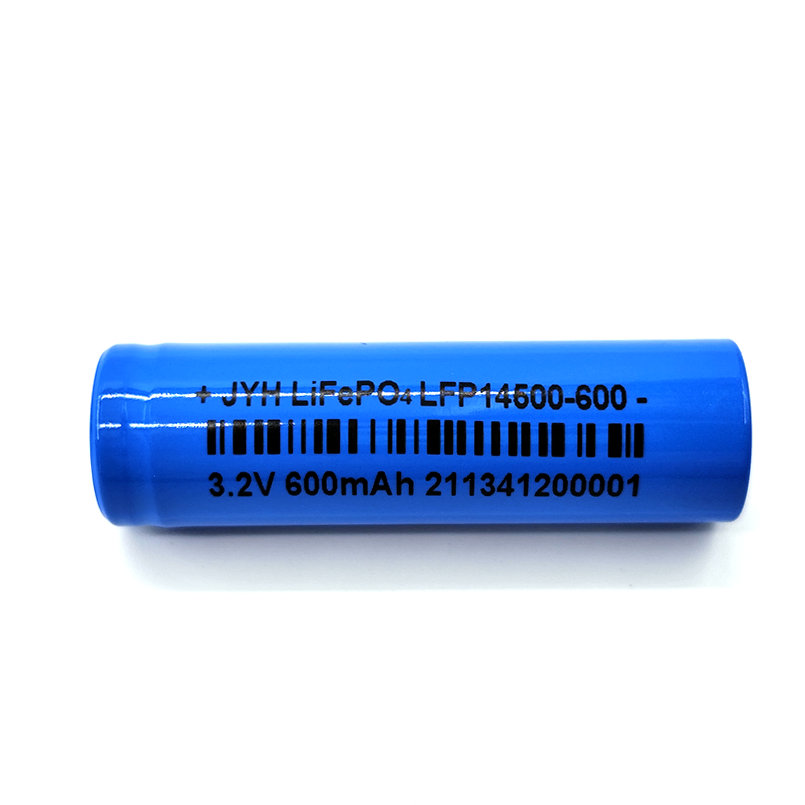

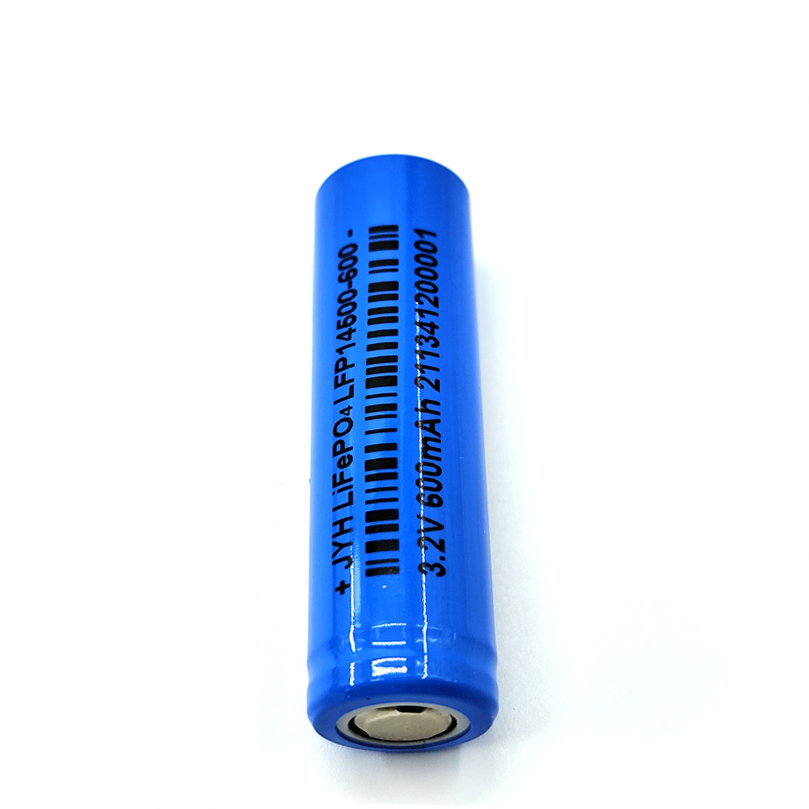

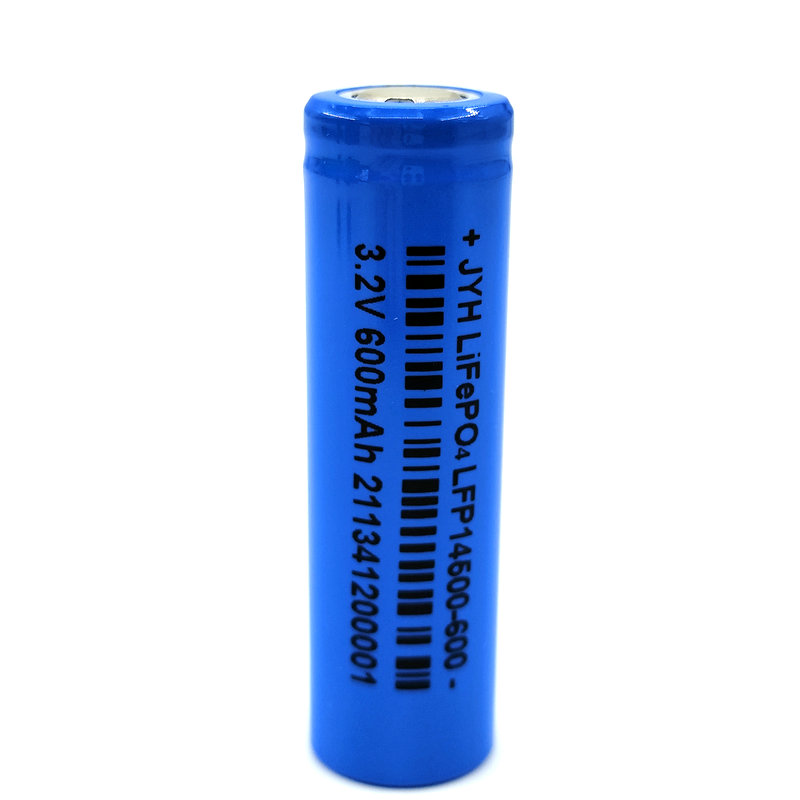

The LFP14500-600 is an advanced lithium iron phosphate battery delivering 600mAh nominal capacity (630mAh typical) with exceptional high-temperature performance. Engineered to thrive in heated environments, it actually gains 10% capacity at 60℃ while maintaining 2000+ cycle life - making it ideal for enclosed and high-ambient-temperature applications.
| Model | LFP14500-600 |
| IEC Designation | IFpR15/50 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 600mAh |
| Typical Capacity | 630mAh after standard charge and standard discharge |
| Minimum Capacity | 580mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 300mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤6mA |
| Fast Charge | Constant current at 600mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤6mA |
| Standard Discharge | 120mA to 2.0V |
| Fast Discharge | 600mA to 2.0V |
| Maximum Continuous Charge Current | 600mA |
| Maximum Continuous Discharge Current | 1800mA |
| Operating Temperature | Charge 0℃ to 60℃ Discharge -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 18g |
