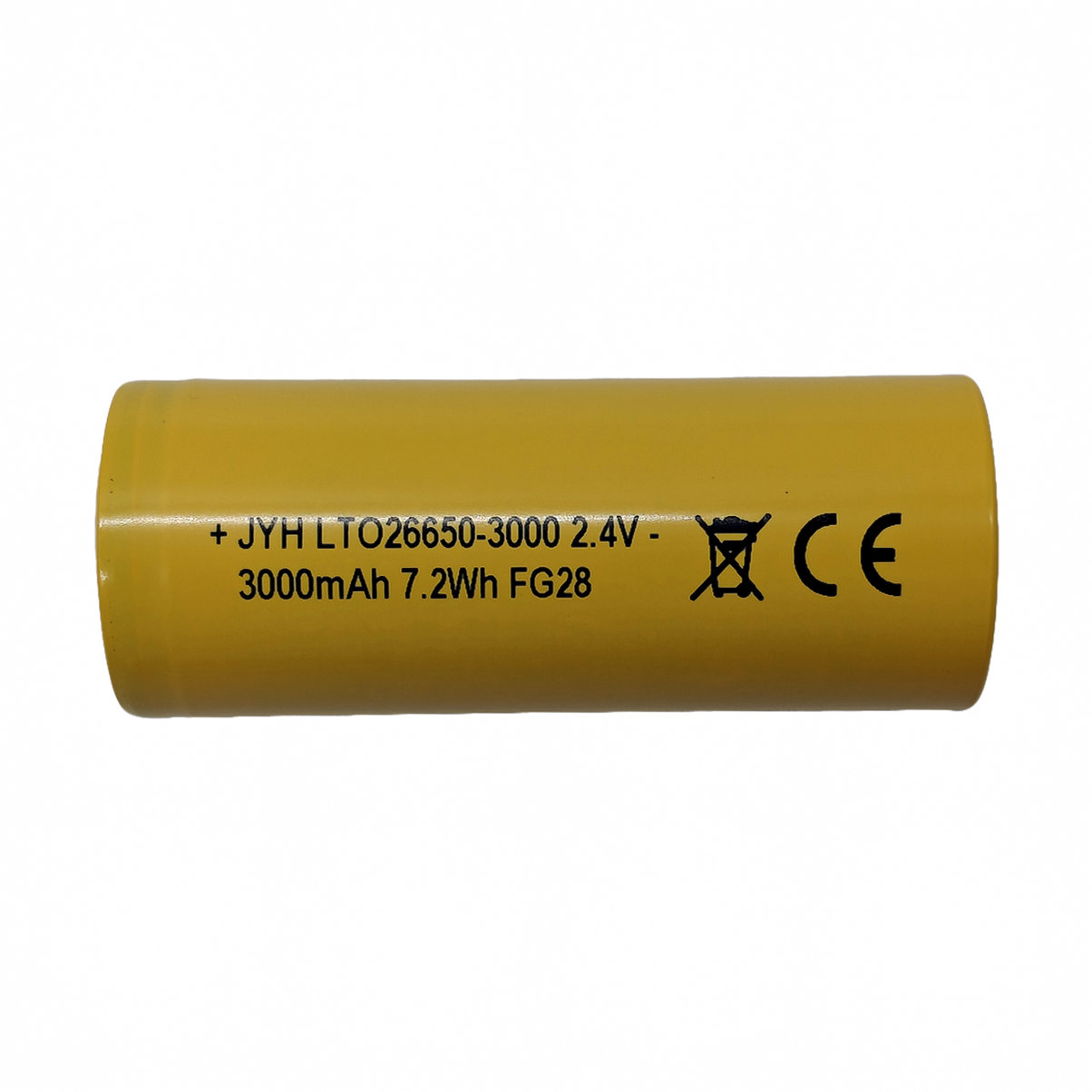

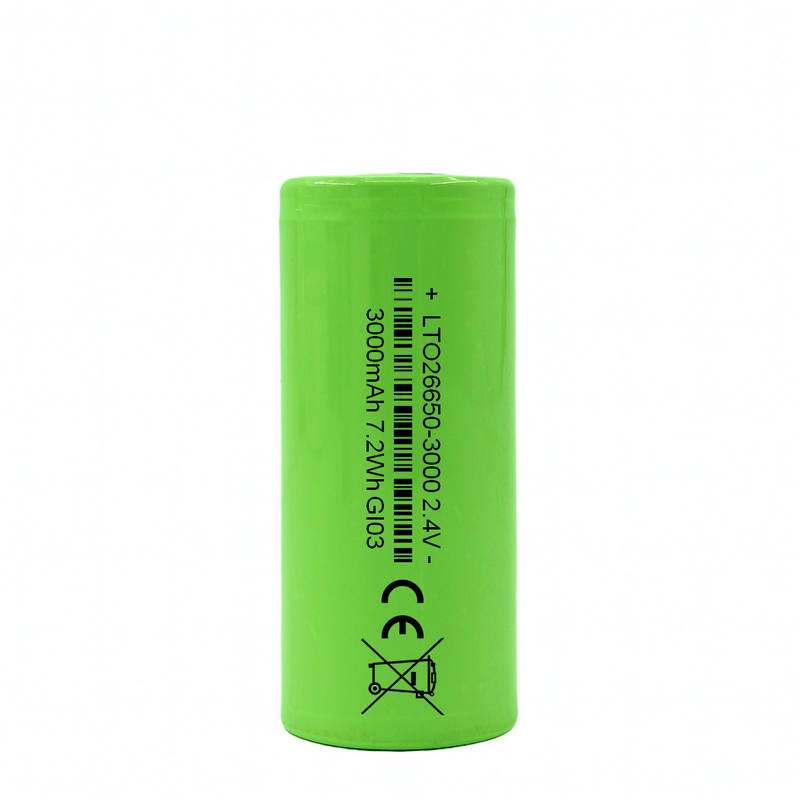

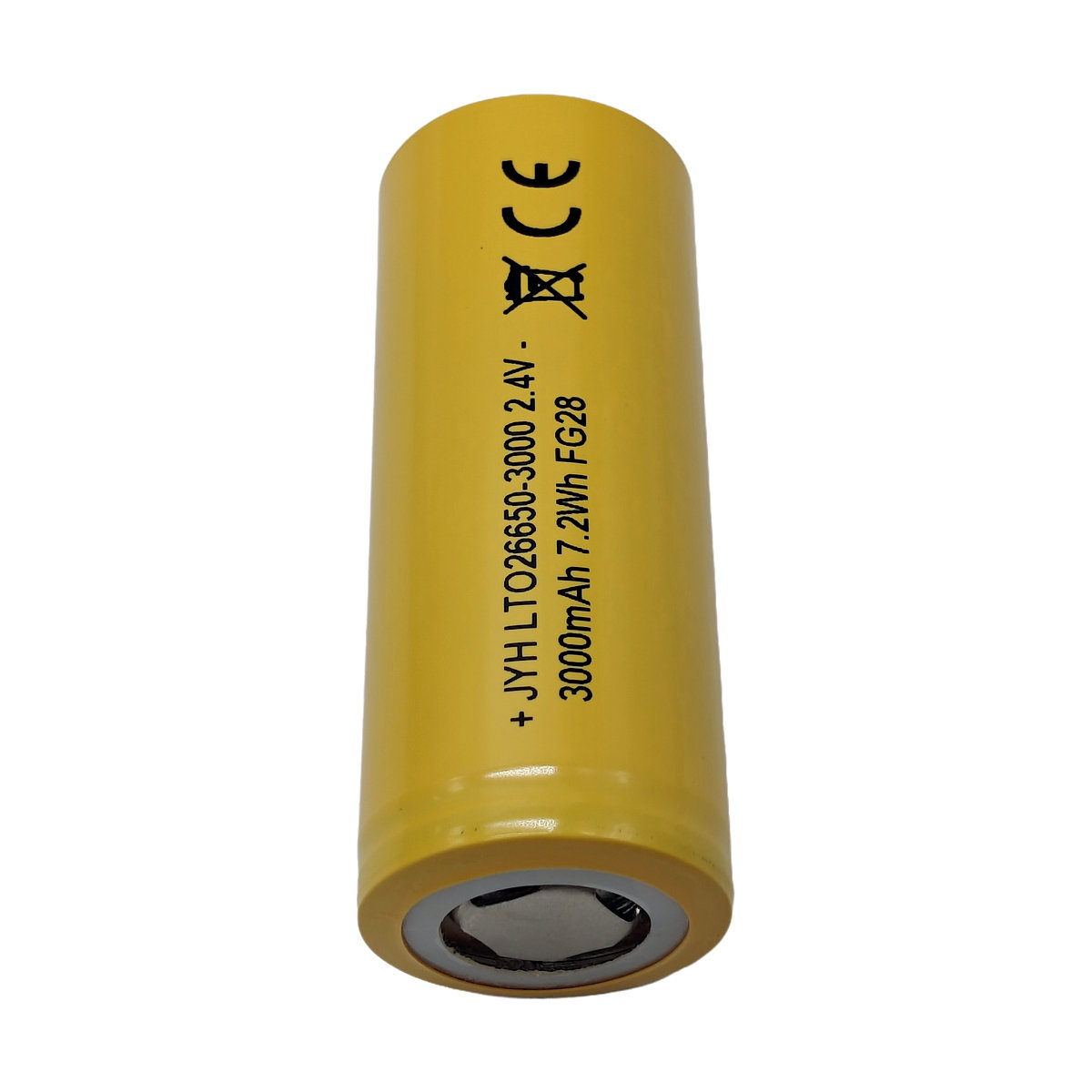

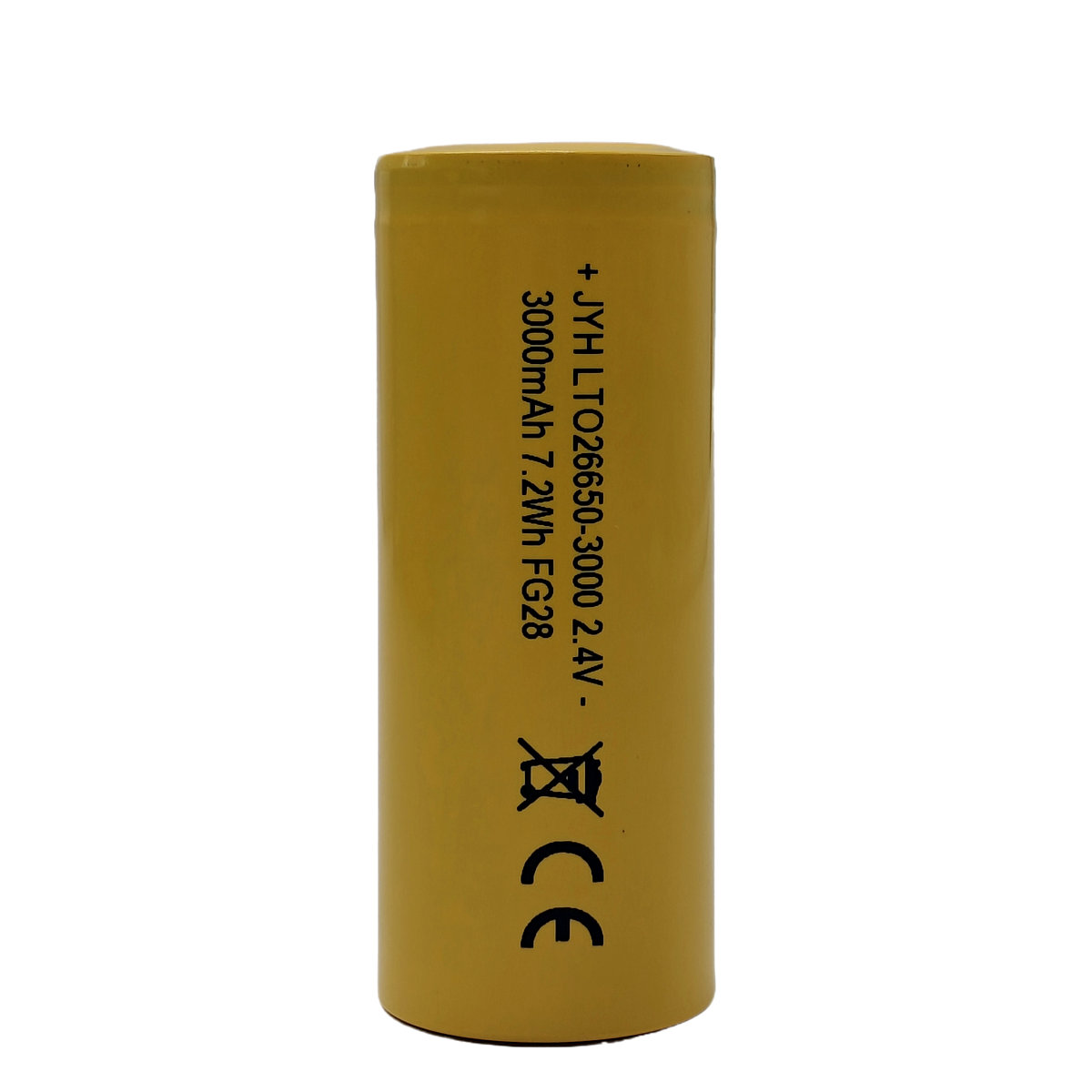

LTO26650-3000 Extreme Environment Lithium Titanate Battery

Product Features

The LTO 26650 battery has a good performance in low temperature and safety, good for outdoor application and use in high attitude areas.

Low Tempearture Performance: -30 degree Celsius charge available
Safety Performane: Thermal abuse, Nail Penetration Test approval
Rate performance: support high rate charge and discharge
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LTO26650-3000

  • JYH

Previous:
Next:
LTO battery LTO26650-3000 2.4V high-capacity battery 3000mAh ultra-low temperature battery military-grade power cell high-rate discharge battery lithium titanate battery polar expedition battery
Product Details
Product Description

The LTO26650-3000 is a high-capacity lithium titanate (LTO) battery delivering 3000mAh nominal capacity with unparalleled performance in extreme conditions. Engineered for the most demanding applications, it features industry-leading -30℃ charging capability and 12,000mA ultra-high discharge current in a rugged 26650 package.

Model LTO26650-3000
IEC Designation TCR27/66
Nominal Voltage 2.4V
Nominal Capacity 3000mAh
Typical Capacity 3100mAh after standard charge and standard discharge
Minimum Capacity 2900mAh after standard charge and standard discharge
Standard Charge Constant current at 1500mA charge to 2.7V, then constant
voltage at 2.7V charge till current decline to ≤30mA
Fast Charge Constant current at 3000mA charge to 2.7V, then constant
voltage at 2.7V charge till current decline to ≤30mA
Standard Discharge 600mA to 1.5V
Fast Discharge 3000mA to 1.5V
Maximum Continuous Charge Current 600mA (-30℃~-20℃)
1500mA (-20℃~10℃)
3000 mA (10℃~20℃)
12000 mA (20~60℃)
Maximum Continuous Discharge Current 12000mA
Operating Temperature Charge -30℃ to 60℃
Discharge -40℃ to 60℃
Storage Temperature <1 year -10℃ to 25℃
<3 months -10℃ to 35℃
<30days -10℃ to 45℃
Typical Weight 89g

测试

Key Advantages:

  1. Arctic-Grade Performance

    • Charges at -30℃ and discharges at -40℃

    • Maintains >90% capacity at -30℃

  2. Military-Spec Safety

    • Passes nail penetration and thermal abuse tests

    • Zero fire/explosion risk under abuse conditions

  3. Ultra-High Power Delivery

    • 12,000mA continuous discharge capability

    • Supports 3,000mA fast charging

  4. Unmatched Durability

    • 20,000+ cycle lifespan

    • <0.1% capacity loss per cycle

Technical Specifications:

ParameterSpecificationIndustry Benchmark
Energy Density70Wh/kg3× supercapacitors
Charge/Discharge Rate4C continuousIndustry-leading
Self-Discharge<1%/month10× lower than Li-ion

Mission-Critical Applications:

▌ Defense & Aerospace
• Arctic military communications
• High-altitude UAV power systems
• Satellite ground equipment

▌ Extreme Environment
• Polar research station power
• Oil/gas pipeline monitoring
• Cryogenic equipment backup

Certifications:

• UN38.3 Transportation Certified
• MIL-STD-810G Compliant
• CE/RoHS
• IEC 62133 Safety Tested
