| Customization: | Available |
|---|---|
| Type: | Li-ion Battery |
| Cathode Material: | Lto |
| Quantity: | |
|---|---|

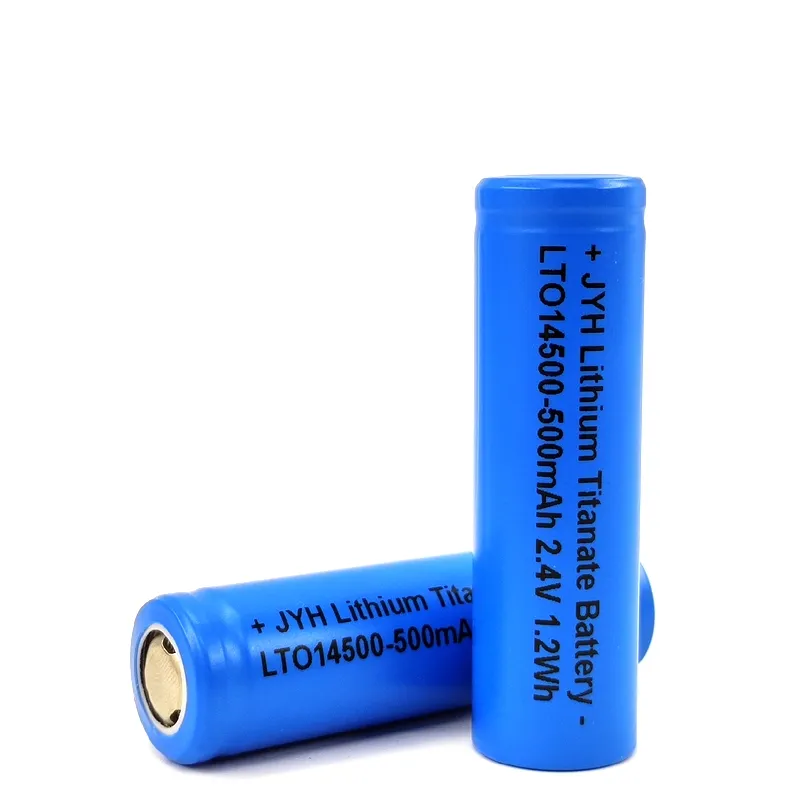

| Model Name | LTO14500-500 |
| Nominal Voltage | 2.4V |
| Nominal Capacity | 500mAh |
| Typical Capacity | 525mAh after standard charge and standard discharge |
| Minimum Capacity | 480mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 250mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤5mA |
| Fast Charge | Constant current at 500mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤5mA |
| Standard Discharge | 100mA to 1.5V |
| Fast Discharge | 500mA to 1.5V |
| Maximum Continuous Charge Current | 2000mA |
| Maximum Continuous Discharge Current | 2000mA |
| Operating Temperature | Charge -30ºC to 45ºC Discharge -40ºC to 60ºC |
| Storage Temperature | <1 year -10ºC to 25ºC <3 months -10ºC to 35ºC <30days -10ºC to 45ºC |
| Typical Weight | 20g |

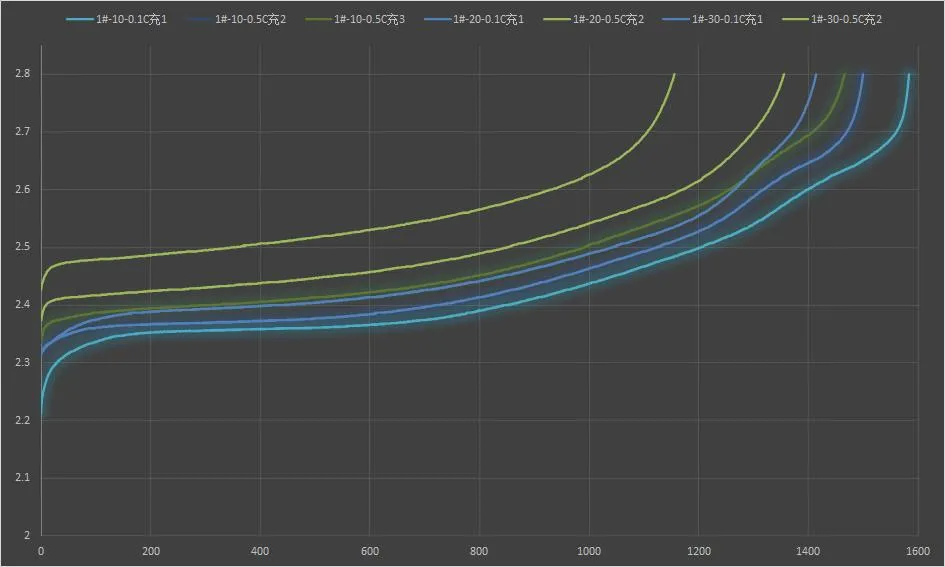

Lithium Titanate Battery Charge Graph in Low Temperature
