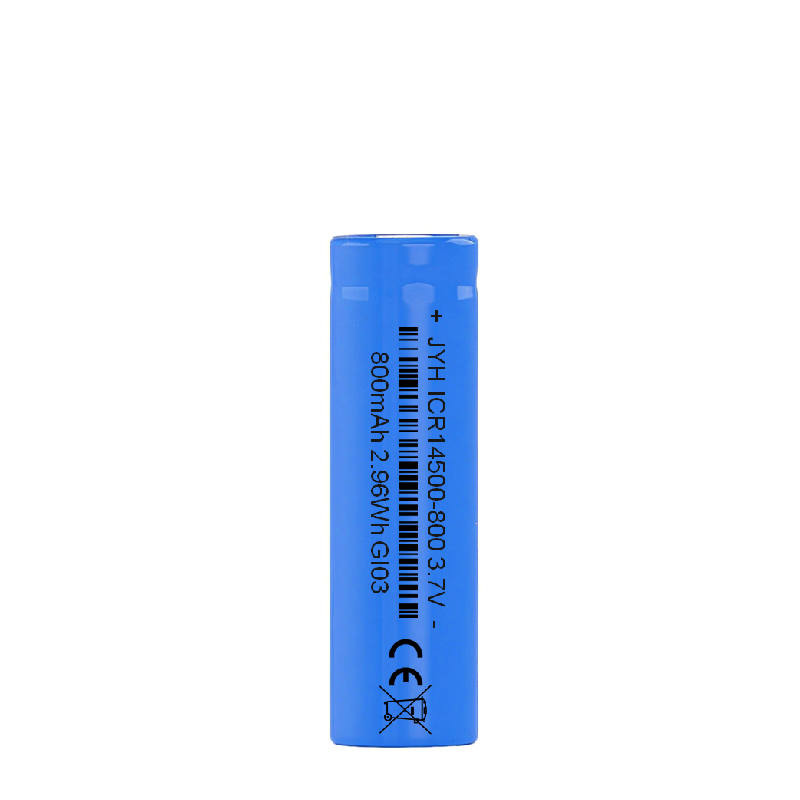

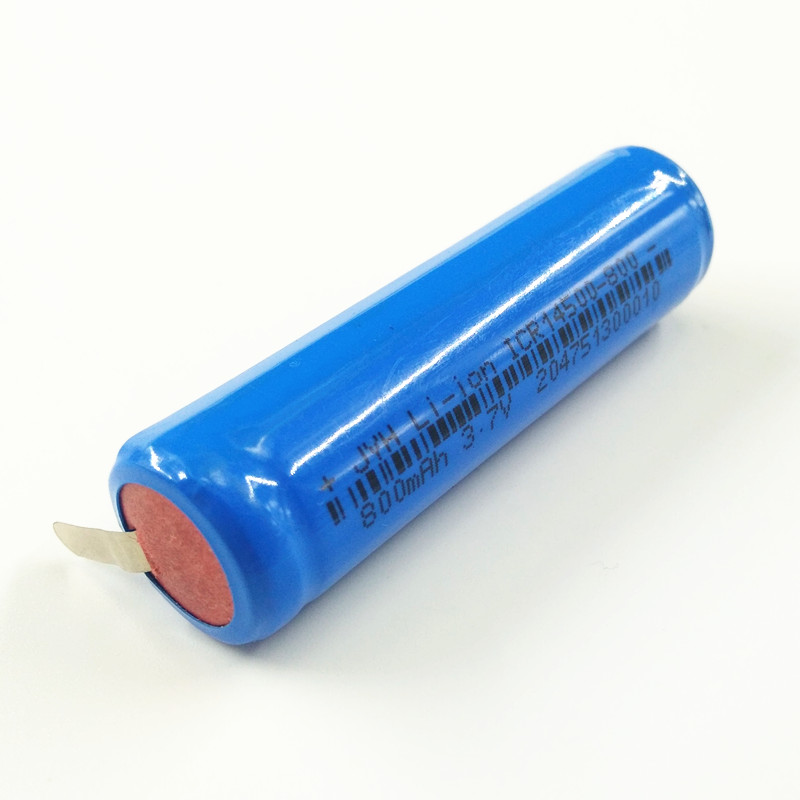

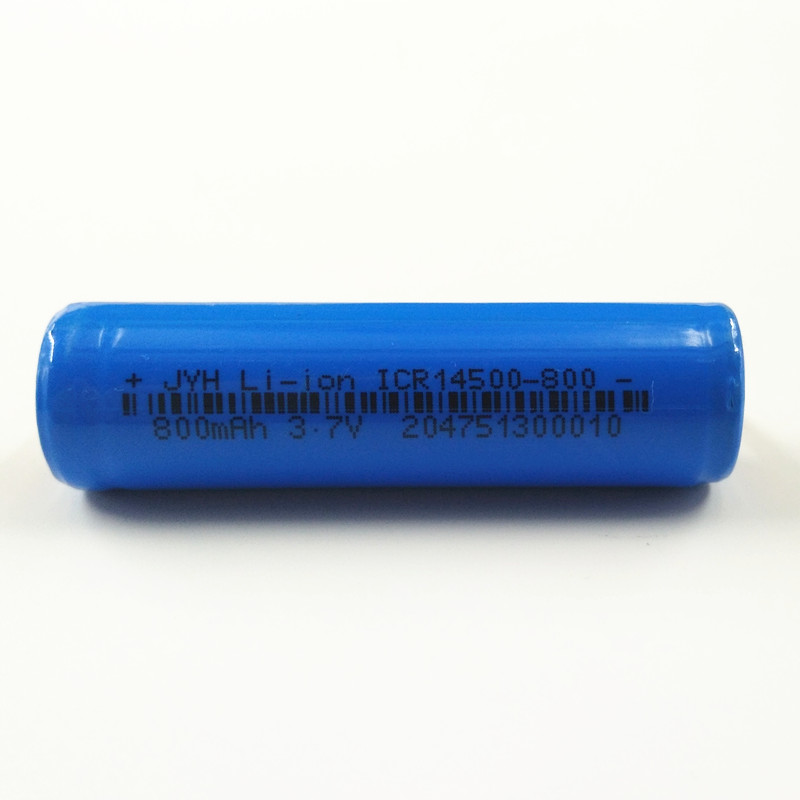

ICR14500-800
JYH
The ICR14500-800 represents the pinnacle of AA-size lithium-ion technology, delivering an industry-leading 800mAh nominal capacity (830mAh typical). Designed for mission-critical applications, this battery combines maximum energy density with robust safety features in a standard AA form factor.
| Model Name | ICR14500-800 |
|---|---|
| Nominal Voltage | 3.7V |
| Nominal Capacity | 800mAh |
| Typical Capacity | 830mAh after standard charge and standard discharge |
| Minimum Capacity | 780mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 400mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤8 mA |
| Fast Charge | Constant current at 800mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤8mA |
| Standard Discharge | 160mA to 2.75V |
| Fast Discharge | 800mA to 2.75V |
| Maximum Continuous Charge Current | 800mA |
| Maximum Continuous Discharge Current | 1600mA |
| Operating Temperature | Charge 0℃ to 45℃ Discharge -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 19g |
