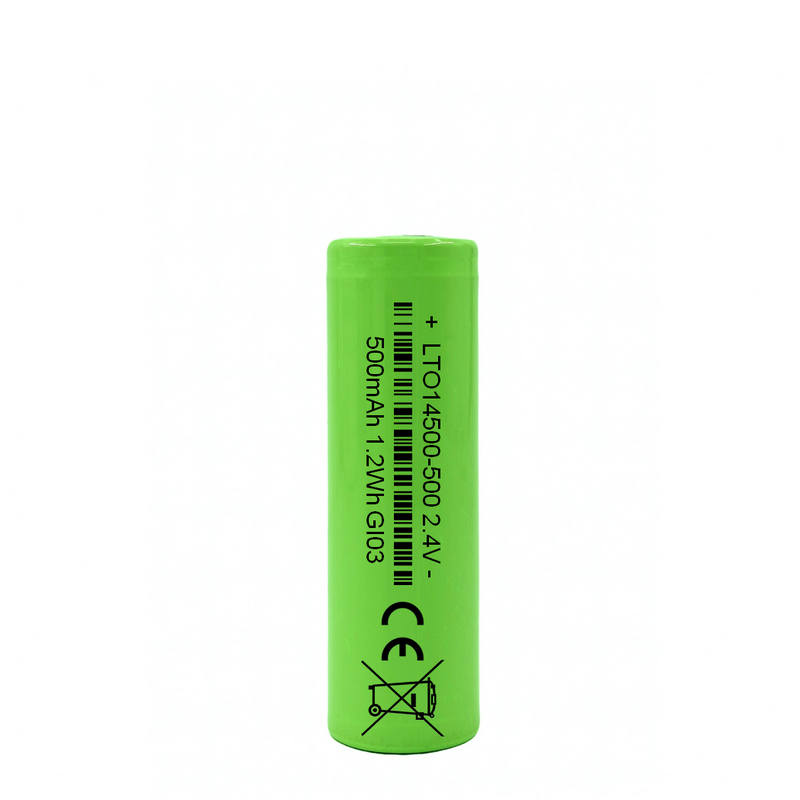

LTO14500-500
JYH
The LTO14500-500 is a revolutionary lithium titanate (LTO) battery delivering 500mAh capacity with unmatched performance in extreme conditions. Featuring a nominal voltage of 2.4V and exceptional -30℃ charging capability, this battery sets new standards for reliability in harsh environments.
| Model | LTO14500-500 |
| IEC Designation | TCR15/50 |
| Nominal Voltage | 2.4V |
| Nominal Capacity | 500mAh |
| Typical Capacity | 525mAh after standard charge and standard discharge |
| Minimum Capacity | 480mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 250mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤5mA |
| Fast Charge | Constant current at 500mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤5mA |
| Standard Discharge | 100mA to 1.5V |
| Fast Discharge | 500mA to 1.5V |
| Maximum Continuous Charge Current | 2000mA |
| Maximum Continuous Discharge Current | 2000mA |
| Operating Temperature | Charge -30℃ to 45℃ Discharge -30℃ to 60℃ |
| Storage Temperature | <1 year -10℃ to 25℃ <3 months -10℃ to 35℃ <30days -10℃ to 45℃ |
| Typical Weight | 20g |
