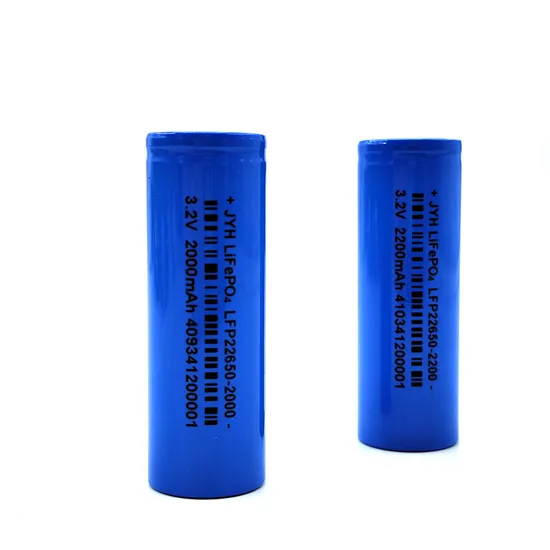

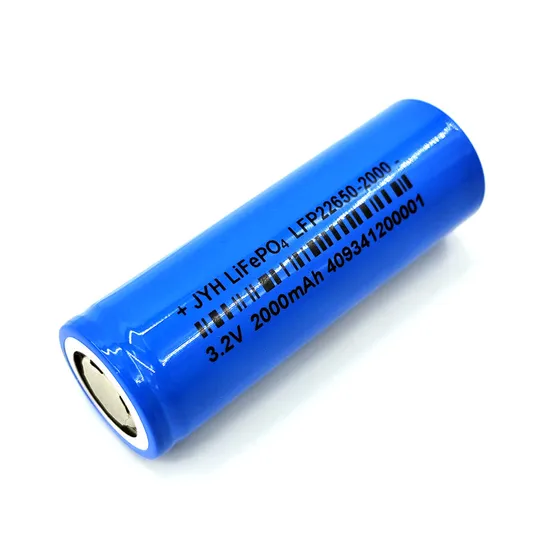

22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack

Customization: Available
Type: Lithium-Ion Battery Pack
Connection Mode: Series and Parallel
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
LiFePO4 26650 Battery 22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack 26650 2000mAh Battery
Product Description

Basic Info.

Model NO.
LFP26650-2000
Rechargeable
Chargeable
Discharge Rate
Medium Discharge Rate
Size
Medium
Accessories Type
Battery
Rated Capacity
2000mAh
Standard Voltage
3.2V
Usage
Mower, Electric Equipment
Electrolyte
Li-ion
Warranty
1 Year
Transport Package
Carton Box
Specification
LFP26650
Trademark
JYH
Origin
China
HS Code
85076000
Production Capacity
30K PCS/Day

Product Description

△ Above prices are for your reference. Please consult us for details.
22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack

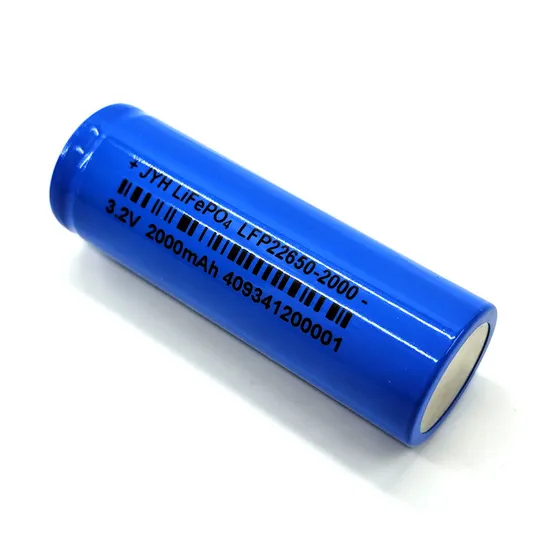

LiFePO4 26650-2000mAh single cell specification:
Nominal Voltage 3.2V
Nominal Capacity 2000mAh
Typical Capacity 2080mAh after standard charge and standard discharge
Standard Charge Constant current at 1000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤20mA
Fast Charge Constant current at 2000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤20mA
Standard Discharge 400mA to 2.0V
Fast Discharge 2000mA to 2.0V
Maximum Continuous Charge Current 2000mA
Maximum Continuous Discharge Current 6000mA
Operating Temperature Charge 0°C to 45°C
Discharge -20°C to 60°C
Dimensions Diameter 26mm
Height 65.5mm
Typical Weight 75g

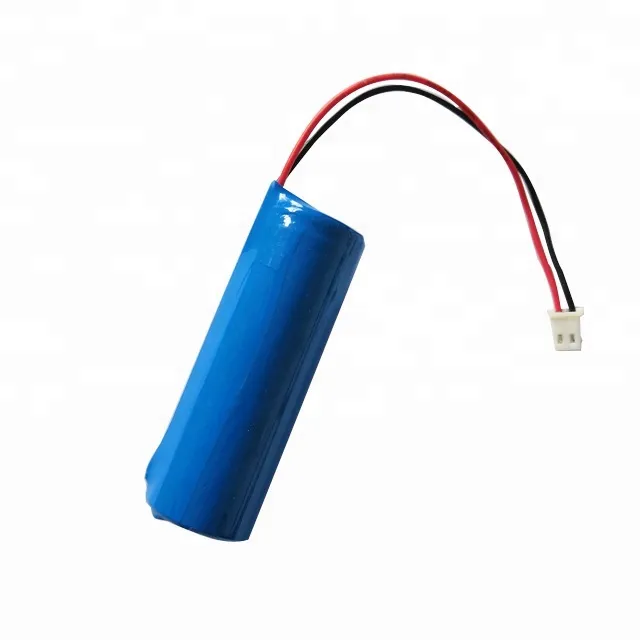

*LiFePO4 26650-2000mAh-1S1P Battery Pack: 2000mAh 3.2V

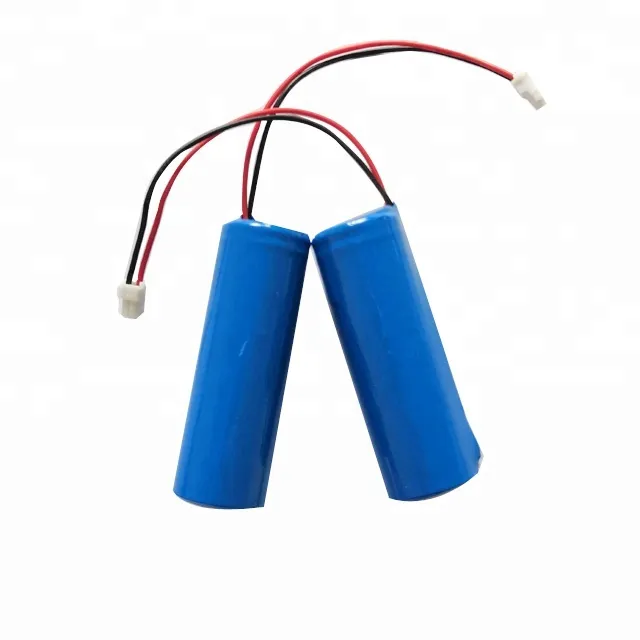

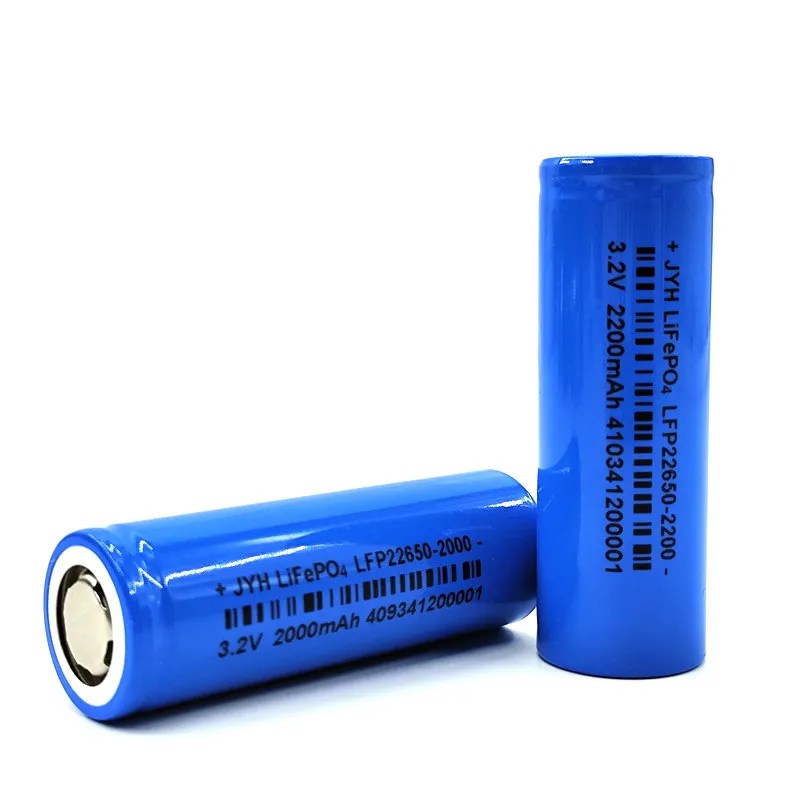

22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack 22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack
LFP26650-2000-1S1P Battery Pack: 3.2V

Application
1, E-Scooter
2, Solar street light
3, Electric wheelchair
4, Mower
5, UPS
6, etc.(Please consult us for detail)
Design Standards:
IEC 62620:2014/AMD1:2023
IEC 62133-2:2017/AMD1:2021
Emergency Luminaires and Lamp controlgear: IEC 60598-2-22:2021, IEC 61347-2-7:2011+A1:2017+A2:2021, UL924

Self-contained emergency luminaires using a rechargeable battery as the emergency safety source shall comply with the requirements of Clause 23 of IEC 61347-2- 7: 2011 and Clause 23 of IEC 61347-2-7: 2011/ AMD2: 2021.

A.7 Lithium iron phosphate (LiFeP04), lithium nickel manganese cobalt oxide (Li(NiCoMn)O2), lithium titanate oxide (LTO) batteries
A.7.1 The cells shall conform to IEC 62620 and IEC 62133-2.
A.7.2 A battery shall conform to the following subclauses of IEC 62133-2:2017.

Battery packs are customized products, which is supposed to combine with cells in different configuration, in order to fit for your product. For any power solution, please feel free to contact us, together we work, the better solution we can achieve.

Scroll down the page or send me email for further discussion
Jack <mfr#jyh-battery. com>
22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack

Related Battery Packs:

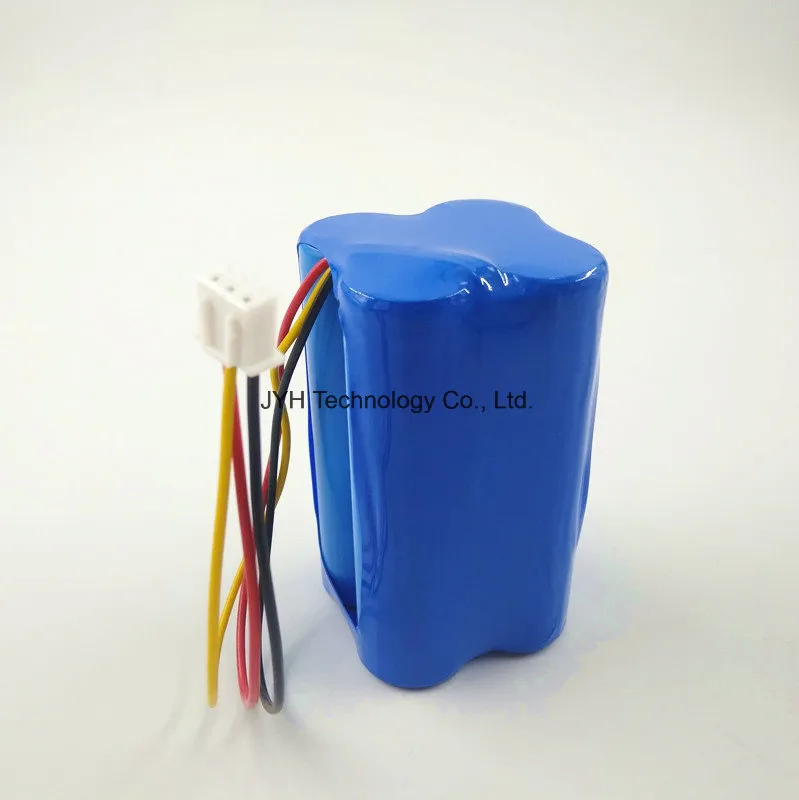

22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack 22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack 22650 2000mAh 3.2V LiFePO4 Lithium Ion Battery Pack

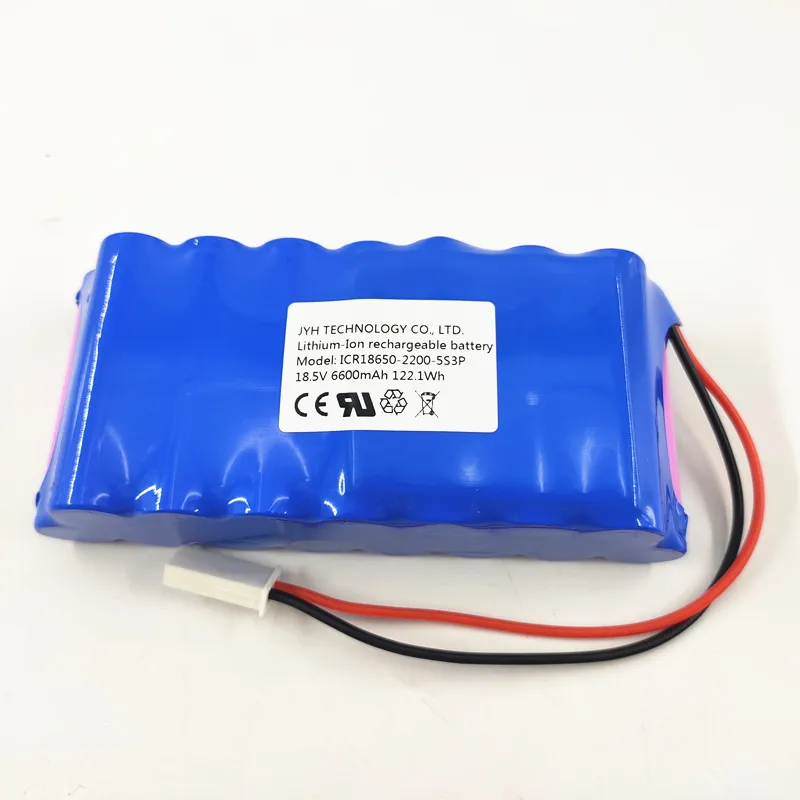

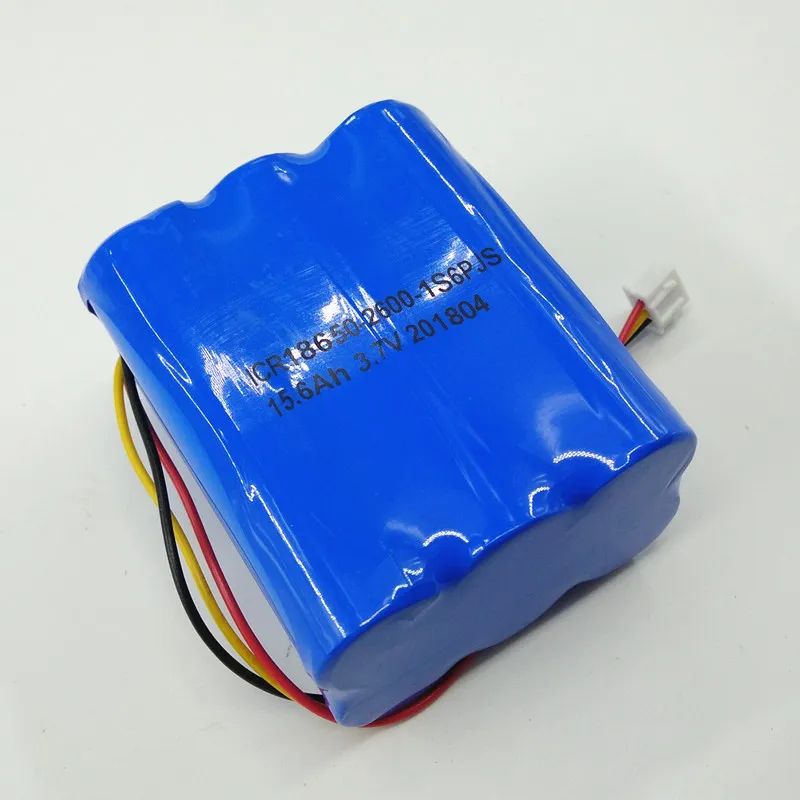

ICR18650-2600-1S6P: 15.6Ah 3.7V ICR18650-2200-5S3P: 6.6Ah 18.5V ICR18650-2600-4S1P: 2.6Ah 14.8V
