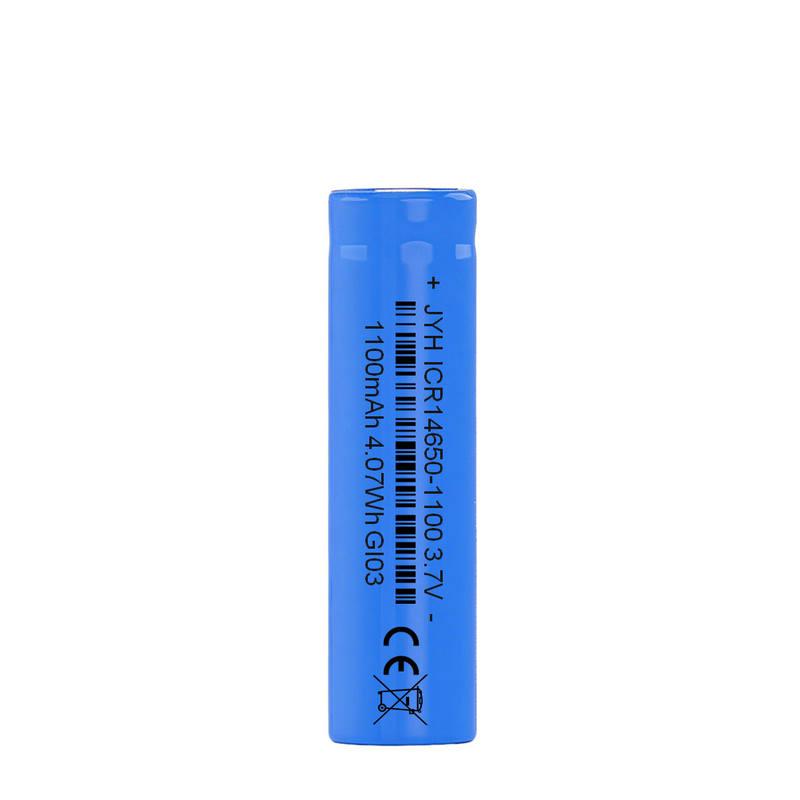

ICR14650-1100
JYH
The ICR14650-1100 redefines extended AA-size battery performance with an industry-leading 1100mAh nominal capacity (1150mAh typical). Designed for mission-critical applications requiring extended operation, this battery delivers superior energy density in a slightly elongated AA form factor (14×65mm) while maintaining professional-grade reliability.
| Model Name | ICR14650-1100 |
|---|---|
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1100mAh |
| Typical Capacity | 1150mAh after standard charge and standard discharge |
| Minimum Capacity | 1050mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 550mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤11mA |
| Fast Charge | Constant current at 1100mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤11mA |
| Standard Discharge | 220mA to 2.75V |
| Fast Discharge | 1100mA to 2.75V |
| Maximum Continuous Charge Current | 1100mA |
| Maximum Continuous Discharge Current | 2200mA |
| Operating Temperature | Charge 0℃ to 45℃ Discharge -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 25.5g |
