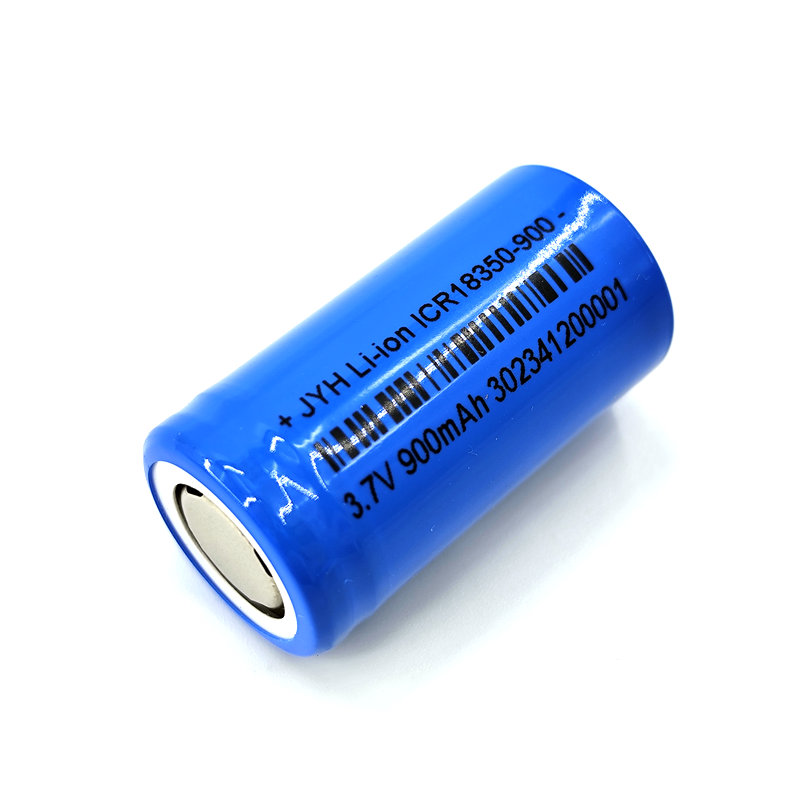

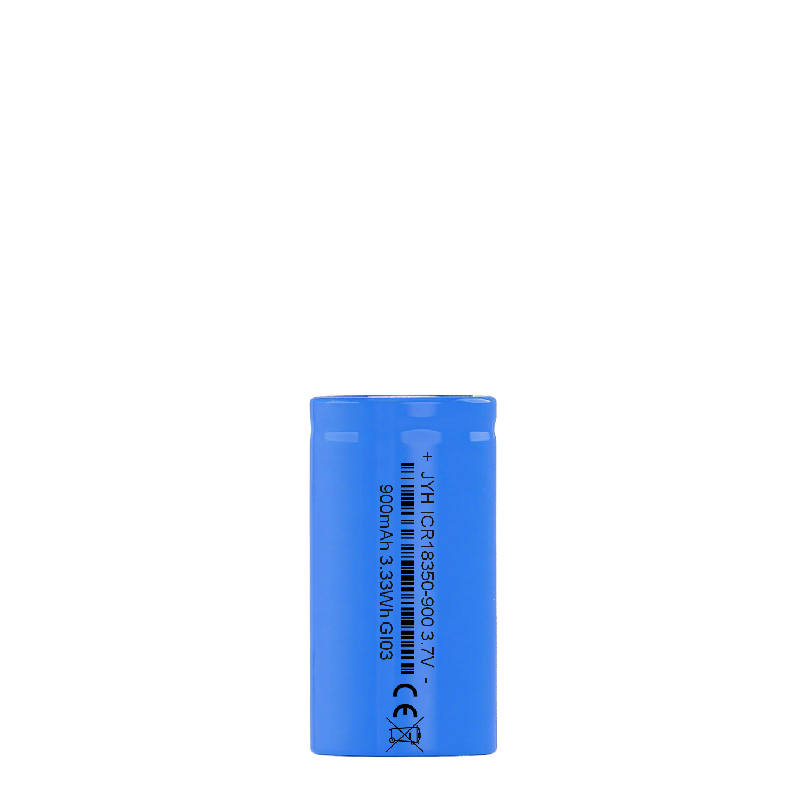

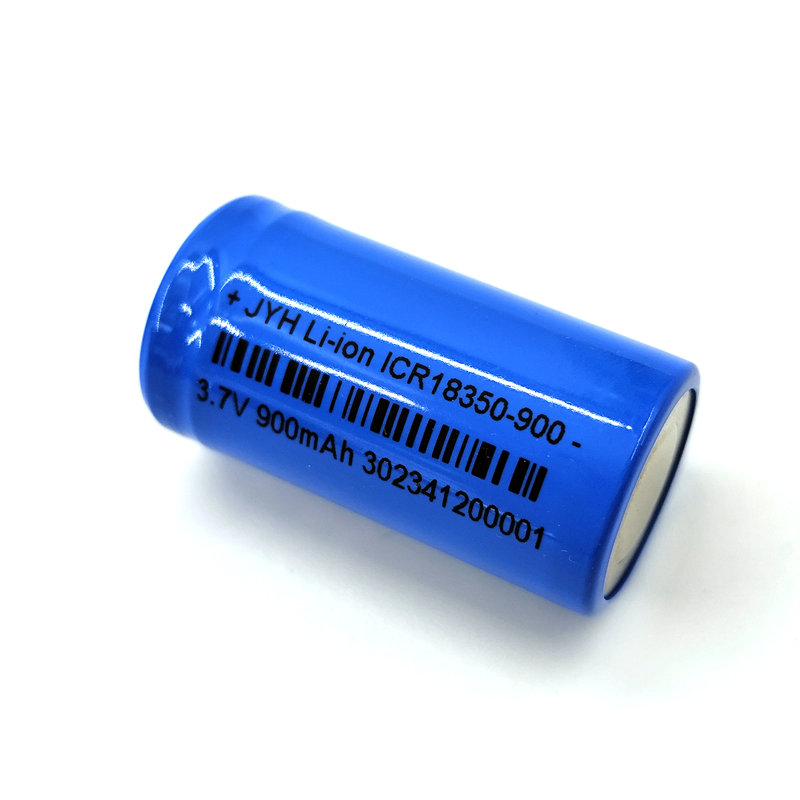

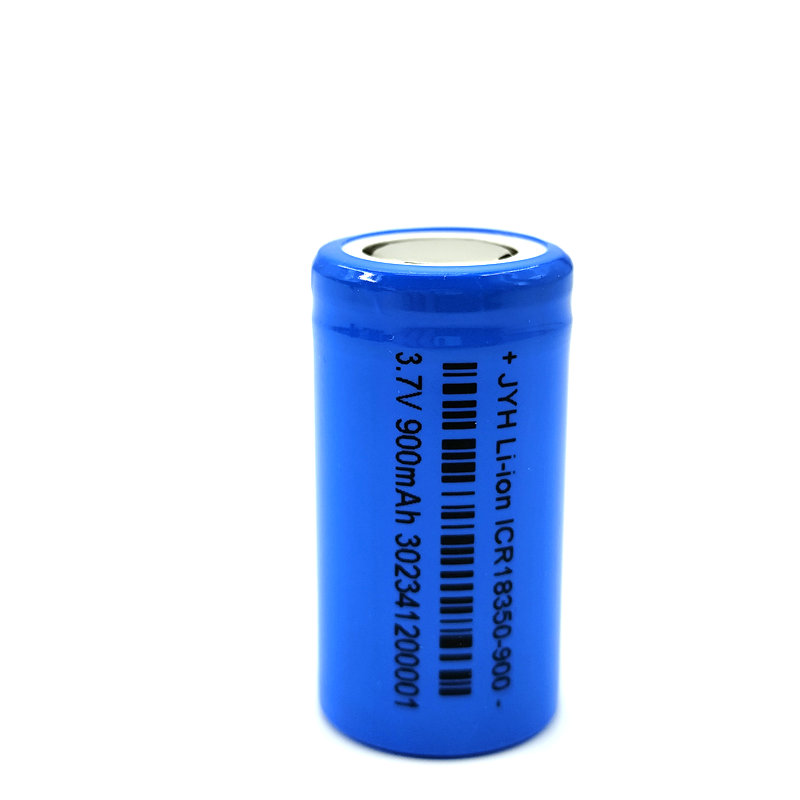

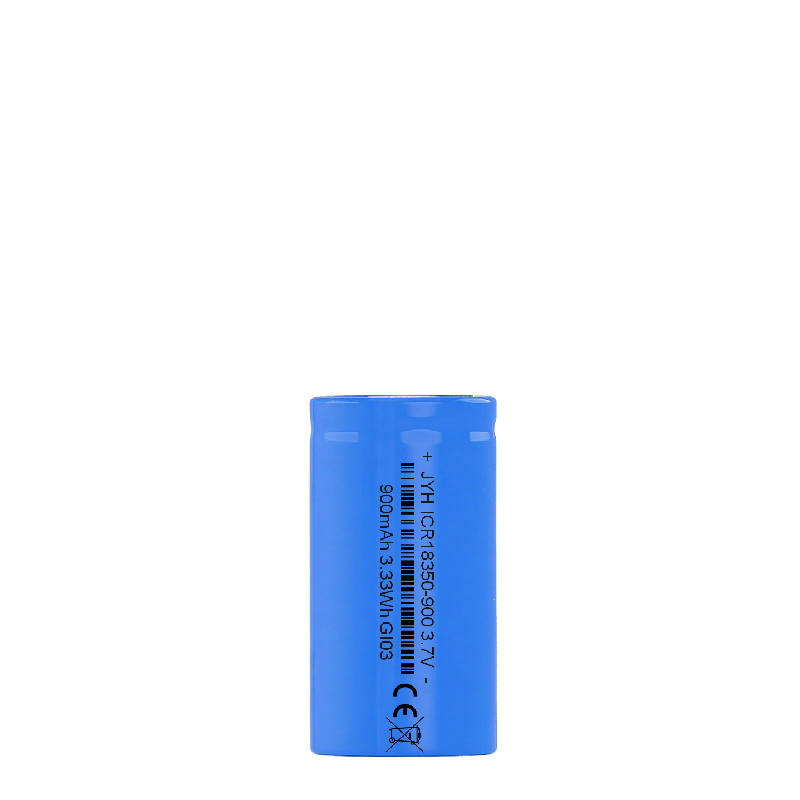

The ICR18350-900 is a high-performance lithium-ion battery delivering 900mAh capacity in a compact 18350 form factor (18×35mm). Designed as a space-saving alternative to 18650 batteries, it provides professional-grade power density for critical applications while maintaining full safety compliance.
| Model Name | ICR18350-800 10C |
|---|
| Nominal Voltage | 3.7V |
| Nominal Capacity | 900mAh |
| Typical Capacity | 940mAh after standard charge and standard discharge |
| Minimum Capacity | 870mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 450mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤9mA |
| Fast Charge | Constant current at 900mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤9mA |
| Standard Discharge | 180mA to 2.75V |
| Fast Discharge | 900mA to 2.75V |
| Maximum Continuous Charge Current | 900mA |
| Maximum Continuous Discharge Current | 1800mA |
| Operating Temperature | Charge 0℃ to 45℃
Discharge -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃
<3 months -20℃ to 40℃
<30days -20℃ to 50℃ |
| Typical Weight | 22g |
