ICR14650-1200
JYH

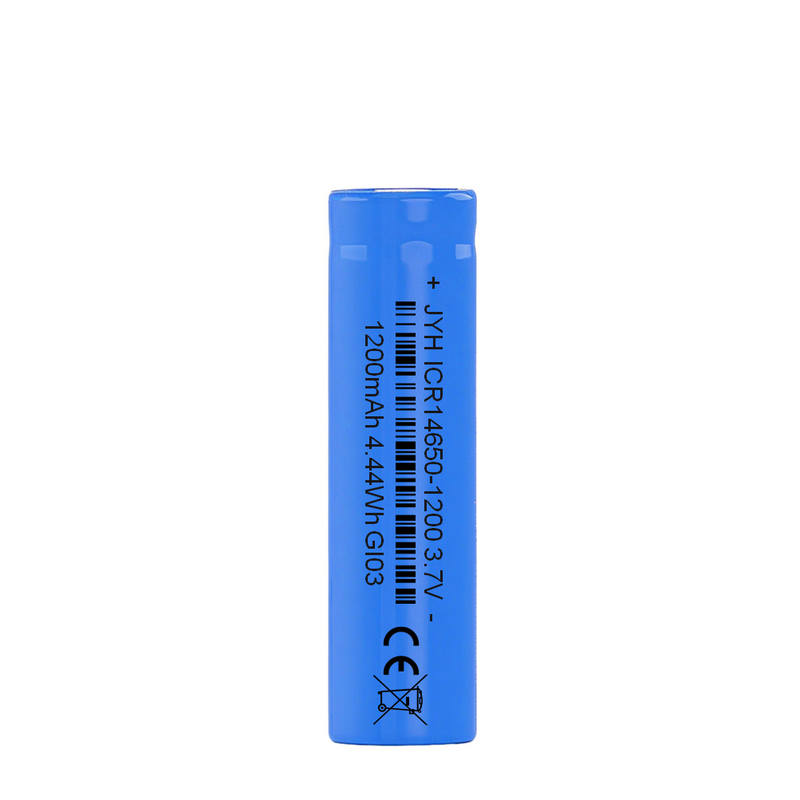

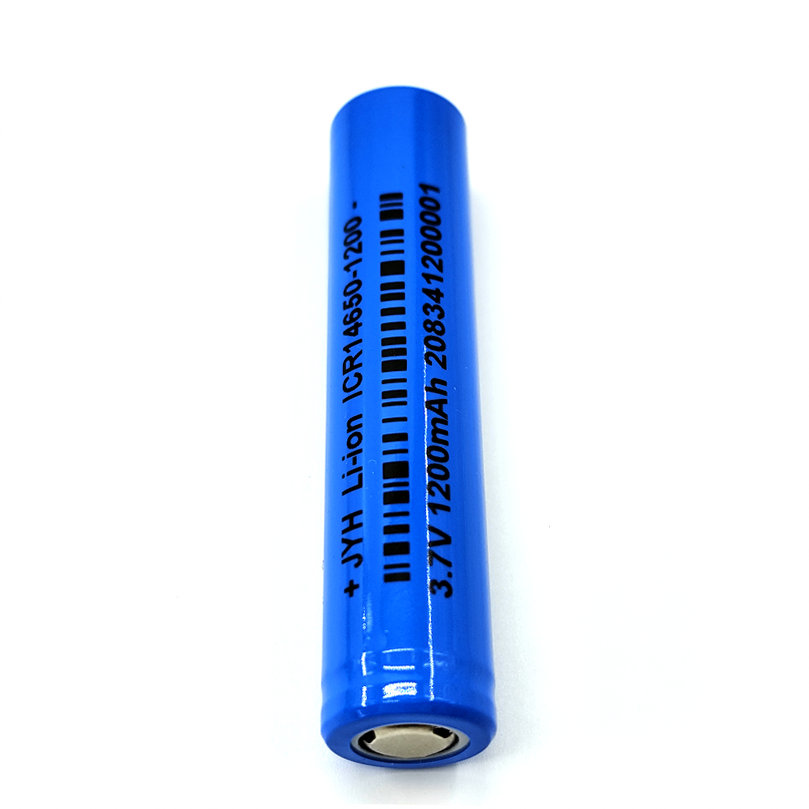

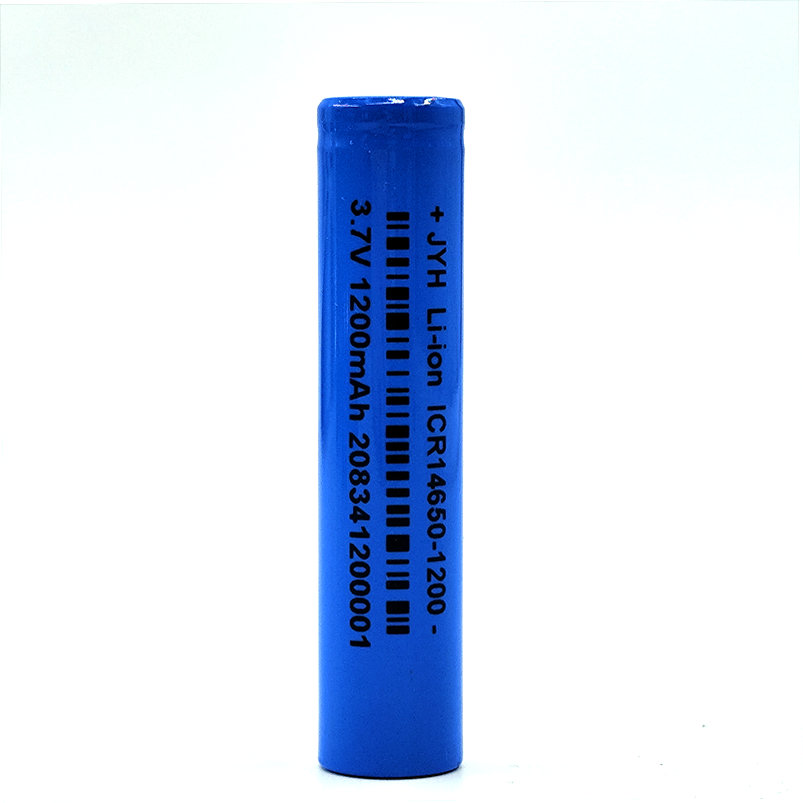

The ICR14650-1200 represents the pinnacle of extended AA-size battery technology, delivering an industry-leading 1200mAh nominal capacity (1250mAh typical). Engineered for professional applications requiring maximum runtime, this battery combines breakthrough energy density with robust safety features in a slightly elongated AA form factor (14×65mm).
| Model Name | ICR14650-1200 |
|---|---|
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1200mAh |
| Typical Capacity | 1250mAh after standard charge and standard discharge |
| Minimum Capacity | 1150mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 600mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤12mA |
| Fast Charge | Constant current at 1200mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤12mA |
| Standard Discharge | 240mA to 2.75V |
| Fast Discharge | 1200mA to 2.75V |
| Maximum Continuous Charge Current | 1200mA |
| Maximum Continuous Discharge Current | 2400mA |
| Operating Temperature | Charge 0℃ to 45℃ Discharge -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 26g |
