ICR14650-1000
JYH

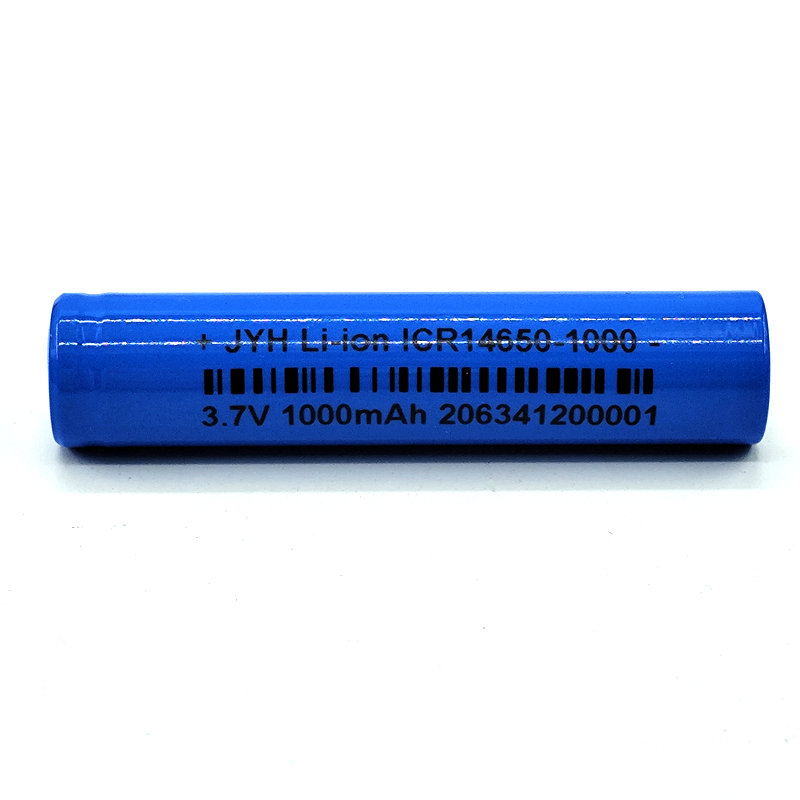

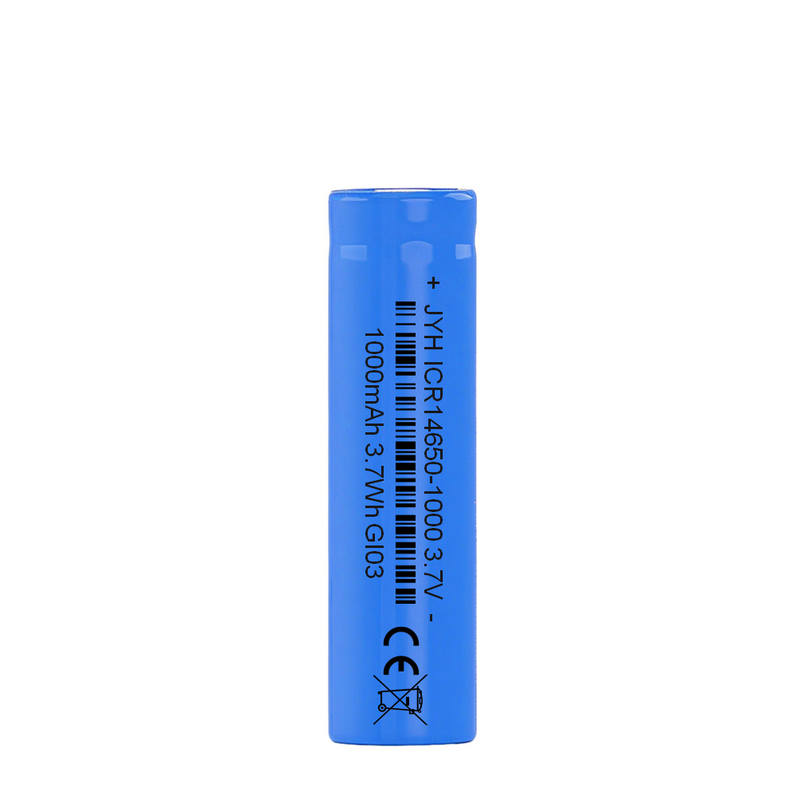

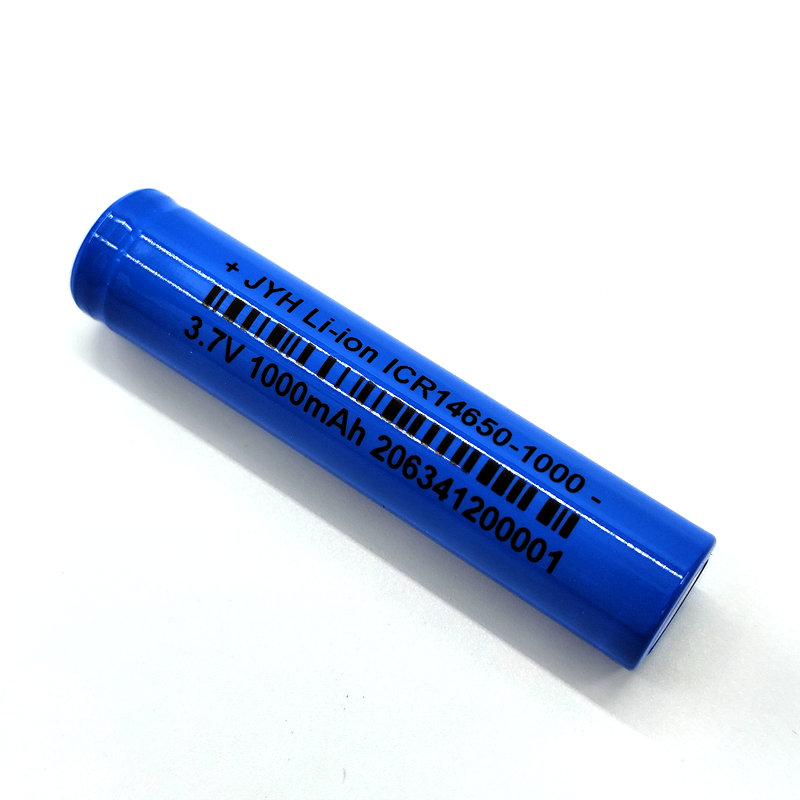

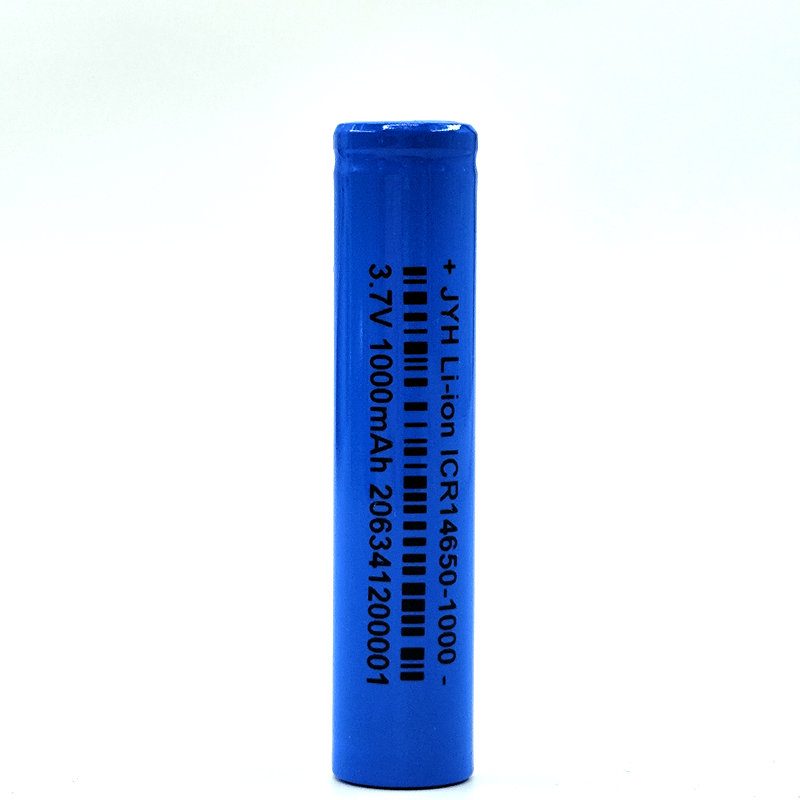

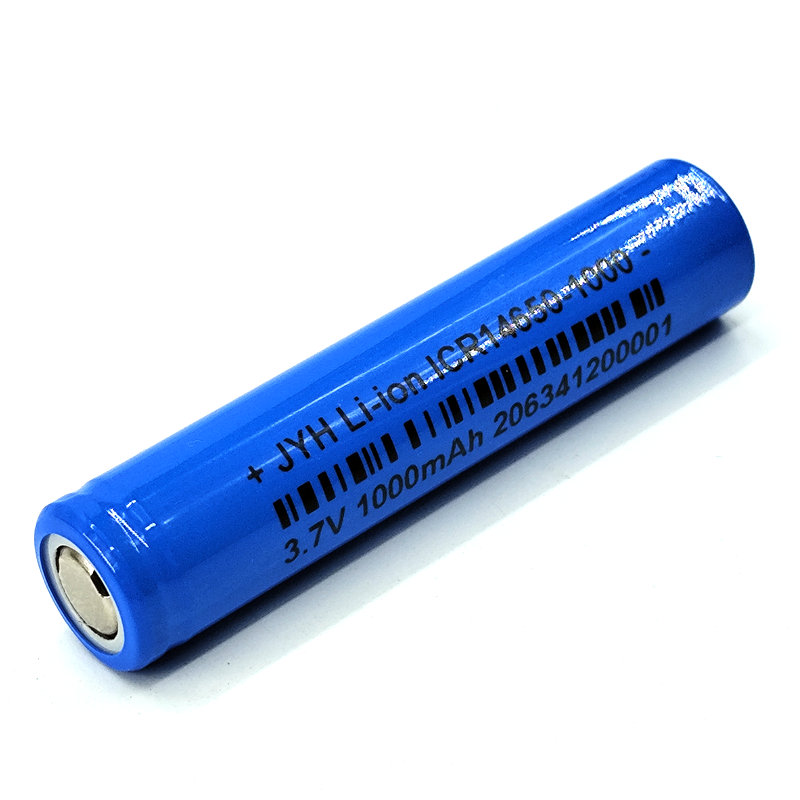

The ICR14650-1000 is an extended AA-size lithium-ion battery delivering an impressive 1000mAh nominal capacity (1020mAh typical). Designed for applications requiring extended runtime, this battery combines high energy density with professional-grade reliability in a slightly elongated AA form factor (14×65mm).
| Model Name | ICR14650-1000 |
|---|---|
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1000mAh |
| Typical Capacity | 1020mAh after standard charge and standard discharge |
| Minimum Capacity | 980mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 500mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤10mA |
| Fast Charge | Constant current at 1000mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤10mA |
| Standard Discharge | 200mA to 2.75V |
| Fast Discharge | 1000mA to 2.75V |
| Maximum Continuous Charge Current | 1000mA |
| Maximum Continuous Discharge Current | 2000mA |
| Operating Temperature | Charge 0℃ to 45℃ Discharge -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 25g |
