ICR14500-600
JYH

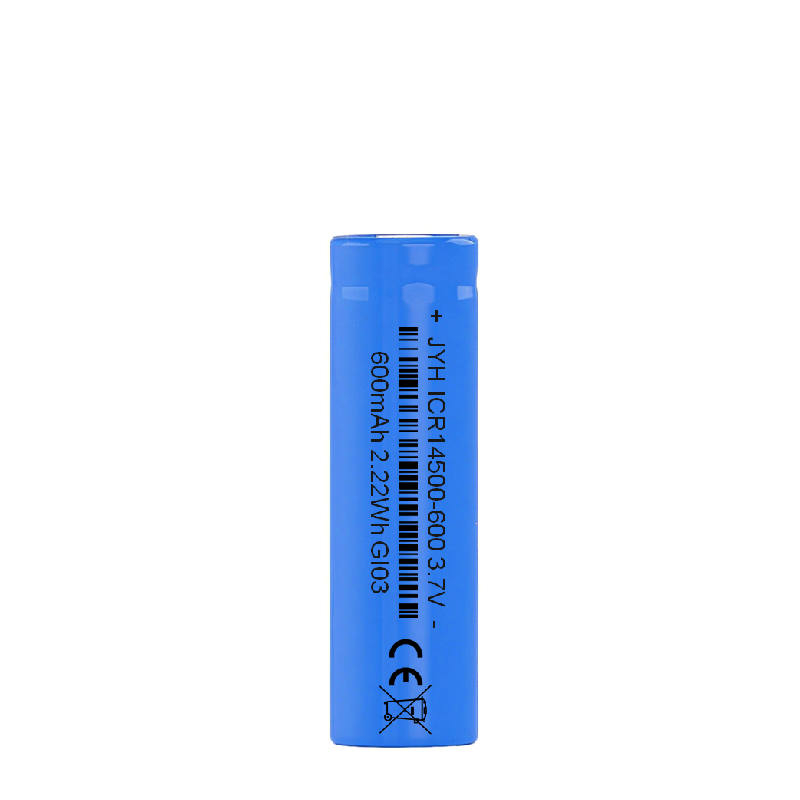

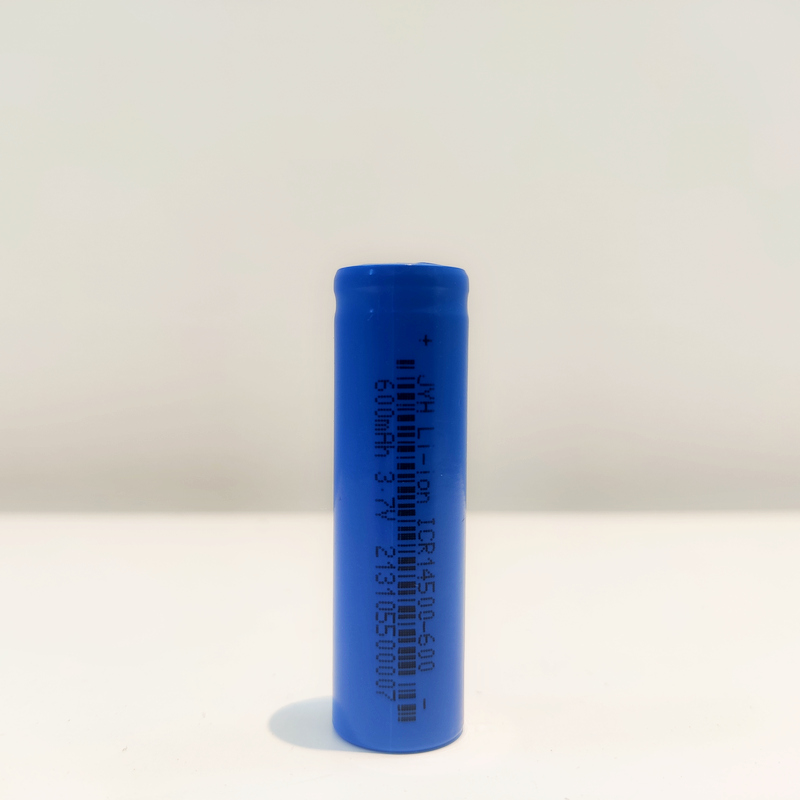

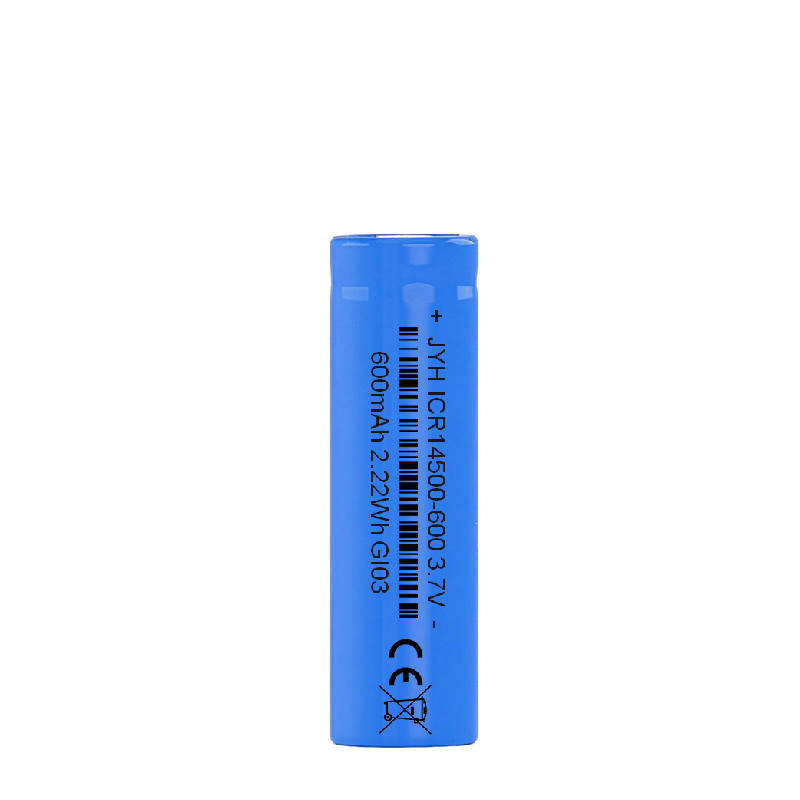

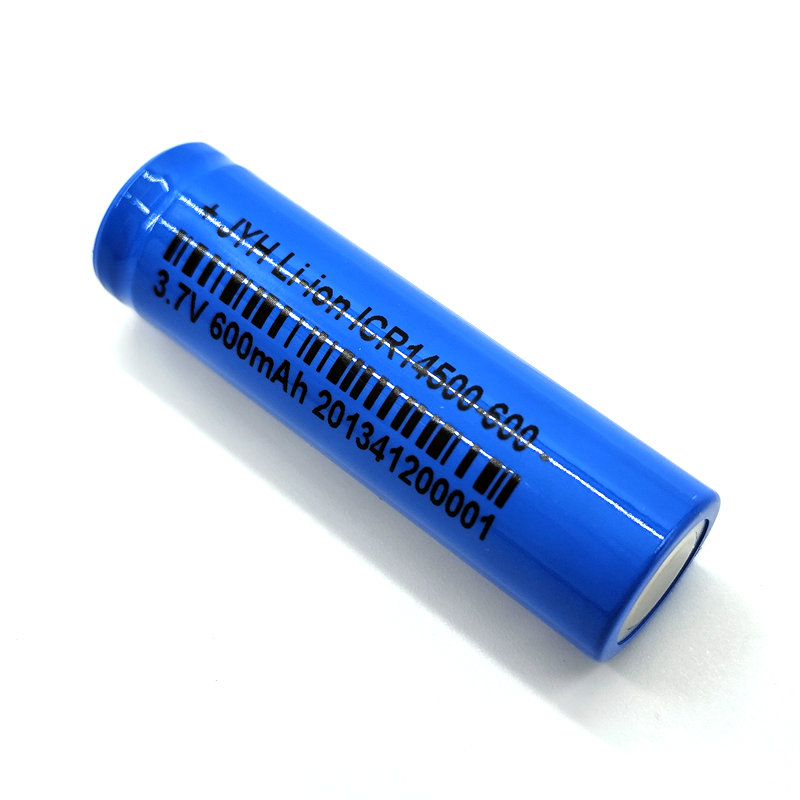

The ICR14500-600 is a high-performance lithium-ion battery delivering 600mAh nominal capacity (650mAh typical) in standard AA size. Utilizing advanced NMC chemistry, it provides reliable power for consumer electronics with enhanced energy density and cycle life.
| Model | ICR14500-600 |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 600mAh |
| Typical Capacity | 650mAh after standard charge and standard discharge |
| Minimum Capacity | 600mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 300mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤6mA |
| Fast Charge | Constant current at 600mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤6mA |
| Standard Discharge | 120mA to 2.75V |
| Fast Discharge | 600mA to 2.75V |
| Maximum Continuous Charge Current | 600mA |
| Maximum Continuous Discharge Current | 1200mA |
| Operating Temperature | Charge充电 0℃ to 45℃ Discharge放电 -20℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 18g |
