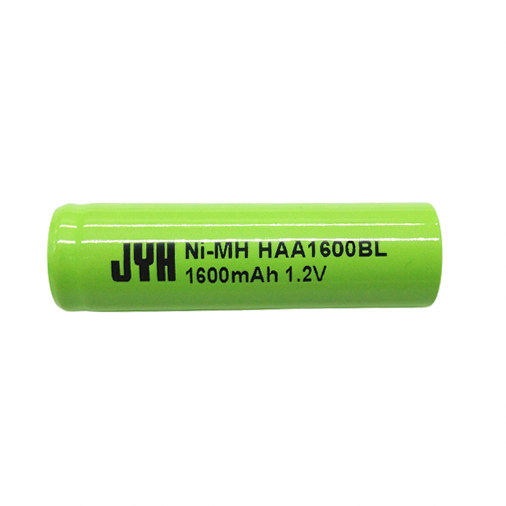

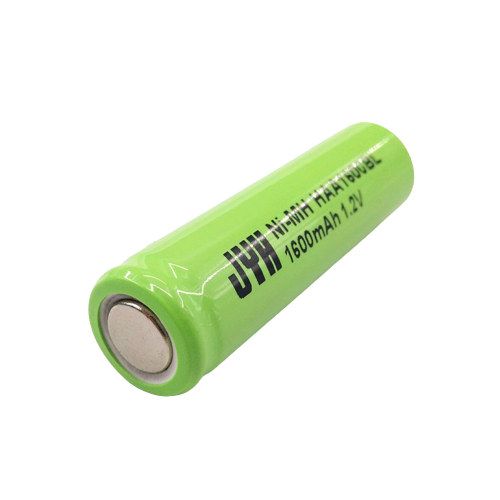

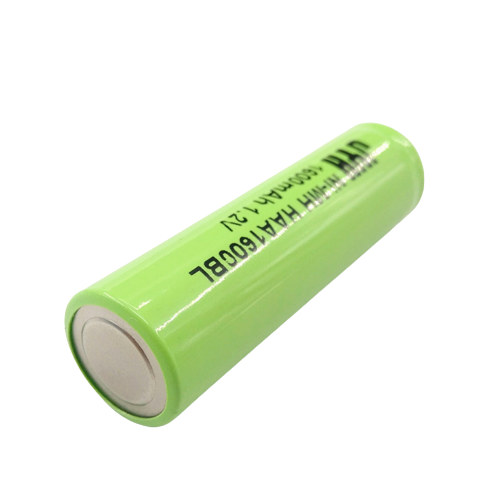

Ni-MH AA1600 LSD Low Self-Discharge Battery

Product Features

Charge Retention
After standard charge and storage time of 28 days at an ambient temperature of 20℃±2℃, the capacity is measured with a discharging current of 0.2C and a discharge final voltage of 1.0V.
Criteria: Discharge capacity ≥90% of nominal capacity


Long Term Storage for 6 Months
discharging current of 0.2C and a discharge final voltage of 1.0V.
Criteria: Discharge capacity ≥85% of nominal capacity


Long Term Storage for 12 Months
After standard charge and storage time of 12 months at 15℃~20℃, the capacity is measured with a discharging current of 0.2C and a discharge final voltage of 1.0V.
Criteria: Discharge capacity ≥80% of nominal capacity
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • Ni-MH AA1600 LSD

  • JYH

Previous:
Next:
Ni-MH battery AA1600LSD 1.2V rechargeable battery 1600mAh pre-charged battery long shelf life battery ready-to-use power emergency backup battery
Product Details
Product Description

The Ni-MH AA1000 is a versatile nickel-metal hydride battery delivering 1000mAh nominal capacity (1030mAh typical) with advanced charging flexibility. Designed for medical and communication devices, it combines reliable performance with fast-charging capability in standard AA size.

Model
 HAA1600L
Nominal Voltage
 1.2V
Nominal Capacity
 1600mAh
Typical Capacity
 1650mAh after standard charge and standard discharge
Minimum Capacity
 1600mAh after standard charge and standard discharge
Standard Charge
 0.1C for 16hrs
Fast Charge
 800mA for 2.2 hours.
-delta V cut-off controlled: 5mV.
dT/dt controlled: 1℃ per min.
Trickle charge
 0.02C to 0.04C
Standard Discharge
 0.2C to 1.0V
Fast Discharge
 0.5C to 1.0V
Maximum Continuous Discharge Rate
 3C
Operating Temperature

 Standard charge 0℃ to 40℃
Fast charge 10℃ to 35℃
Trickle charge 0℃ to 40℃
Discharge -20℃ to 50℃
Storage Temperature
 < 1 year -20℃ to 30℃
< 3 months -20℃ to 40℃
Typical Weight
 24g

测试

Key Advantages:

  1. Superior Charge Retention

    • 90% capacity after 1 month storage

    • 80% capacity after 12 months storage

  2. Ready-to-Use Convenience

    • Pre-charged and ready for immediate use

    • Minimal maintenance required

  3. High Performance

    • 3C max continuous discharge rate

    • 800mA fast charging capability

  4. Wide Temperature Range

    • -20℃ to 50℃ discharge capability

    • 0℃ to 40℃ charging range

Technical Specifications:

ParameterSpecificationIndustry Benchmark
Self-Discharge Rate<10%/month5× better than standard NiMH
Fast Charge Time2.2 hoursWith safety cutoffs
Cycle Life1000+ cyclesAt 0.2C discharge

Ideal Applications:

  • Emergency lighting systems

  • Backup power supplies

  • Medical alert devices

  • Seasonal equipment

Certifications:

• IEC 61951-2 Compliant
• EU Battery Directive
• RoHS Certified
