SIR32140-10A
JYH

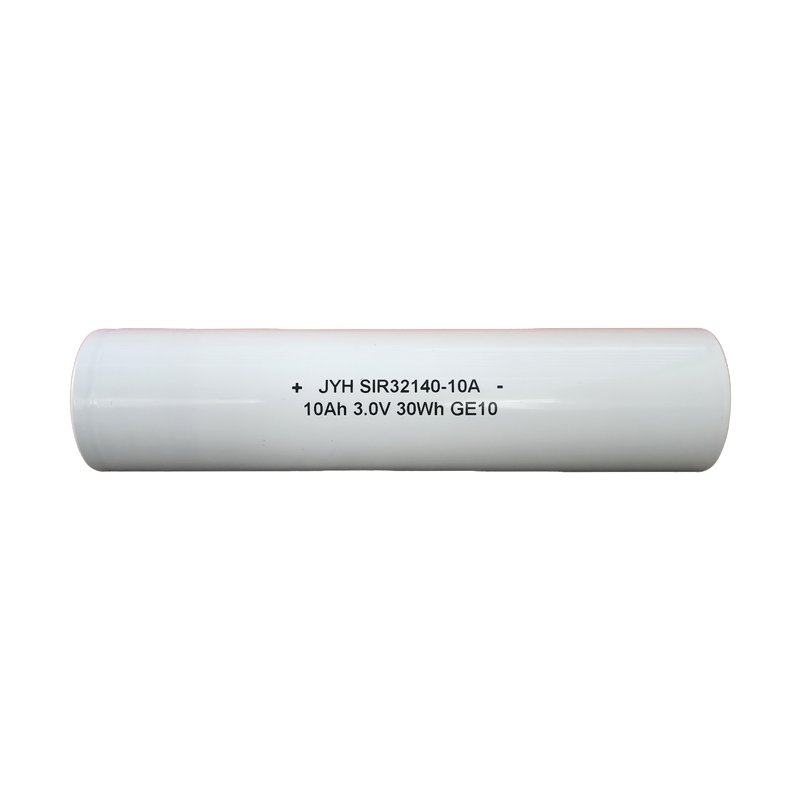

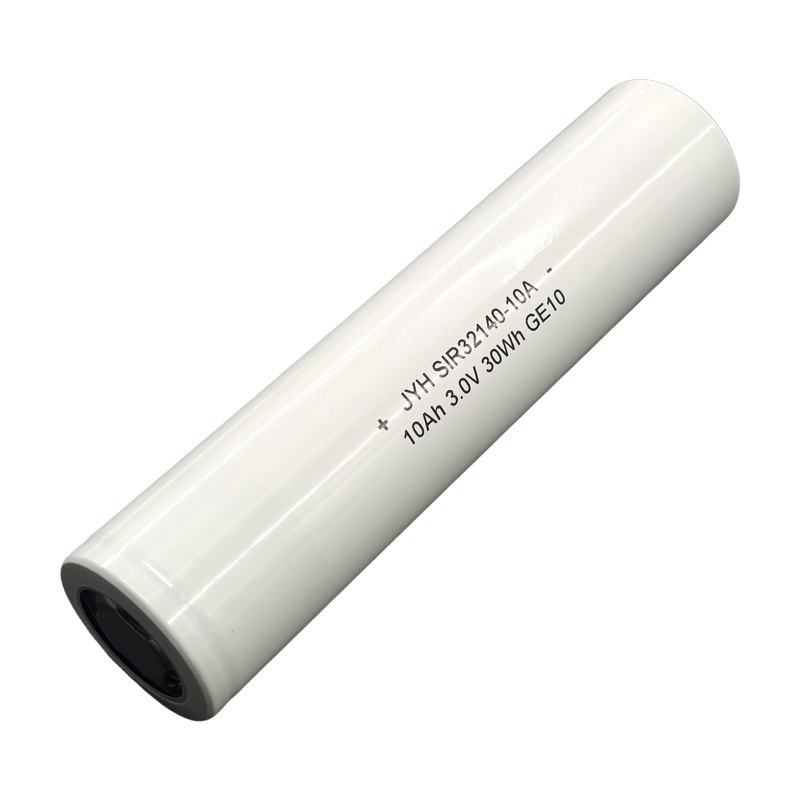

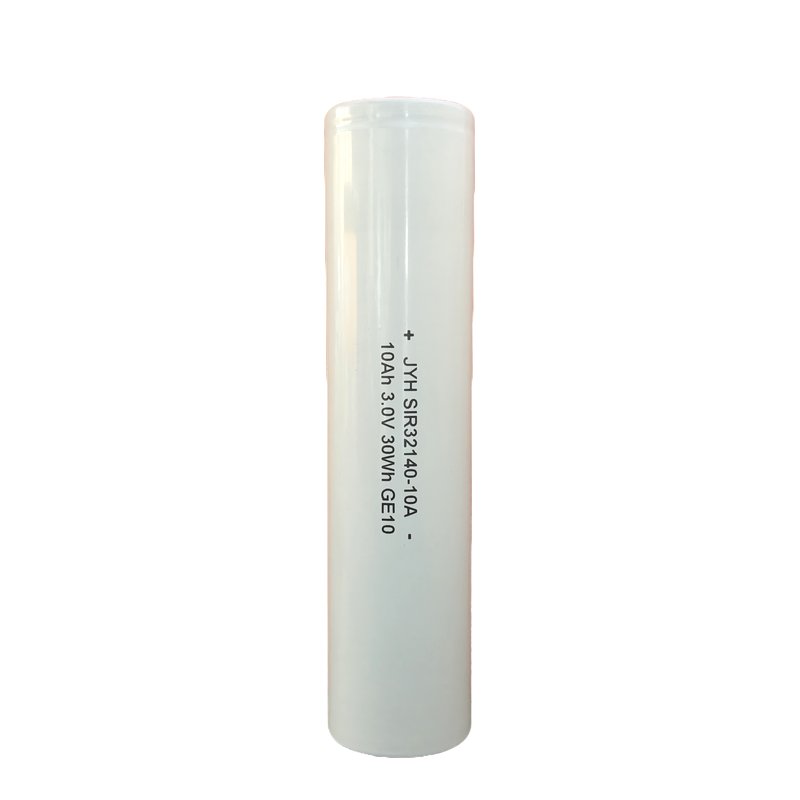

The SIR32140-10A is a groundbreaking sodium-ion battery delivering 10,000mAh capacity with unparalleled safety and environmental advantages. Designed for large-scale energy applications, it combines non-flammable chemistry with exceptional -40℃ to 60℃ operational range while eliminating lithium supply chain risks.
| Model | SIR32140-10A |
| IEC Designation | IXR34/141 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 10000mAh |
| Typical Capacity | 10200mAh after standard charge and standard discharge |
| Minimum Capacity | 9500mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 5000mA charge to 3.95V, then constant voltage at 3.95V charge till current decline to ≤200mA |
| Fast Charge | Constant current at 10000mA charge to 3.95V, then constant voltage at 3.95V charge till current decline to ≤200mA |
| Standard Discharge | 2000mA to 1.5V |
| Fast Discharge | 10000mA to 1.5V |
| Maximum Continuous Charge Current/Voltage | 1000mA to 3.65V (-10℃ to 0℃) 5000mA to 3.95V (0℃ to 15℃) 10000mA to 3.95V (15℃ to 45℃) 5000mA to 3.95V (45℃ to 55℃) |
| Maximum Continuous Discharge Current | 30000mA |
| Operating Temperature | Charge -10℃ to 55℃ Discharge -40℃ to 60℃ |
| Storage Temperature | <1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 270g |
